Asus P8H61-I User Manual

ASUS P8H61-I 1-14
4. Intel
®
H61 Serial ATA 3.0Gb/s connectors (7-pin SATA3G_1/2/3/4 [blue])
These connectors connect to Serial ATA 3.0 Gb/s hard disk drives and optical drives via
Serial ATA 3.0 Gb/s signal cables.
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXP2
RSATA_RXN2
GND
GND
RSATA_TXP3
RSATA_TXN3
GND
RSATA_RXP3
RSATA_RXN3
GND
GND
RSATA_TXP4
RSATA_TXN4
GND
RSATA_RXP4
RSATA_RXN4
GND
SATA1
SATA2
SATA3
SATA4
GND RSATA_RXN1 RSATA_RXP1 GND RSATA_TXN1 RSATA_TXP1 GND
P8H61-I

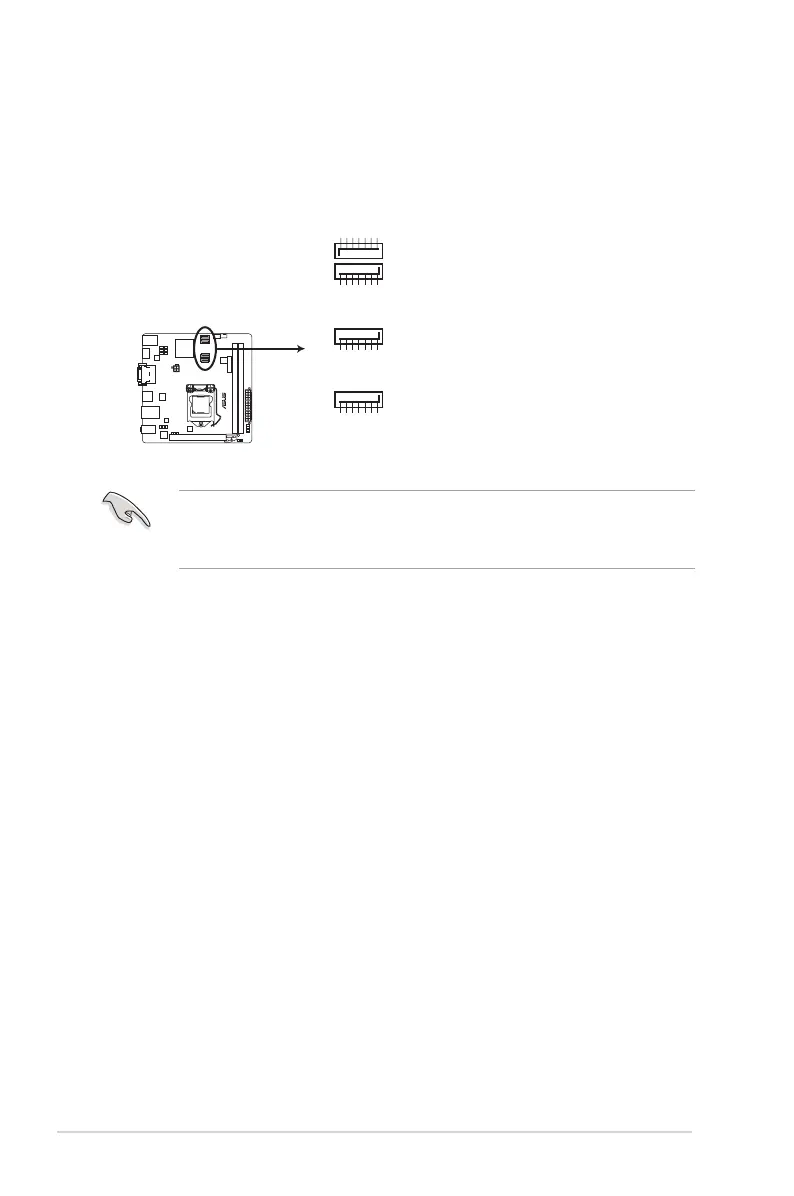

P8H61-I SATA connectors
• When using hot-plug and NCQ, set the SATA Mode item in the BIOS to [AHCI Mode].
See section 2.5.4 SATA Conguration for details.
• Install the Windows
®
XP Service Pack 3 or later version before using Serial ATA.

Asus P8H61-I Specifications

General

Form Factor	Mini ITX
Chipset	Intel H61
CPU Socket	LGA 1155
Memory Slots	2 x DIMM
Maximum Memory	16GB
Memory Type	DDR3
SATA Ports	4 x SATA 3Gb/s
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
Video Outputs	1 x HDMI, 1 x DVI-D
RAID Support	No
Memory Standard	DDR3 1333/1066 MHz
Expansion Slots	1 x PCIe 2.0 x16
USB Ports	8 x USB 2.0
LAN	Realtek 8111E, 1 x Gigabit LAN Controller
