1-6
Chapter 1: Product introduction

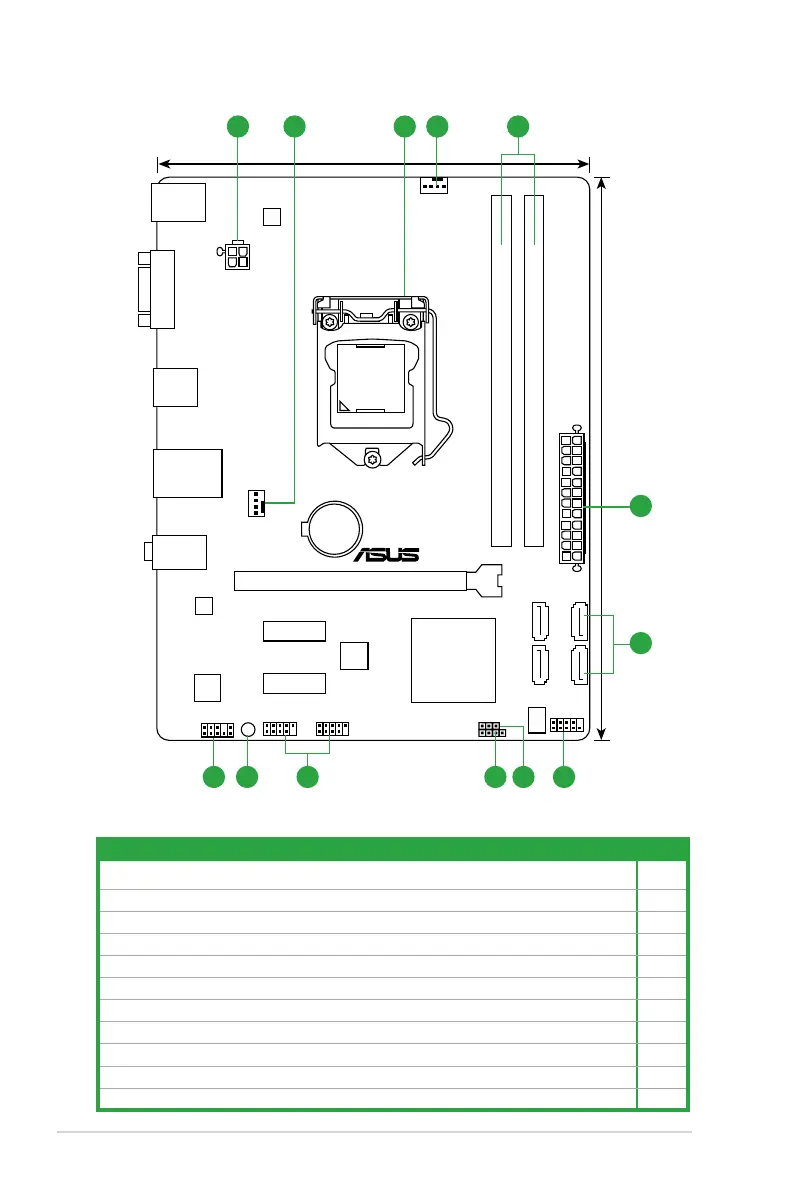

1.3.3 Motherboard layout
PCIEX16
PCIEX1_2
USB56 USB910
F_PANEL
SPEAKER
CLRTC
AAFP
ATX12V
EATXPWR
CPU_FAN
CHA_FAN
Lithium Cell
CMOS Power
Super
I/O
ALC
887
RTL
8111F
EPU
64Mb
BIOS
SB_PWR
22.6cm (8.9in)
DDR3 DIMM_A1 (64bit, 240-pin module)
LGA1155
DDR3 DIMM_B1 (64bit, 240-pin module)
SATA3G_2SATA3G_4
SATA3G_1SATA3G_3
AUDIO
KBMS
LAN_USB12
USB34
17.3cm (6.8in)
VGA
Intel
®
H61
PCIEX1_1
21 3 42
1
689 71011
5
P8H61-M LK R2.0
1.3.4 Layout contents
Connectors/Jumpers/Slots/LED Page
1. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V) 1-21
2. CPU and chassis fan connectors (4-pin CPU_FAN and 4-pin CHA_FAN) 1-22
3. Intel
®
LGA1155 CPU socket 1-7
4. DDR3 DIMM slots 1-12
5. Intel
®
H61 Serial ATA 3.0Gb/s connectors (7-pin SATA3G_1/2/3/4) 1-24
6. System panel connector (10-1 pin PANEL) 1-25
7. Clear RTC RAM (3-pin CLRTC) 1-18
8. Speaker connector (4-pin SPEAKER) 1-21
9. USB 2.0 connectors (10-1 pin USB56, USB78) 1-23
10. Standby power LED (SB_PWR) 1-4
11. Front panel audio connector (10-1 pin AAFP) 1-20

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Asus P8H61-M LK R2.0 and is the answer not in the manual?

Asus P8H61-M LK R2.0 Specifications

General IconGeneral
Non-ECCYes
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots2
Supported memory typesDDR3-SDRAM
Maximum internal memory16 GB
Supported memory clock speeds1066, 1333 MHz
Supported memory module capacities2GB, 4GB, 8GB
Processor socketLGA 1155 (Socket H2)
Processor manufacturerIntel
Compatible processor seriesIntel Celeron, Intel Pentium
Maximum number of SMP processors1
Number of SATA II connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chipRealtek ALC887
Component forPC
Power source typeATX
Motherboard chipsetIntel® H61
Audio output channels7.1 channels
Motherboard form factormicro ATX
Supported storage drive interfacesSATA II
Maximum resolution2048 x 1536 pixels
Maximum graphics card memory1024 MB
Parallel processing technology supportNot supported
PCI Express slots version2.0, 3.0
PCI Express slots quantity3
Cables includedSATA
LAN controllerRealtek RTL8111F
Networking featuresGigabit Ethernet
BIOS typeEFI
ACPI version2.0a
BIOS memory size64 Mbit
Weight and Dimensions IconWeight and Dimensions
Depth173 mm
Width226 mm
