Asus P8H61-M LX PLUS Quick Start Guide

10 ASUS P8H61-M LX Series

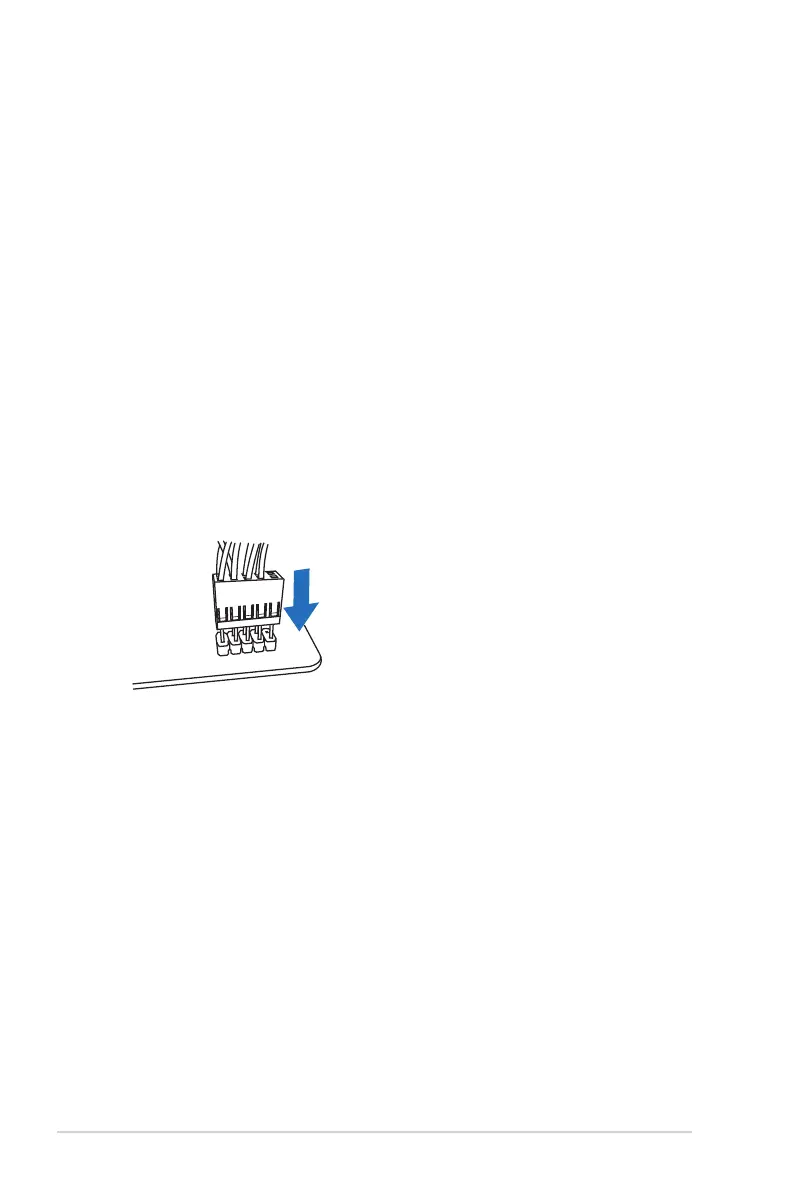

Step 6
Installer les connecteurs système
Installieren des Systemtafelanschlusses
Installare i connettori del pannello del sistema
Instalar conectores del panel del sistema
Установка соединений системной панели
Instale os conectores do painel do sistema
Instalacja złączy panela systemu
Instalace konektorů panelu systému
Szerelje be a rendszerpanel csatlakozóit
Инсталирайте конекторите на ситемния панел
Instalaţi conectorii pentru placa de bază
Instalirajte sistemske priključke
Sistem paneli konnektörlerini takın
Жүйе тақтасының қосқыштарын орнатыңыз

Asus P8H61-M LX PLUS Specifications

General

Form Factor	Micro ATX
Chipset	Intel H61
CPU Socket	LGA 1155
Memory Slots	2 x DIMM
Memory Type	DDR3
Maximum Memory	16GB
PCI Express x16	1
PCI Express x1	2
SATA Ports	4 x SATA 3Gb/s
Audio Chipset	Realtek ALC887
Audio	Realtek ALC887
LAN	Realtek 8111E
Video Outputs	VGA
Power Connector	24-pin ATX
USB Ports	8 (4 on back panel, 4 via headers)
