1-9Chapter 1: Product introduction

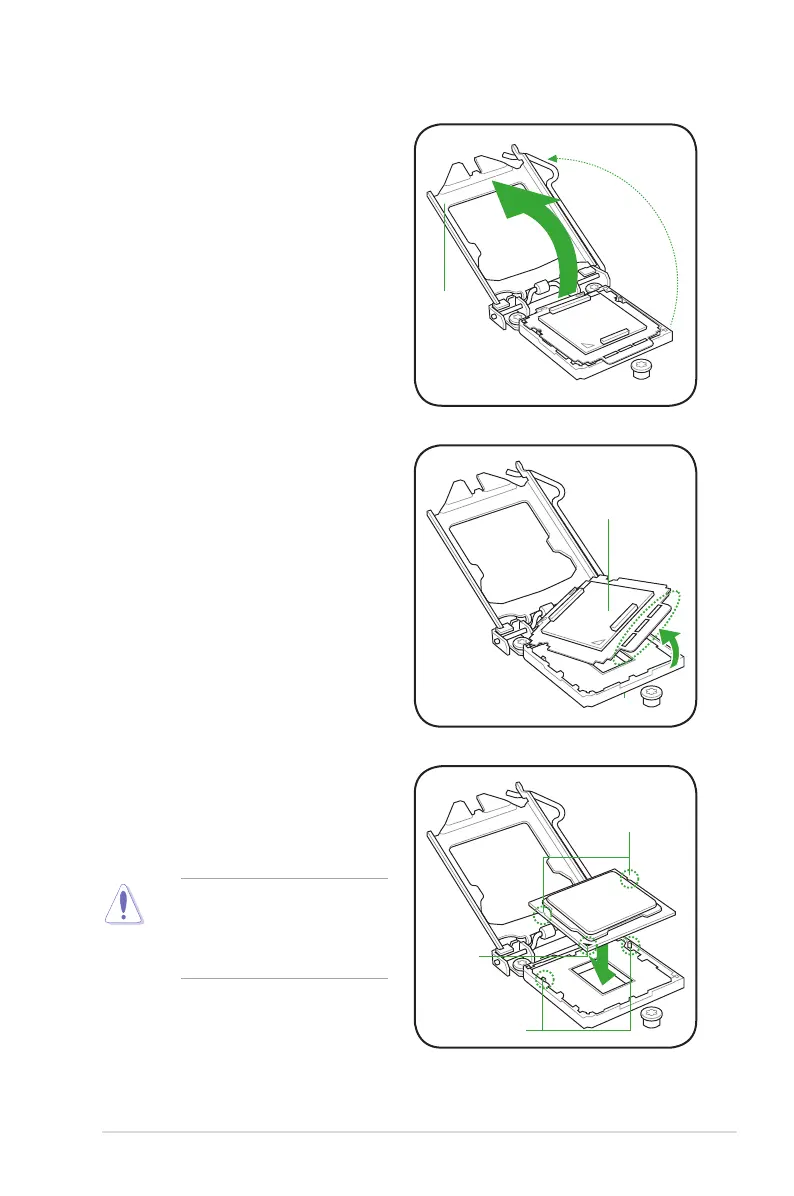

3. Lift the load lever in the direction of the

arrow until the load plate is completely

lifted.

Load plate

4. Remove the PnP cap from the CPU

socket by lifting the tab only.

The CPU ts in only one correct

orientation. DO NOT force the CPU

into the socket to prevent bending

the connectors on the socket and

damaging the CPU!

Gold

triangle

mark

Alignment keys

CPU notches

5. Position the CPU over the socket,

ensuring that the gold triangle is on the

bottom-left corner of the socket, and

then t the socket alignment keys into

the CPU notches.

PnP cap
