ASUS P8H61-M LX Series1-10

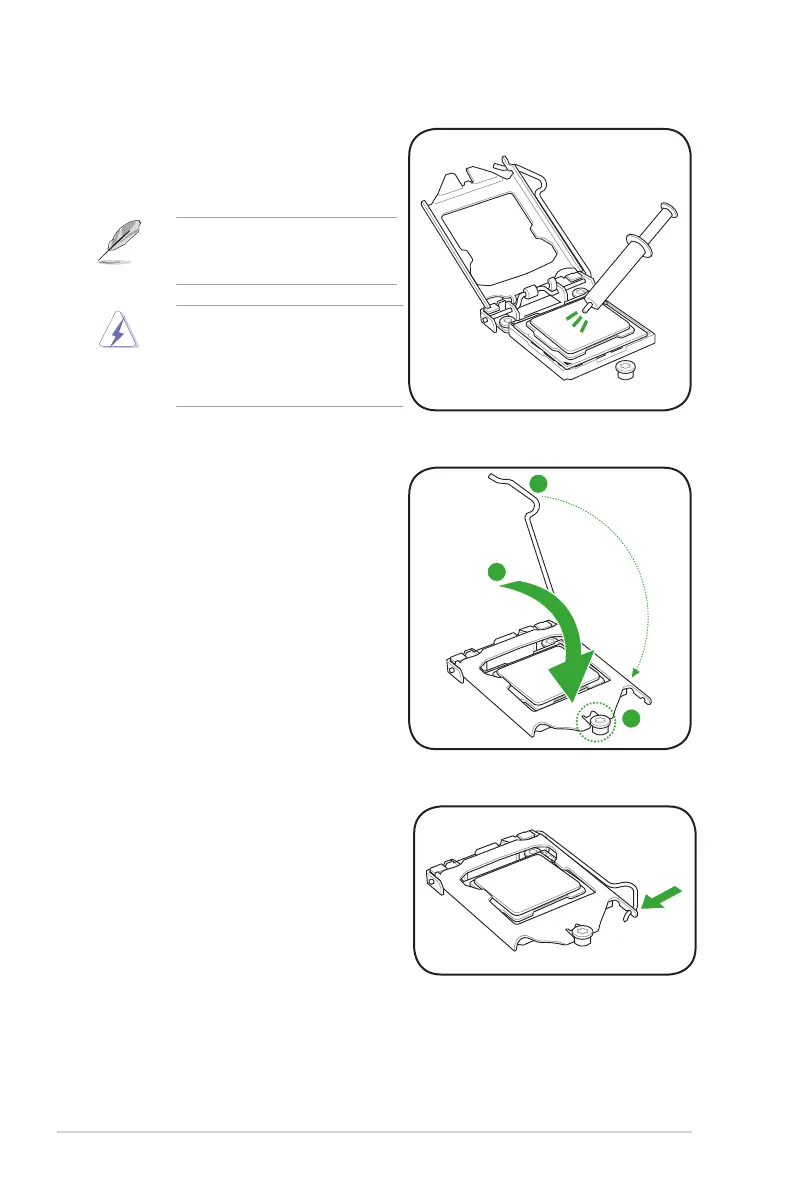

7. Close the load plate (A), and then push
down the load lever (B), ensuring that
the front edge of the load plate slides
under the retention knob (C).
B
A
C
8. Insert the load lever under the retention
tab.
6. Apply some Thermal Interface Material
to the exposed area of the CPU that the
heatsink will be in contact with, ensuring
that it is spread in an even thin layer.
Some heatsinks come with pre-
applied thermal paste. If so, skip this
step.
The Thermal Interface Material is
toxic and inedible. DO NOT eat it. If
it gets into your eyes or touches your
skin, wash it off immediately, and seek
professional medical help.

Asus P8H61-M LX PLUS Specifications

General

Form Factor	Micro ATX
Chipset	Intel H61
CPU Socket	LGA 1155
Memory Slots	2 x DIMM
Memory Type	DDR3
Maximum Memory	16GB
PCI Express x16	1
PCI Express x1	2
SATA Ports	4 x SATA 3Gb/s
Audio Chipset	Realtek ALC887
Audio	Realtek ALC887
LAN	Realtek 8111E
Video Outputs	VGA
Power Connector	24-pin ATX
USB Ports	8 (4 on back panel, 4 via headers)
