Asus P8H61-M LX3 PLUS R2.0 Quick Start Guide

ASUS P8H61-M LX3 R2.0 Series 9

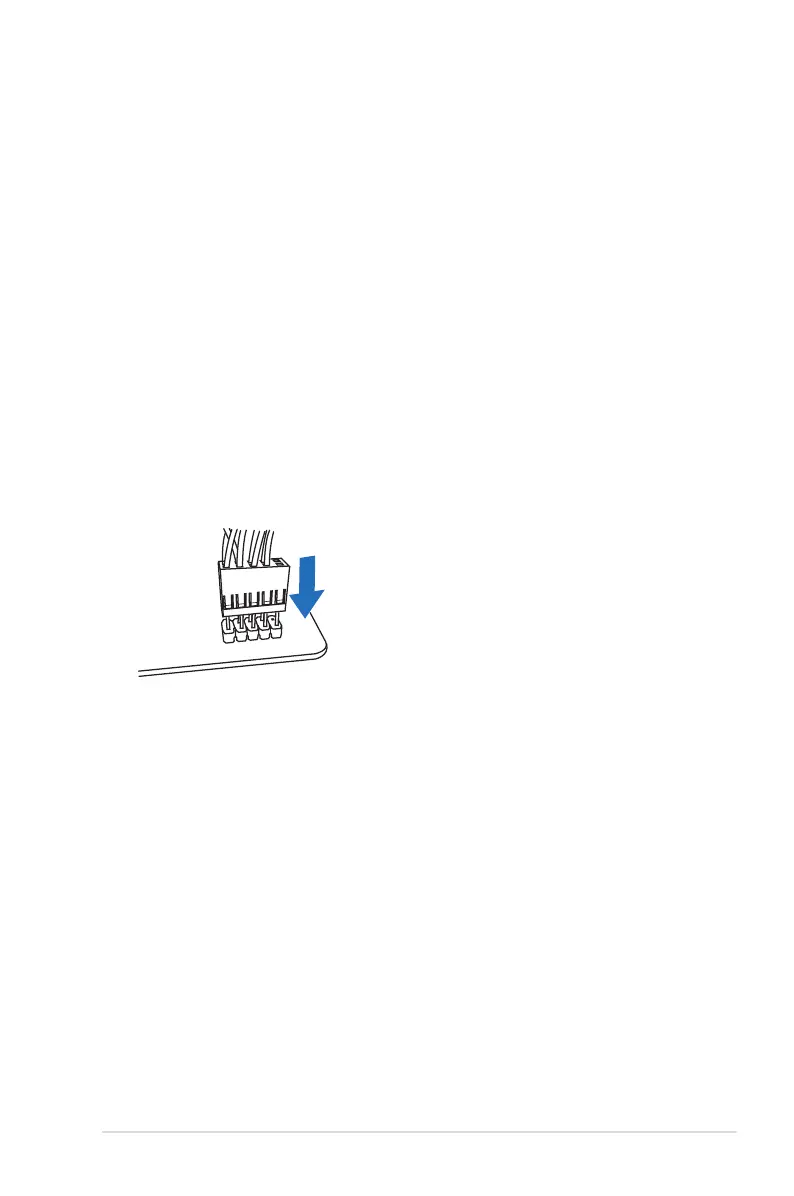

Step 6
Installer les connecteurs système
Installieren des Systemtafelanschlusses
Installare i connettori del pannello del sistema
Instalar conectores del panel del sistema
Установка соединений системной панели
Instale os conectores do painel do sistema
Instalacja złączy panela systemu
Instalace konektorů panelu systému
Szerelje be a rendszerpanel csatlakozóit
Инсталирайте конекторите на ситемния панел
Instalaţi conectorii pentru placa de bază
Instalirajte sistemske priključke
Sistem paneli konnektörlerini takın
Жүйе тақтасының қосқыштарын орнатыңыз

Asus P8H61-M LX3 PLUS R2.0 Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600, 1866, 2000, 2133, 2200 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel® Celeron®
Maximum number of SMP processors	1
USB 2.0 connectors	3
Number of SATA II connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
DVI-D ports quantity	00
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H61
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Supported storage drive interfaces	SATA II
On-board graphics card	No
Parallel processing technology support	Not supported
PCI Express slots version	2.0, 3.0
Cables included	SATA
LAN controller	Realtek RTL8111F
Networking features	10/100/1000 Mb/s
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	172 mm
Width	226 mm
