Asus P8H61-MX R2.0 User Manual

Chapter 2: BIOS information 2-11
• The conguration options for this section vary depending on the CPU and DIMM model
you installed on the motherboard.
• The item Ai Overclock Tuner will be displayed on the Ai Tweaker menu when an X.M.P.
memory module is installed on the motherboard

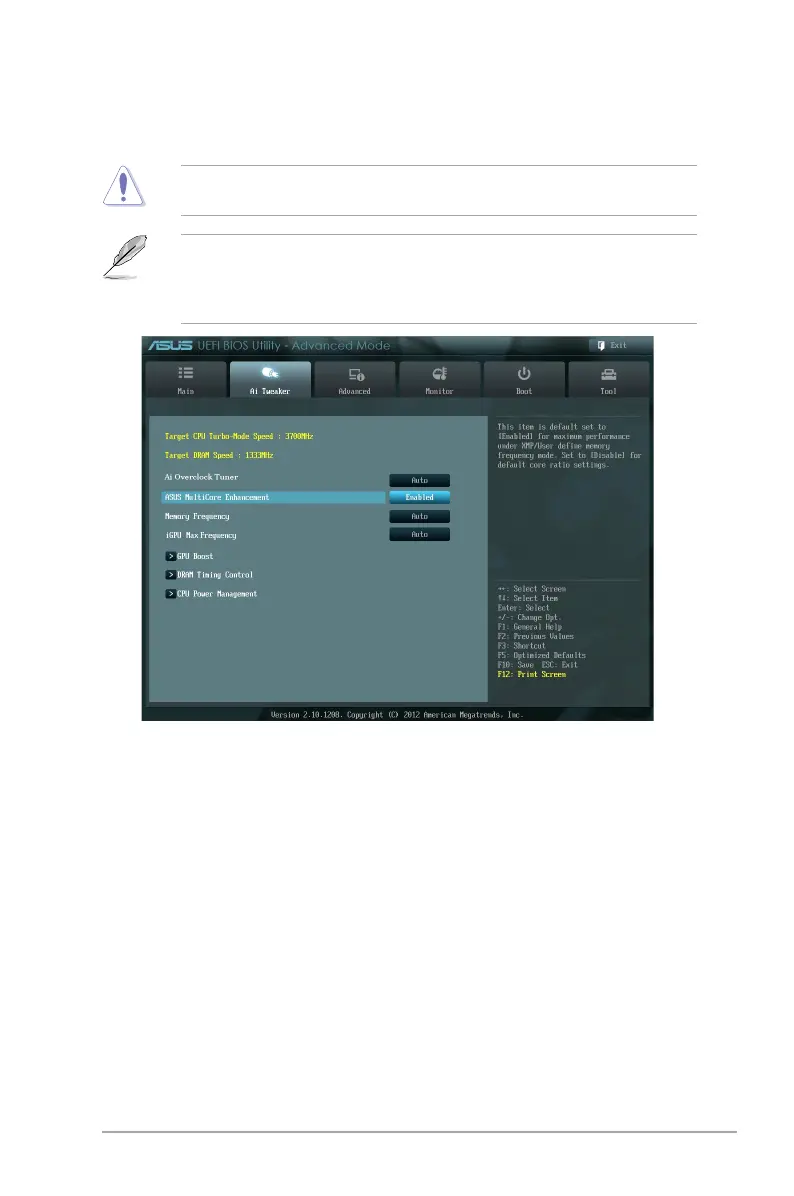

2.4 Ai Tweaker menu
The Ai Tweaker menu items allow you to congure overclocking-related items.
Be cautious when changing the settings of the Ai Tweaker menu items. Incorrect eld
values can cause the system to malfunction.
Target CPU Turbo-Mode Speed : xxxxMHz
Displays the current CPU Turbo-Mode speed.
Target DRAM Speed : xxxxMHz
Displays the current DRAM speed.
2.4.1 Ai Overclock Tuner [Auto]
Allows you to select the CPU overclocking options to achieve the desired CPU internal
frequency. Conguration options:
[Auto] Loads the optimal settings for the system.
[X.M.P.] If you install memory modules supporting the eXtreme Memory Prole
(X.M.P.) Technology, choose this item to set the proles supported by your
memory modules for optimizing system performance.

Asus P8H61-MX R2.0 Specifications

General

ECC	No
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600, 1800, 2000, 2133, 2200 MHz
System bus rate	5 GT/s
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Maximum number of SMP processors	1
Number of SATA II connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
Headphone outputs	3
USB 2.0 ports quantity	6
Audio chip	VIA VT1708S
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H61
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Supported storage drive interfaces	SATA, SATA II
Graphics card	HD Graphics
Maximum resolution	2048 x 1536 pixels
Parallel processing technology support	Not supported
PCI Express slots version	2.0, 3.0
PCI Express configurations	1x16
Special features	2 x Thunderbolt
Cables included	SATA
LAN controller	Realtek RTL8111F
Networking features	Gigabit LAN
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	183 mm
Width	244 mm
