Asus P8H67-I Deluxe User Manual

ASUS P8H67-I Series 1-12
4. Intel
®

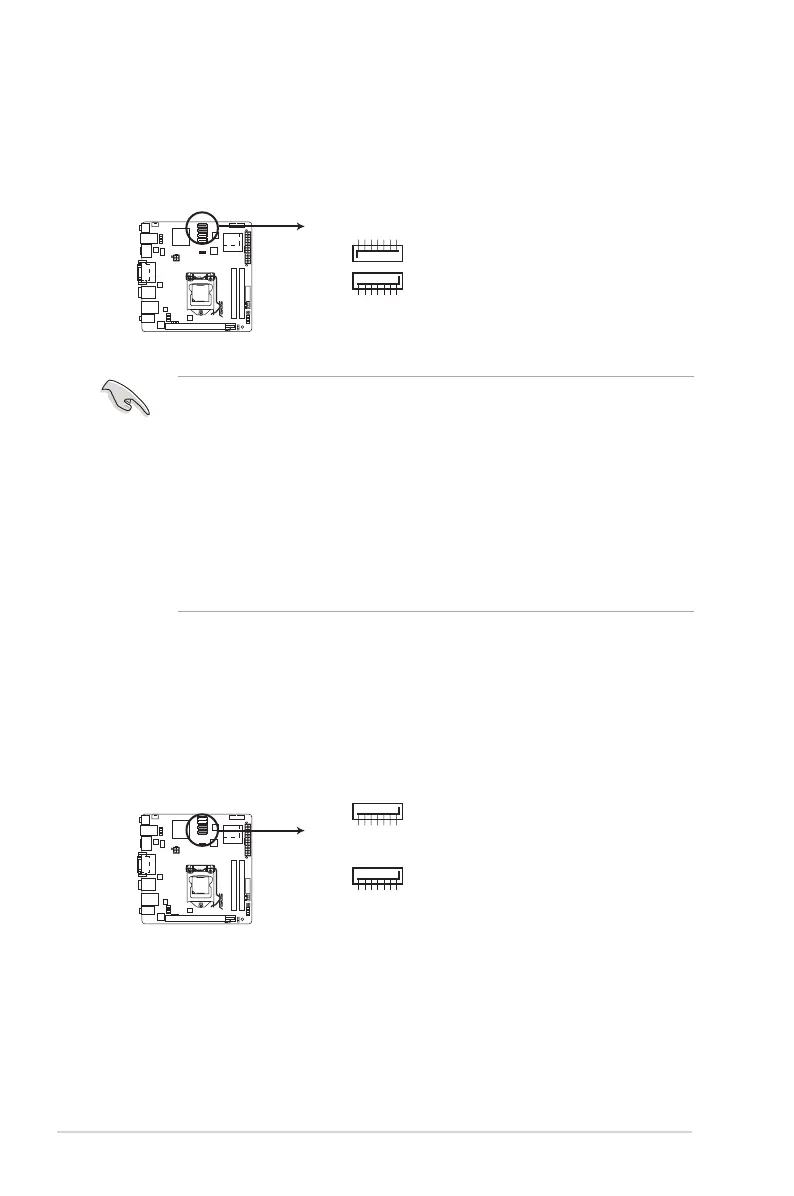

H67 Serial ATA 6.0Gb/s connectors (7-pin SATA6G_1/2 [gray])
These connectors connect to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0
Gb/s signal cables.
• These connectors are set to [IDE Mode] by default. In IDE mode, you can connect Serial
ATA boot/data hard disk drives to these connectors. If you intend to create a Serial ATA
RAID set using these connectors, set the SATA Mode item in the BIOS to [RAID Mode].
See section 2.5.4 SATA Conguration for details.
• Before creating a RAID set, refer to the RAID Supplementary Guide included in the
folder named Manual in the support DVD.
• You must install Windows
®
XP Service Pack 3 or later version before using Serial ATA
hard disk drives. The Serial ATA RAID feature (RAID 0, 1, 5, and 10) is available only if
you are using Windows
®
XP SP3 or later version.
• When using hot-plug and NCQ, set the SATA Mode item in the BIOS to [AHCI Mode].
See section 2.5.4 SATA Conguration for details.
5. Intel
®
H67 Serial ATA 3.0Gb/s connectors (7-pin SATA3G_1/2 [blue])
These connectors connect to Serial ATA 3.0 Gb/s hard disk drives and optical drives via
Serial ATA 3.0 Gb/s signal cables.
If you installed Serial ATA hard disk drives, you can create a RAID 0, 1, 5, and 0+1(10)
congurations with the Intel
®
Matrix Storage Technology through the onboard Intel
®
H67 chipset.
SATA6G_2
SATA6G_1
GND z
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXP2
RSATA_RXN2
GND
GND RSATA_RXN1 RSATA_RXP1 GND RSATA_TXN1 RSATA_TXP1 GND
P8H67-I DELUXE
P8H67-I DELUXE Intel
®
SATA 6.0Gb/s connectors
SATA3G_2
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXP2
RSATA_RXN2
GND
SATA3G_1
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXP1
RSATA_RXN1
GND
P8H67-I DELUXE
P8H67-I DELUXE Intel
®
SATA 3.0Gb/s connectors
