ASUS P8H67-V 1-25
3. CPU, Chassis, and Power fan connectors (4-pin CPU_FAN, 3-pin PWR_FAN, 4-pin
CHA_FAN1 and CHA_FAN2)
Connect the fan cables to the fan connectors on the motherboard, making sure that the
black wire of each cable matches the ground pin of the connector.
DO NOT forget to connect the fan cables to the fan connectors. Insufcient air ow inside
the system may damage the motherboard components. They are not jumpers! DO NOT
place jumper caps on the fan connectors.

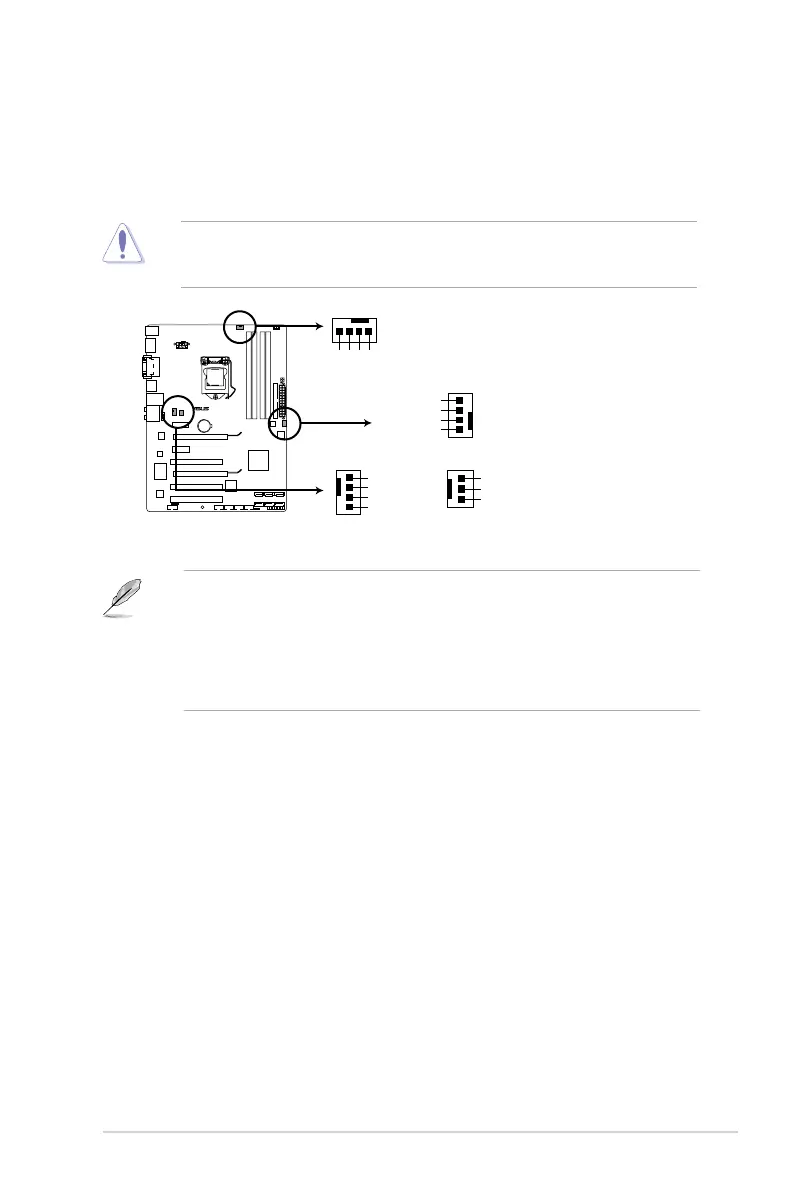

P8H67-V
P8H67-V fan connectors
CPU_FAN
CHA_FAN1
CHA_FAN2
CPU FAN PWM
CPU FAN IN
CPU FAN PWR
GND
CPU FAN PWM
CPU FAN IN
CPU FAN PWR
GND
GND
CPU FAN PWR
CPU FAN IN
CPU FAN PWM
GND
+12V
Rotation
PWR_FAN
• The CPU_FAN connector supports a CPU fan of maximum 2A (24 W) fan power.
• Only the CPU_FAN, CHA_FAN1 and CHA_FAN2 connectors support the ASUS Fan
Xpert feature.
• If you install two VGA cards, we recommend that you plug the rear chassis fan cable
to the motherboard connector labeled CHA_FAN1 or CAH_FAN 2 for better thermal
environment.
