ASUS P8H67 1-19

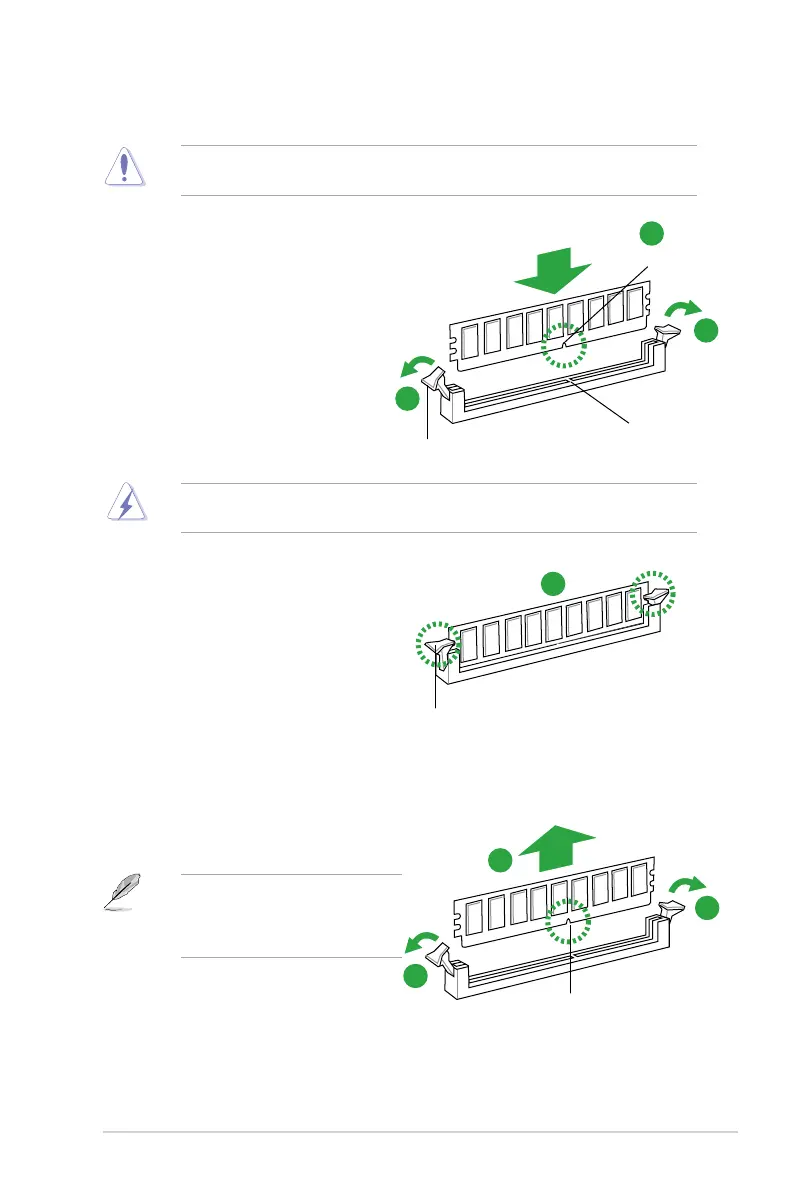

1.7.3 Installing a DIMM
Unplug the power supply before adding or removing DIMMs or other system components.
Failure to do so can cause severe damage to both the motherboard and the components.
1. Press the retaining clips outward to
unlock a DIMM socket.
2. Align a DIMM on the socket such that
the notch on the DIMM matches the
DIMM slot key on the socket.
Unlocked retaining clip
1
DIMM notch
2
1
A DIMM is keyed with a notch so that it ts in only one direction. DO NOT force a DIMM into
a socket in the wrong direction to avoid damaging the DIMM.
3. Firmly insert the DIMM into the socket
until the retaining clips snap back in place
and the DIMM is properly seated.
Locked Retaining Clip
3
1.7.4 Removing a DIMM
To remove a DIMM:
1. Simultaneously press the retaining clips
outward to unlock the DIMM.
2. Remove the DIMM from the socket.
Support the DIMM lightly with your
ngers when pressing the retaining
clips. The DIMM might get damaged
when it ips out with extra force.
DIMM notch
1
1
2
DIMM slot key

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Asus P8H67 and is the answer not in the manual?

Asus P8H67 Specifications

General IconGeneral
Form FactorATX
ChipsetIntel H67
SocketLGA 1155
Memory Slots4 x DIMM
Maximum Memory32GB
Memory TypeDDR3
PCI Express x1 Slots2
PCI Slots3
SATA 6Gb/s2
SATA 3Gb/s4
USB 3.0 Ports2
USB 2.0 Ports12
PCI Express x16 Slots1
Onboard VideoYes
LANRealtek 8111E
AudioRealtek ALC887
RAID SupportYes (RAID 0, 1, 5, 10)
