2.1.3 CPU heatsink and fan assembly installation
Apply the Thermal Interface Material to the
CPU heatsink and CPU before you install
the heatsink and fan if necessary.

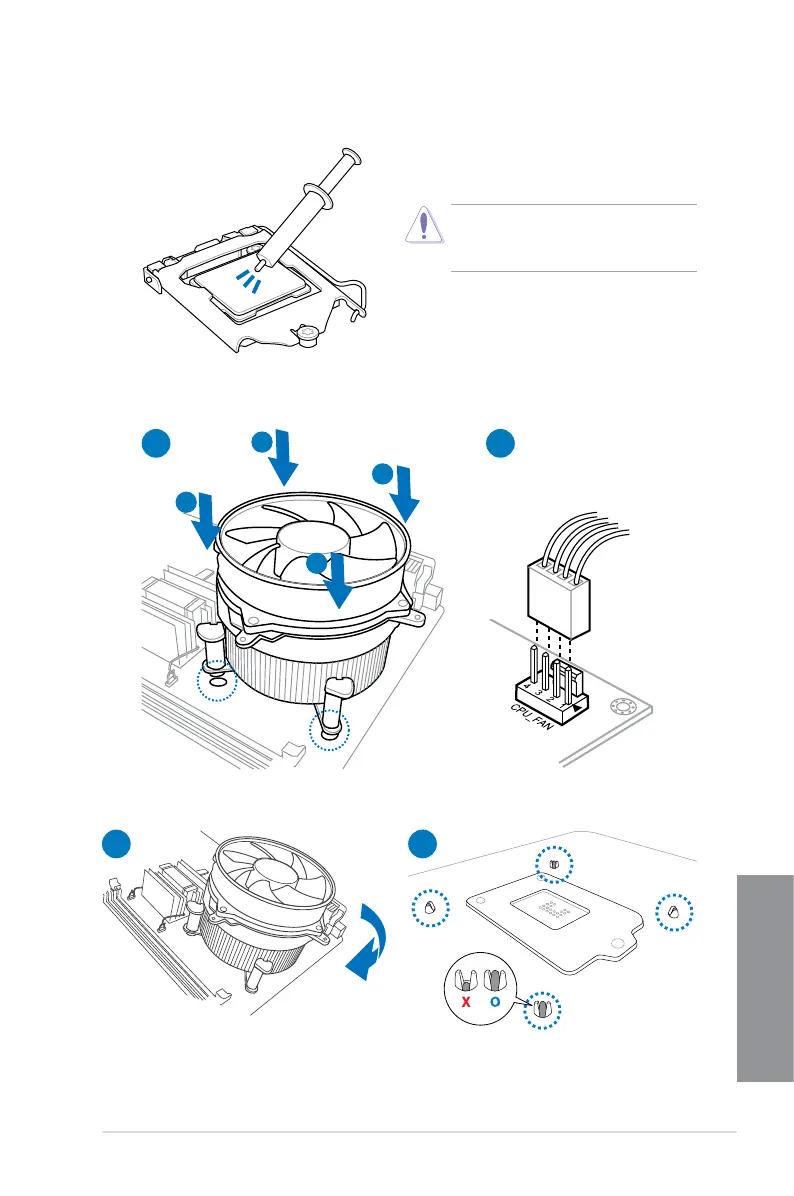

To install the CPU heatsink and fan assembly
2
B
B
A
A
1
3 4
