ASUS PRIME B350M-E
1-11

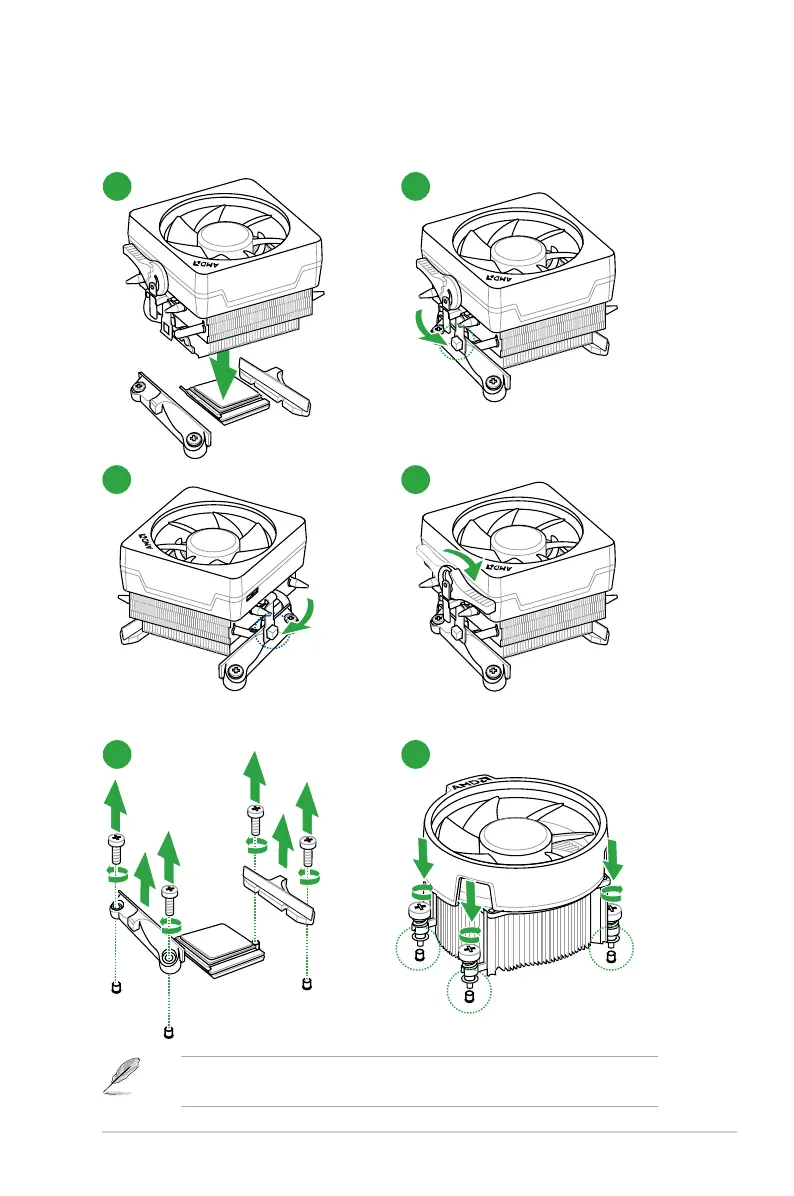

Installing the CPU heatsink and fan assembly
Type 2
Type 1
1
1
3
2
2
4
Removethescrewsandtheretentionmoduleonly.Donotremovetheplateonthe
bottom.
