Asus PRIME H510M-E User Manual

1-1
Product Introduction
1.1 Before you proceed
Take note of the following precautions before you install motherboard components or change
any motherboard settings.
• Unplug the power cord from the wall socket before touching any component.
• Before handling components, use a grounded wrist strap or touch a safely grounded
object or a metal object, such as the power supply case, to avoid damaging them due
to static electricity.
• Before you install or remove any component, ensure that the ATX power supply is
switched off or the power cord is detached from the power supply. Failure to do so
may cause severe damage to the motherboard, peripherals, or components.
Unplug the power cord before installing or removing the motherboard. Failure to do so can
cause you physical injury and damage motherboard components.

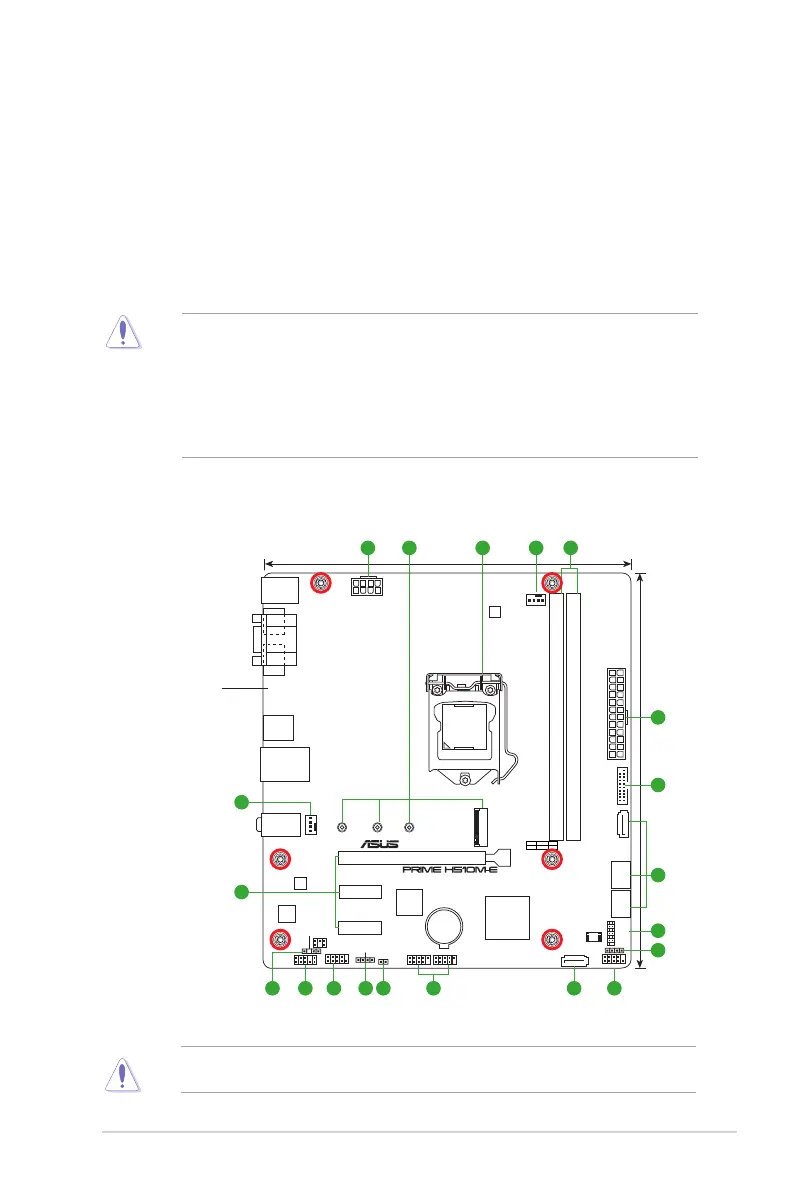

1.2 Motherboard overview
Place this
side towards
the rear of the
chassis
HDMI
DP
VGA
M.2(SOCKET3)
PCIE SATA IRST
3.0 X4 V X
PCIEX16
PCIEX1_1
PCIEX1_2
SPEAKER
CLRTC
RGB_HEADER
F_PANEL
SPDIF_OUT
USB78 USB56
TPM
AAFP
COM
ATX_PWR
CHA_FAN
CPU_FAN
BATTERY
Super
I/O
DIGI+
VRM
22.6cm(8.9in)
DDR4 DIMM_A1* (64bit, 288-pin module)
LGA1200
2280 2260 2242
M.2(SOCKET3)
DDR4 DIMM_B1* (64bit,288-pin module)
U32G1_12
AUDIO
KBMS
ATX_12V
LAN_USB914
U32G1_34
21.1cm(8.3in)
128Mb
BIOS
SATA6G_4
SATA6G_1
SATA6G_2SATA6G_3
Intel
®
H510
COM_DEBUG
Ethernet
Audio
CODEC
65 1 24
17711101314 12
5
8
7
15
16
3
4
9
1
ASUS PRIME H510M-E
Chapter 1: Product Introduction

Asus PRIME H510M-E Specifications

General

Processor socket	LGA 1200 (Socket H5)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium G
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 2933, 3200 MHz
Supported storage drive types	HDD & SSD
Number of storage drives supported	5
Supported storage drive interfaces	M.2, SATA III
Maximum resolution	4096 x 2304 pixels
Parallel processing technology support	Not supported
Number of SATA III connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Headphone outputs	3
USB connector type	USB Type-A
DisplayPort version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Wi-Fi	No
LAN controller	Intel® I219-V
Ethernet interface type	Gigabit Ethernet
Audio chip	Realtek ALC887 / Realtek ALC897
Component for	PC
Motherboard chipset	Intel H510
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10 x64
BIOS type	UEFI AMI
BIOS memory size	128 Mbit
Cables included	SATA
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	211 mm
Width	226 mm
