2.1 Managing and updating your BIOS
Save a copy of the original motherboard BIOS le to a USB ash disk in case you need
to restore the BIOS in the future. Copy the original motherboard BIOS using the ASUS
Update utility.
2.1.1 EZ Update
EZ Update is a utility that allows you to automatically update your motherboard’s softwares,
drivers and the BIOS version easily. With this utility, you can also manually update the saved
BIOS and select a boot logo when the system goes into POST.

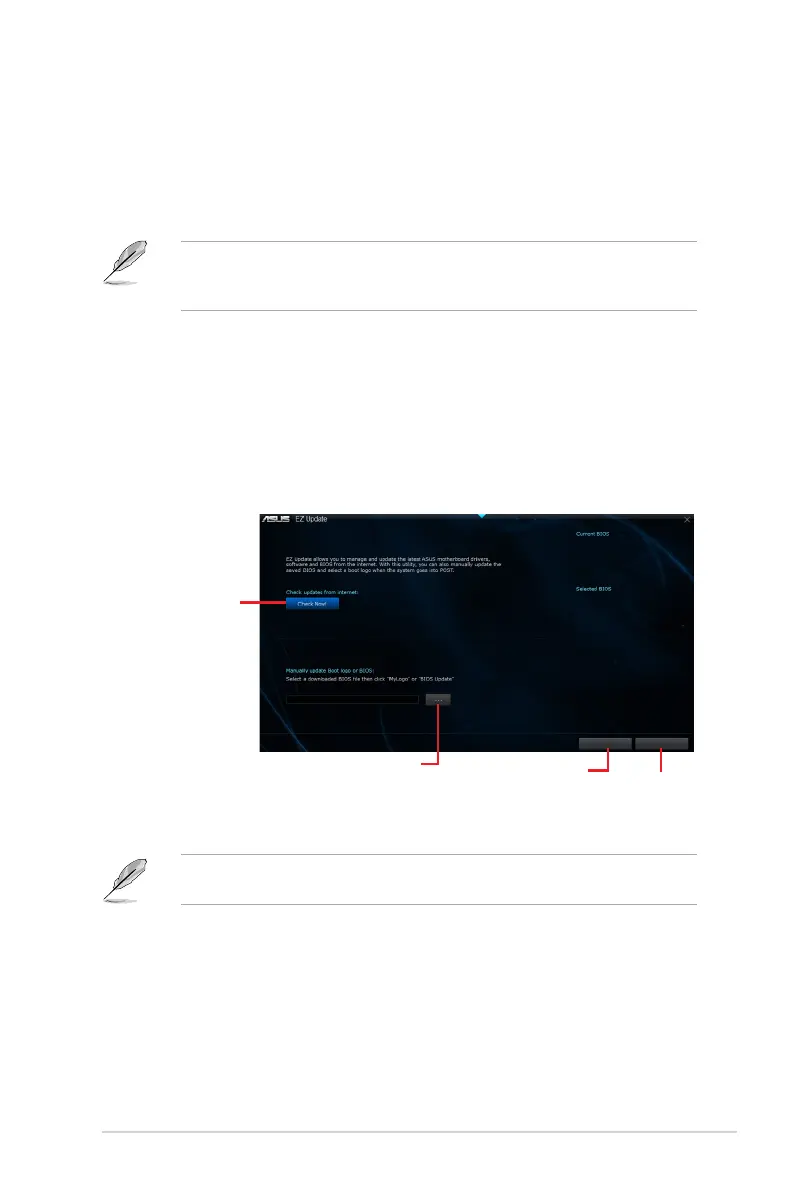

To launch EZ Update, click EZ Update on the AI Suite 3 main menu bar.
BIOS Information
2
EZ Update requires an Internet connection either through a network or an ISP (Internet
Service Provider).
Model Name: Pro WS X570-ACE
version: 0302
Release Date: 05/22/2019
Click to automatically
update your
motherboard’s
driver, software and
firmware
Click to find and
select the BIOS
from file
Click to select a
boot logo
Click to update
the BIOS
Chapter 2: BIOS Information
ASUS Pro WS X570-ACE
2-1

Asus Pro WS X570-ACE Specifications

General

Processor socket	Socket AM4
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 3 2nd Gen, AMD Ryzen 3 3rd Gen, AMD Ryzen 5 2nd Gen, AMD Ryzen 5 3rd Gen, AMD Ryzen 7 2nd Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 9 3rd Gen
ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	- MHz
RAID levels	0, 1, 10
Number of HDDs supported	6
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express 3.0, SATA III
Number of displays supported	2
Parallel processing technology support	2-Way SLI, 3-Way CrossFireX
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Peripheral (Molex) power connectors (4-pin)	1
HDMI version	1.4b
DisplayPort version	1.2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Weight	1000 g
Wi-Fi	No
LAN controller	Realtek RTL8117, Intel I211-AT
Ethernet interface type	Gigabit Ethernet
Audio chip	Realtek ALC S1200A
Cooling type	Active
Component for	PC
Motherboard chipset	AMD X570
Audio output channels	8.0 channels
Motherboard form factor	ATX
Number of mounting holes	9
Windows operating systems supported	Windows 10
BIOS type	UEFI AMI
ACPI version	6.0
BIOS memory size	256 Mbit
System Management BIOS (SMBIOS) version	3.2
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	244 mm
Width	305 mm
Height	77 mm
