ROG MAXIMUS XII APEX
2-13
Chapter 2

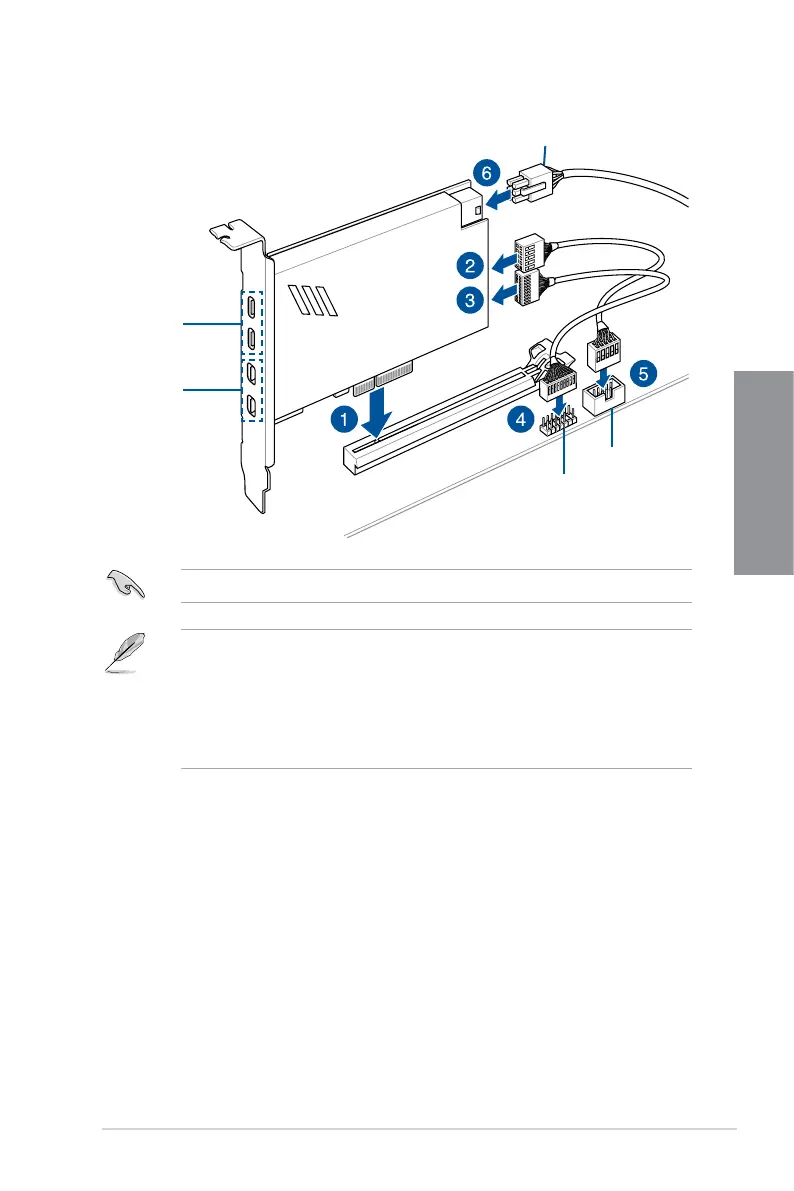

To install ThunderboltEX 3-TR card
Thunderbolt header
USB Type-C
®
port connects
to Thunderbolt
devices
MiniDP in port
connects to DP
out port on the
motherboard
or a VGA card
USB 2.0 header
6-pin PCIe power connector
Ensure to install the ThunderboltEX 3-TR card to a PCIe slot from PCH.
Step 6 is optional, please connect a 6-pin PCIe power connector when you wish to
use the USB Type-C
®
port Thunderbolt quick charge feature to charge a 5V or more
device. The ThunderboltEX 3-TR card can support quick charging up to 100W.
The TypeC_1 port can support up to 20V devices, and the TypeC_2 port can support
up to 9V devices when the 6-pin PCIe power connector is connected.
The Thunderbolt card is sold separately.
