ASUS TUF Z270 MARK 1
2-3
Chapter 2
2.1.2 Motherboard installation

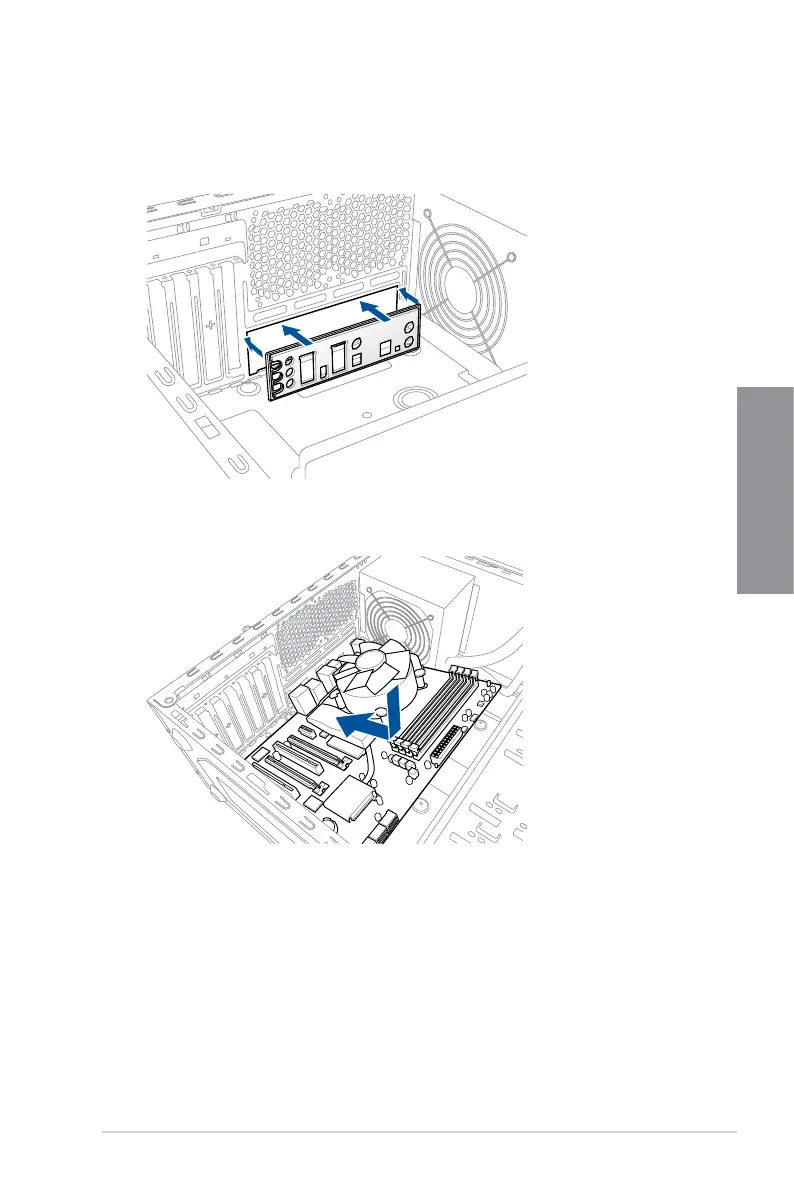

1. Install the ASUS Q-Shield to the chassis rear I/O panel.
2. Place the motherboard into the chassis, ensuring that its rear I/O ports are aligned to
the chassis’ rear I/O panel.
