Asus WS X299 SAGE User Manual

1-12
Chapter 1: Product Introduction
Chapter 1
1.1.7 Jumpers

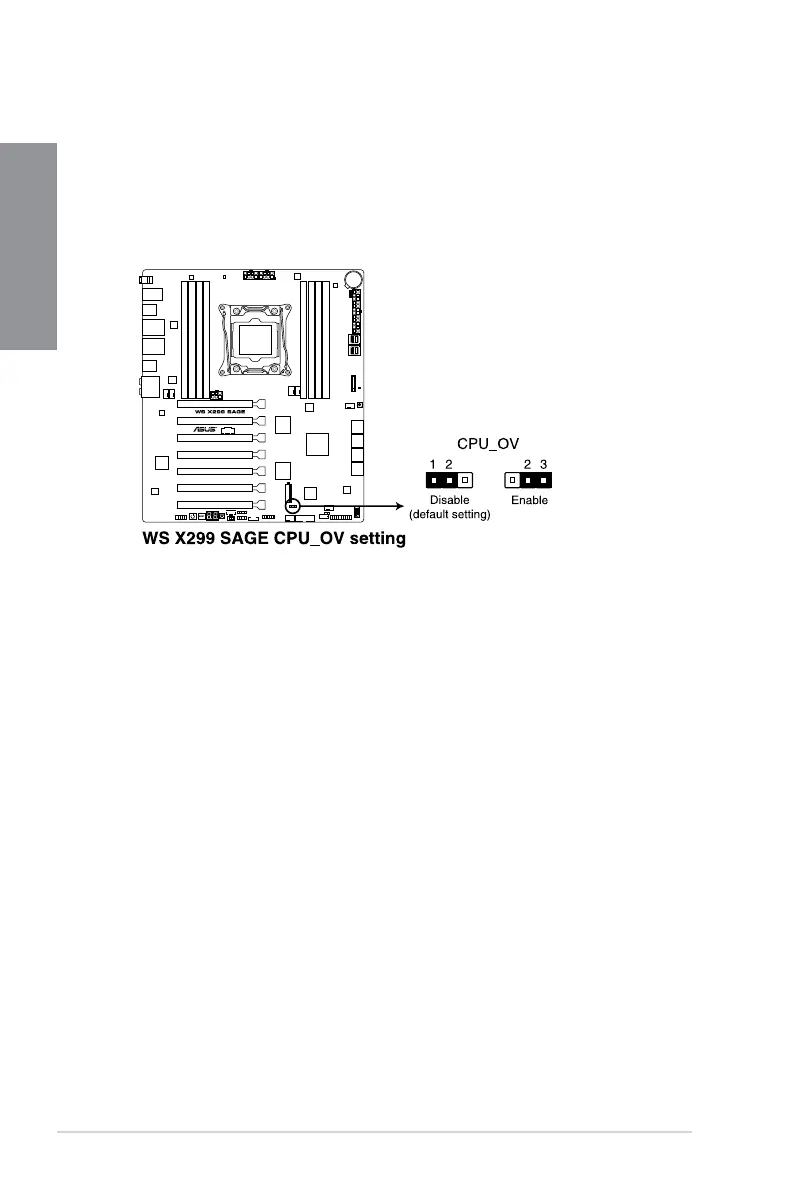

1. CPU Over Voltage jumper (3-pin CPU_OV)
TheCPUOverVoltagejumperallowsyoutosetahigherCPUvoltageforaexible
overclockingsystem,dependingonthetypeoftheinstalledCPU.TogainmoreCPU
voltagesetting,insertthejumpertopins2-3.TogobacktoitsdefaultCPUvoltage
setting,insertthejumpertopins1-2.

Asus WS X299 SAGE Specifications

General

USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	2
VGA (D-Sub) ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
EPS power connector (8-pin)	Yes
Number of SATA III connectors	8
PCI Express x16 slots	7
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2666, 3600, 4000, 4133, 4200 MHz
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA III
Wi-Fi	No
LAN controller	Intel I210-AT, Intel I219LM
Ethernet interface type	Gigabit Ethernet
Cables included	SATA
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	20 - 90 %
Parallel processing technology support	4-Way CrossFireX, 4-Way SLI
Motherboard chipset	Intel® X299
Audio output channels	7.1 channels
Motherboard form factor	SSI CEB
Processor socket	LGA 2066 (Socket R4)
Processor manufacturer	Intel
Compatible processor series	Intel® Core™ X-series
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	267 mm
Width	305 mm
