ASUS WS Z390 PRO

3-11

Chapter 3

3.2.5 EZ Tuning Wizard

EZ Tuning Wizard allows you to easily set RAID in your system using this feature.

Creating RAID

To create RAID:

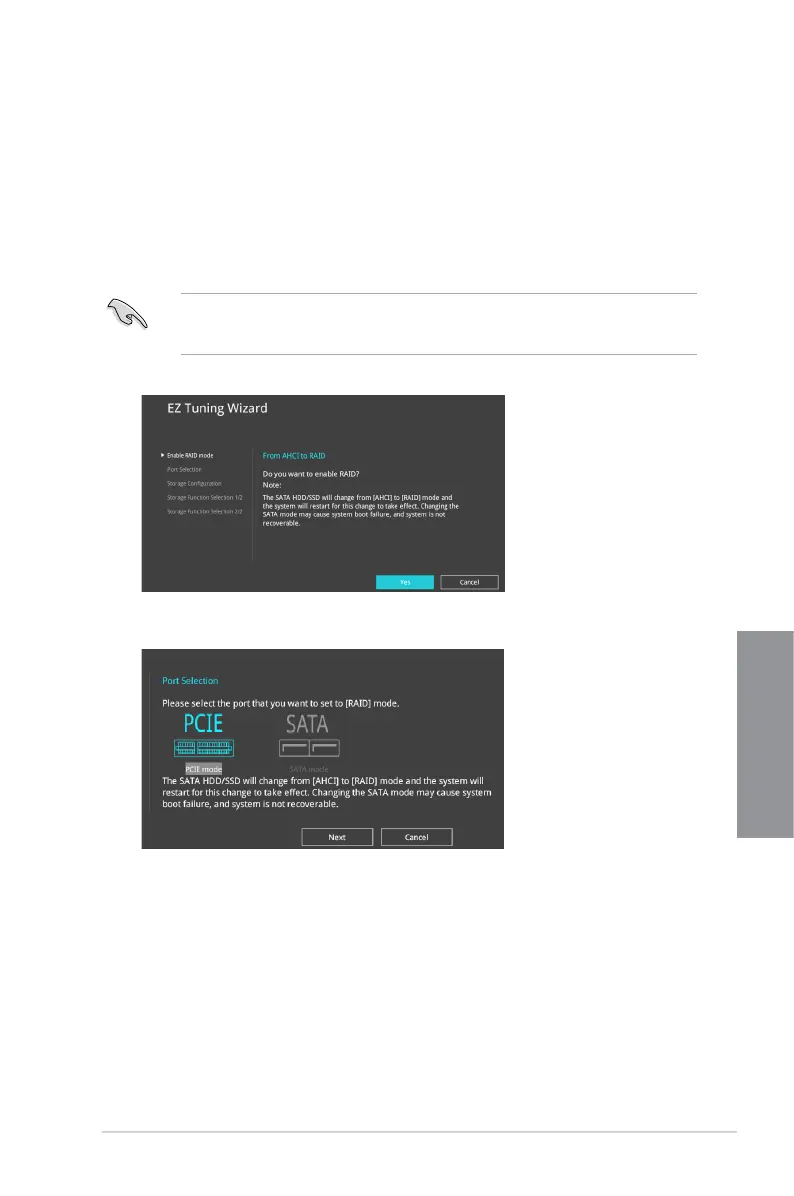

1. Click EZ Tuning Wizard from the BIOS screen to open EZ Tuning Wizard screen.

2. Click Yes

to enable RAID.

• Ensure that your HDDs have no existing RAID volumes.

• Ensure to connect your HDDs to Intel

SATA connectors.

3. Select the port that you want to set to [RAID] mode, PCIE or SATA, then click Next.

Default Chapter3
