ASUS Xonar Phoebus Quick Start Guide
English

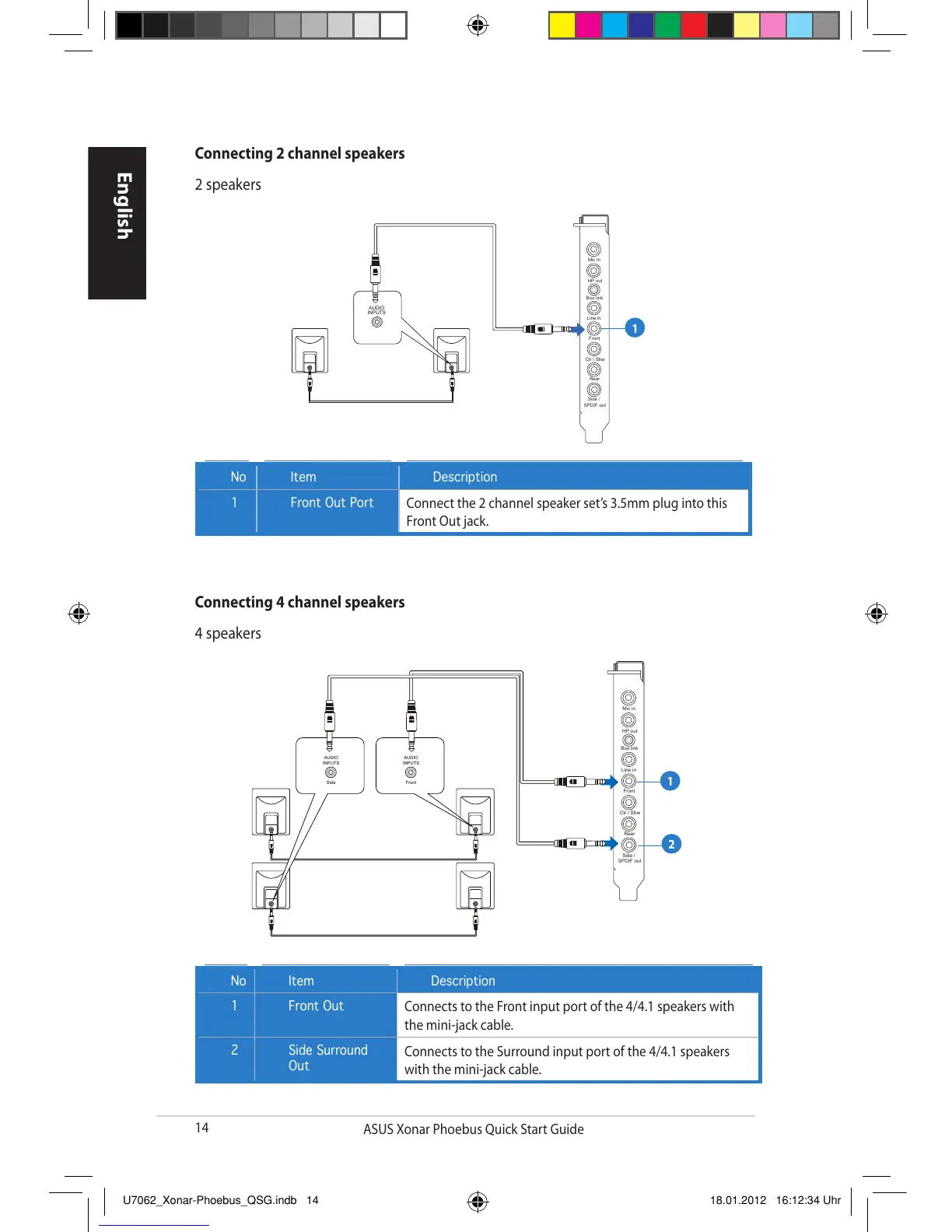

Connecting 2 channel speakers
2 speakers
No Item Description
1 Front Out Port
Connect the 2 channel speaker set’s 3.5mm plug into this
Front Out jack.
Connecting 4 channel speakers
4 speakers
No Item Description
1 Front Out
Connects to the Front input port of the 4/4.1 speakers with
the mini-jack cable.
2 Side Surround
Out
Connects to the Surround input port of the 4/4.1 speakers
with the mini-jack cable.
AUDIO
INPUTS
Mic in
HP out
Box link
Line in
Front
Ctr / Sbw
Rear
Side /
SPDIF out
1
1
2
AUDIO
INPUTS
Side
AUDIO
INPUTS
Front
Mic in
HP out
Box link
Line in
Front
Ctr / Sbw
Rear
Side /
SPDIF out
