4.3.7 USB Charger+
USB Charger+ allows you to quick-charge your portable USB devices even if your computer
is off, in sleep mode or hibernate mode.
Before using USB Charger+, ensure to disable the ErP Ready item from the Advanced >
APM > ErP Ready in the Advanced mode of the BIOS Setup program.
Launching USB Charger+
To launch USB Charger+, click on the top edge of the screen, then click USB Charger+
on the AI Suite 3 main menu bar.

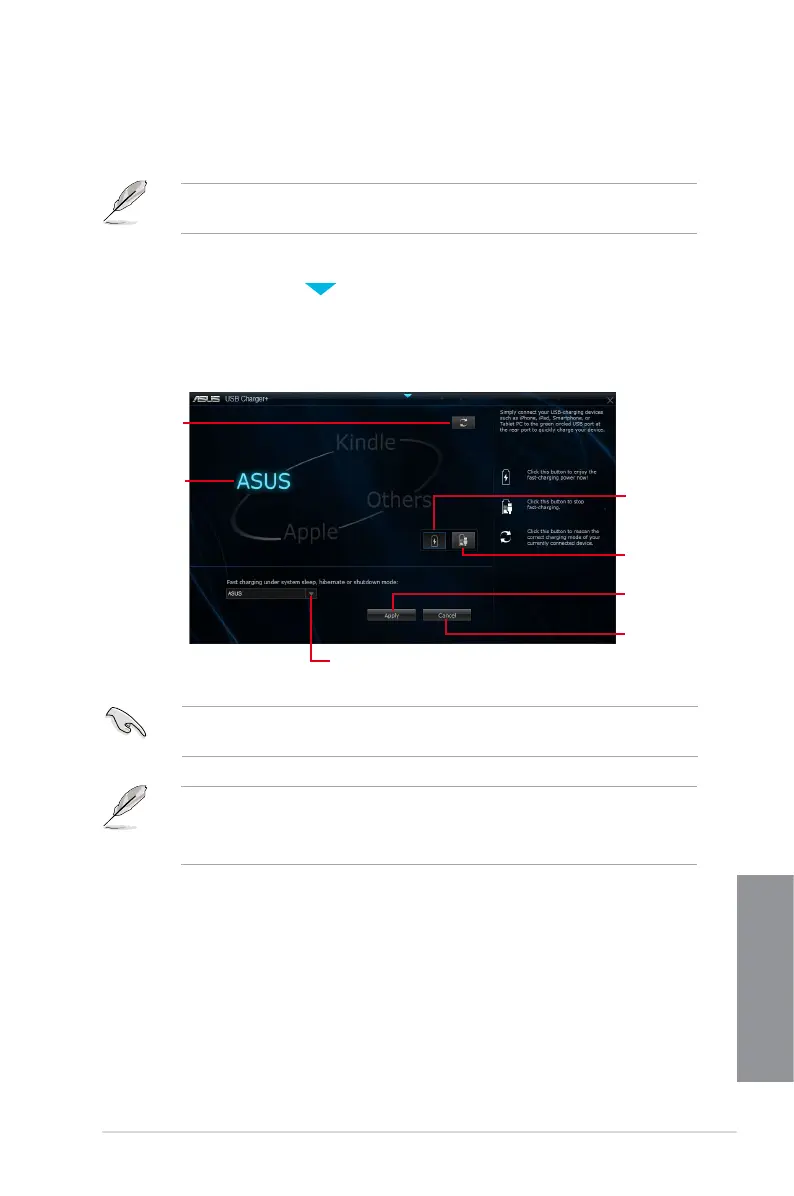

USB Charger+ screen
Click to detect
the connected
USB device
Click to apply
the settings
Click to discard
the settings
Click to fast-
charge your
USB device
Indicates that
the connected
USB device
is in charging
mode
Click to stop
charging your
USB device
Click to select the type of USB device that
you wish to charge when the system is off
Ensure to connect your USB device into the USB port that supports this utility. Refer to
section 2.3.1 Rear I/O connection of your user manual for more details.
• The USB Charger+ does not support USB hubs and USB extension cables, and
generic USB cables.
• The USB Charger+ may not recognize some ASUS devices due to a special design.

Asus Z87-DELUXE Specifications

General

ECC	No
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1333, 1500, 1600, 1666, 1800, 1866, 1900, 2000, 2100, 2133, 2200, 2250, 2400, 2450, 2600, 2666, 2800, 3000 MHz
Processor socket	LGA 1150 (Socket H3)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
USB 2.0 connectors	2
Number of SATA III connectors	10
Number of Parallel ATA connectors	0
HDMI version	1.4a
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
Audio chip	Realtek ALC1150
Cooling type	Passive
Component for	PC
Motherboard chipset	Intel® Z87
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	ATX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA, SATA II, SATA III
Graphics card	HD Graphics
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, Quad-GPU CrossFireX, Quad-GPU SLI
PCI Express x16 slots	3
PCI Express slots version	2.0, 3.0
PCI Express configurations	1x4, 1x16, 2x8
Cables included	SATA
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
BIOS type	EFI AMI
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	244 mm
Width	305 mm
