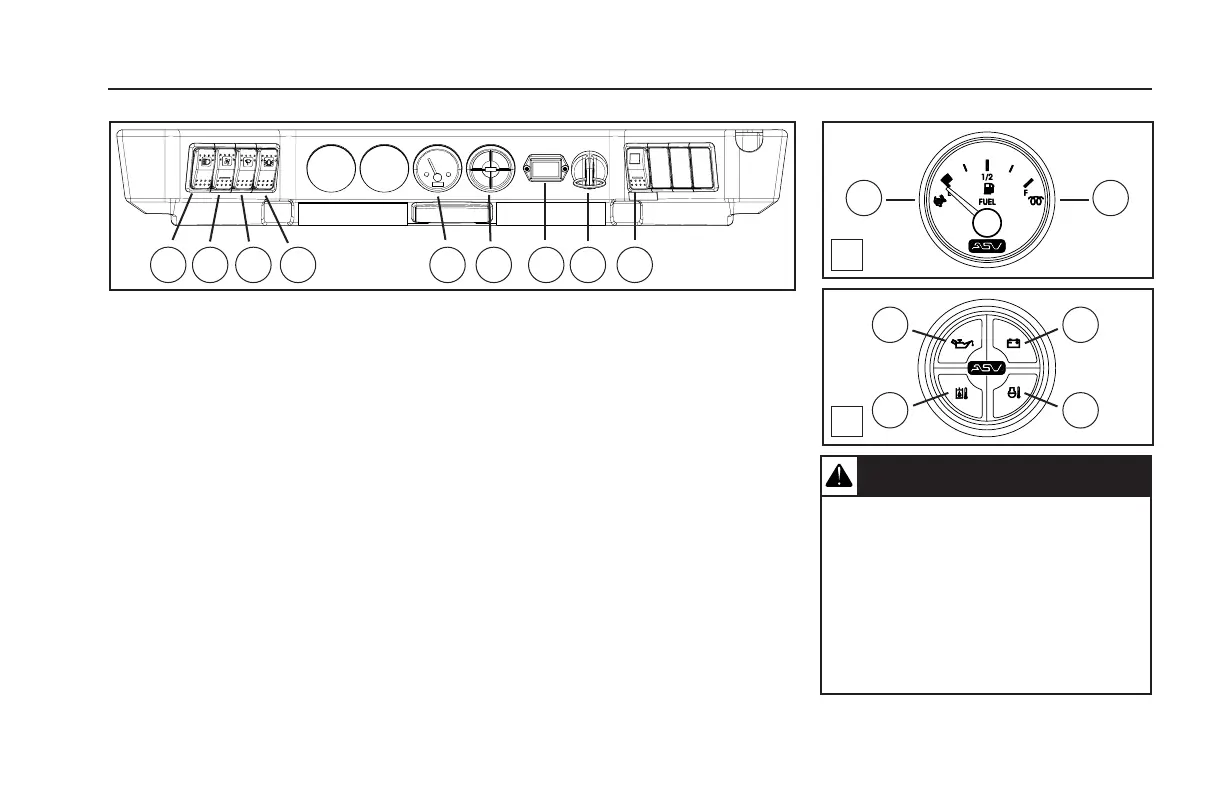

Dash Panel
There are many switches and instru-
ments involved in the operation of PT
machines. Learn the location and func-
tion of these items prior to operation.
Switch Panels
D - Lights, front and rear
E - Heater Fan (optional)
F - Front wiper (optional)
G - Beacon (optional)
K - Ignition, glow plug (pre-heat)
L - Auxiliary Hydraulics
Instruments
H -Fuel Level Gauge
I - Warning Indicators (4-in-one)
J - Hour Meter
M - (not used)
N - Glow Plug Operation Light
O - Oil Pressure Warning Light
P - Battery Voltage Warning Light
Q - Hydraulic Oil Temp. Warning Light
R - Engine Temp. Warning Light
If the battery voltage warning light (P)
illuminates, drive the machine to a suit-
able location and shut the engine off.
Diagnose the problem and make needed
repairs before continuing to operate.
The glow plug operation light (N) will illu-
minate only when the key switch is
turned to engine pre-heat, showing nor-
mal operation.
9
SSWWIITTCCHHEESS//IINNSSTTRRUUMMEENNTTAATTIIOONN
D
E F G H I J K
L
Should the engine temperature, oil
pressure, or hydraulic oil temperature
warning lights illuminate during normal
operation, shut the machine down
immediately. Diagnose the problem
and make needed repairs before con-
tinuing to operate.
CAUTION
O
Q
P
M N
J
K
R
