ASV pt30 - Daily Lubrication Requirements; Grease Fitting Locations and Usage; Daily Lubrication of Fittings

23
Grease Fittings

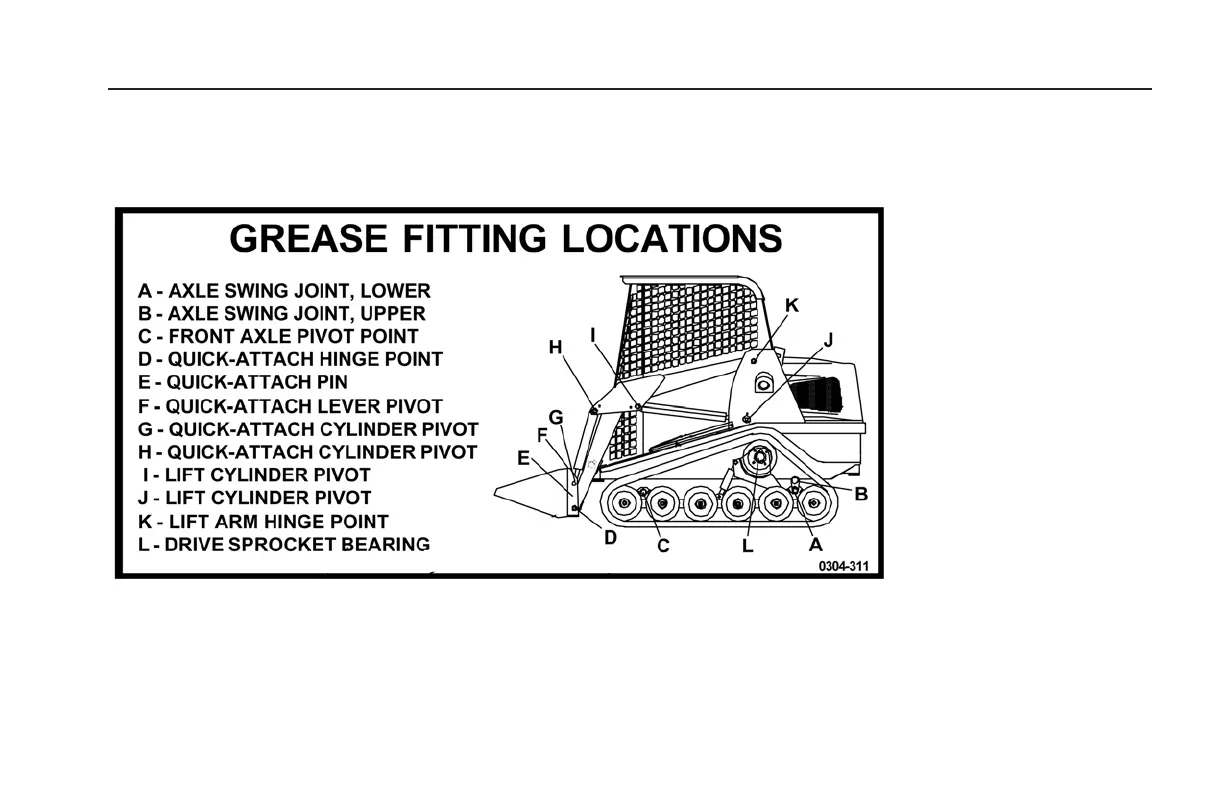

The illustration below shows the location of grease fittings found on the left side of the machine. An identical set of fittings
can be found on the right side of the machine. Lubricate all grease fittings daily, prior to operation.
MMAACCHHIINNEE MMAAIINNTTEENNAANNCCEE
