There are many instruments and
switches involved in the normal
operation of the ST-50. Make
sure to learn the location and
function of each of these items
prior to operating your machine.

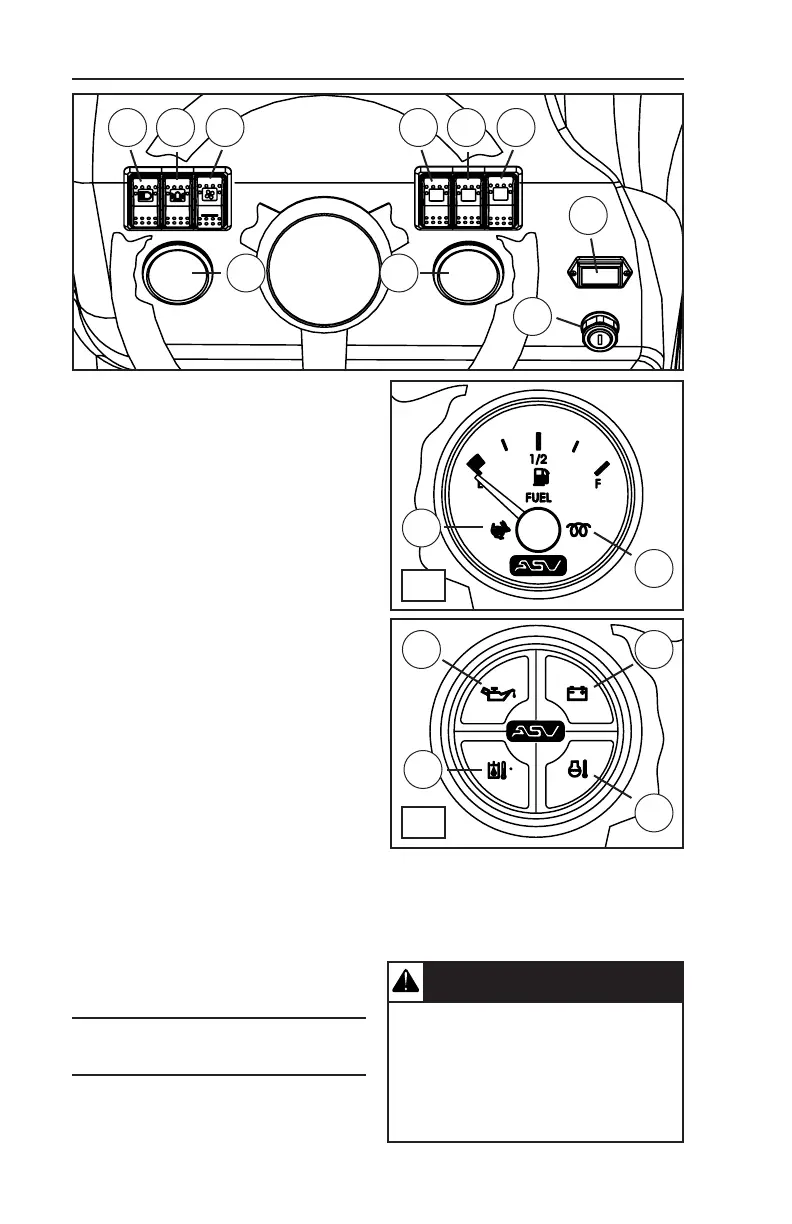

Switch Panels
A. Headlight Activation Switch
B. Beacon Activation Switch*
C. Heater Fan Activation Switch*
D. Push To Operate Switch
E. 2-Speed Activation Switch
F. Continuous Flow Switch*
G. Ignition Switch
Instrument Display
H. Fuel Level Gauge
I. Warning Light Display
J. Hour Meter
K. High Range Indicator
L. Glow Plug Operation Indicator
M.Oil Pressure Warning Light
N. Coolant Temp. Warning Light
O.Hyd. Oil Temp. Warning Light
P. Battery Voltage Warning Light
Optional equipment is indicated
by an asterisk. *
The glow plug operation light
should illuminate only when the
ignition switch is turned to the
pre-heat position.
CONTROLS
Switch Panels/Instrument Display
15
A B C D E F
I H
J
G
M
O
P
N
K
L
H
I
Should item(s) M, N, or O illumi-
nate during operation, shut the
machine down immediately.
Diagnose and make any neces-
sary repairs before resuming
operation.
CAUTION
