Asycube 380 & 530
Operating Manual
000.101.151
Version: B
16/50
Switching off this safety power deactivates the digital hopper outputs and the digital purge
output.
In any case, both “Power” and “S-power” have to be supplied for using the backlight.

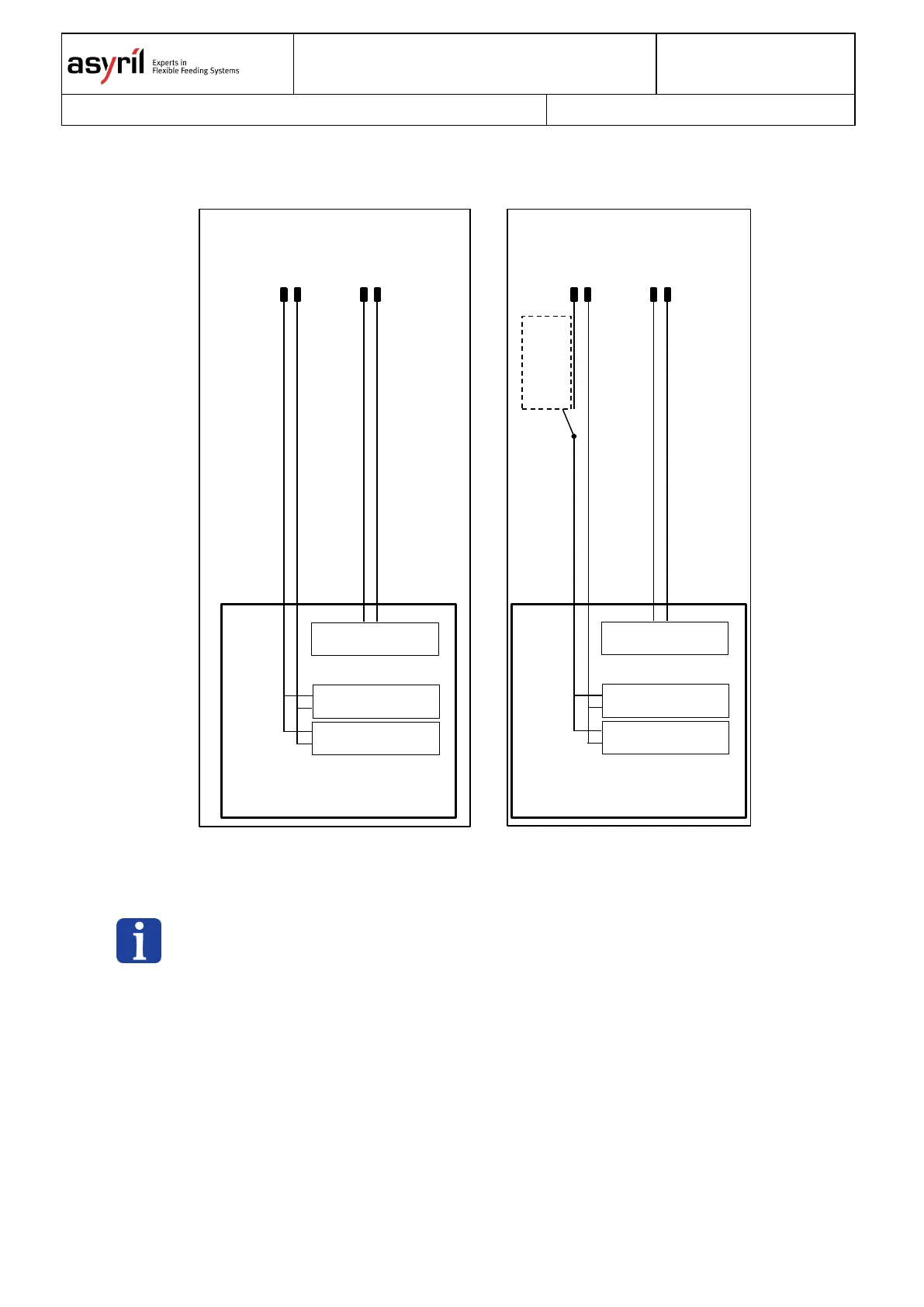

Figure 2-9
Power connection without safety relay
Figure 2-10
Power connection with safety relay
NOTE:
Both "Power" and "S-power" can be connected to a single power supply or to two different
power supplies. The 0 V-GND and Earth signals of the two supplies are connected inside the
Asycube.
Backlight
ASYCUBE
0 V DC
24 V DC
0 V power
0 V S
-power
24 V S
-power
24 V power
0 V DC
24 V DC
Actuators
Controller
ASYCUBE
0 V power
0 V S
-power
24 V S
-power
24 V power
Safety relay
0 V DC
24 V DC
0 V DC
24 V DC
Backlight
Actuators
Controller
