Asycube 380 & 530
Operating Manual
000.101.151
Version: B
19/50

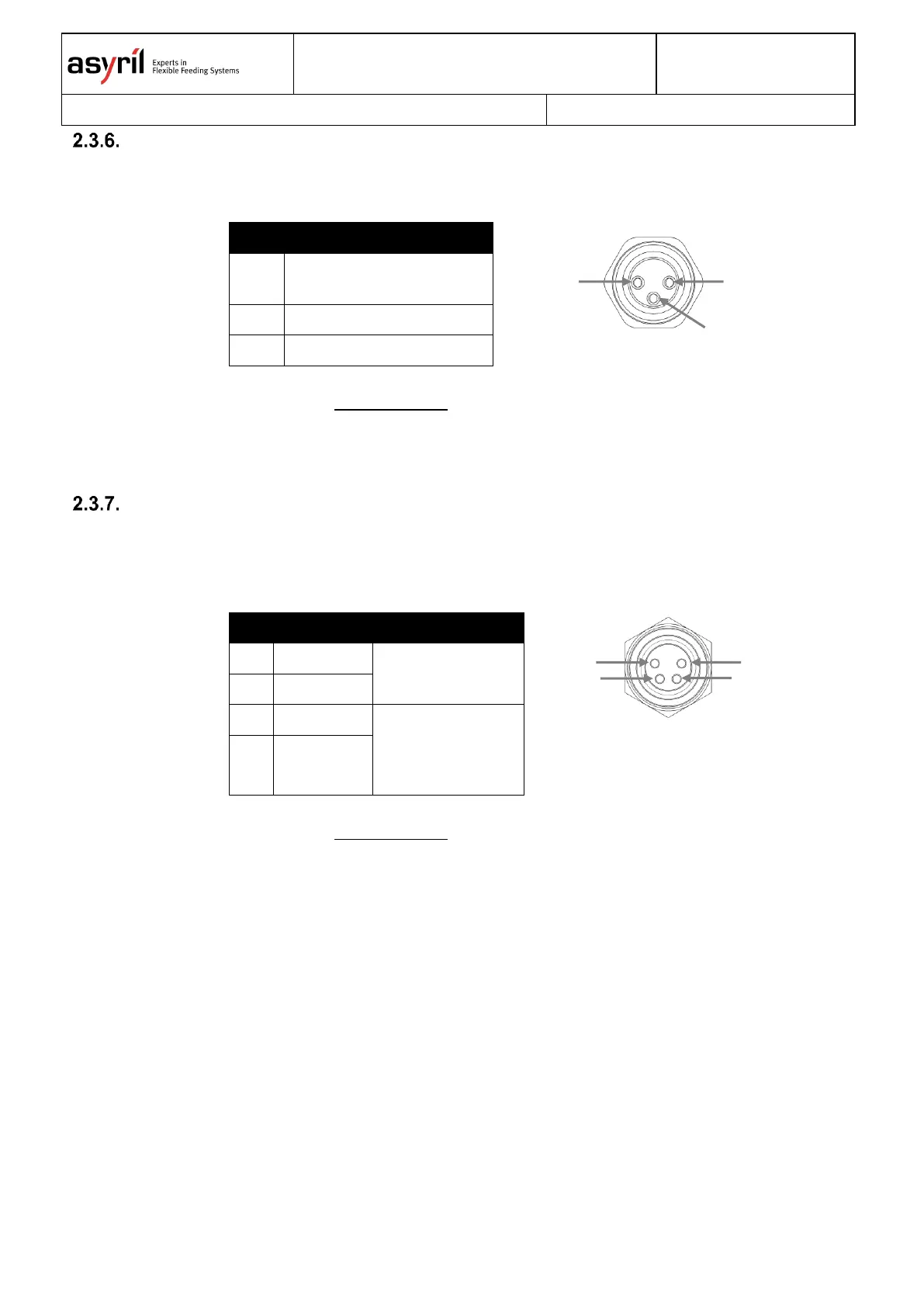

Digital inputs 1 and 2
A standard M8 three-pin male cable is used to run a vibration sequence defined in the HMI. This cable
must be connected as follows:
Pin
Waveform
(1)
+24 V DC OUT (sensor
power supply)
(3)
0 V GND
(4)
Input (+24 V DC)
Connector type (on Asycube side):
M8, 3P, female
Figure 2-14: Digital input 380 and 530
Digital output for hoppers 1 and 2
A standard M8 four-pin male cable is used to transmit the digital output signal and analogue output
signal to the hopper. It must be connected as follows:
Pin
Waveform
Hopper
(1)
0 V GND
Analogue output 1
(2)
0…10 V DC
(3)
0 V GND
Digital output 1
(4)
+24 V DC
500 mA
Connector type (on Asycube side):
M8, 4P, female
Figure 2-15: Digital output for
hoppers 380 and 530
(1)
(2)
(3)
(4)
(1)
(4)
(3)
