YOUR COOKER HOOD

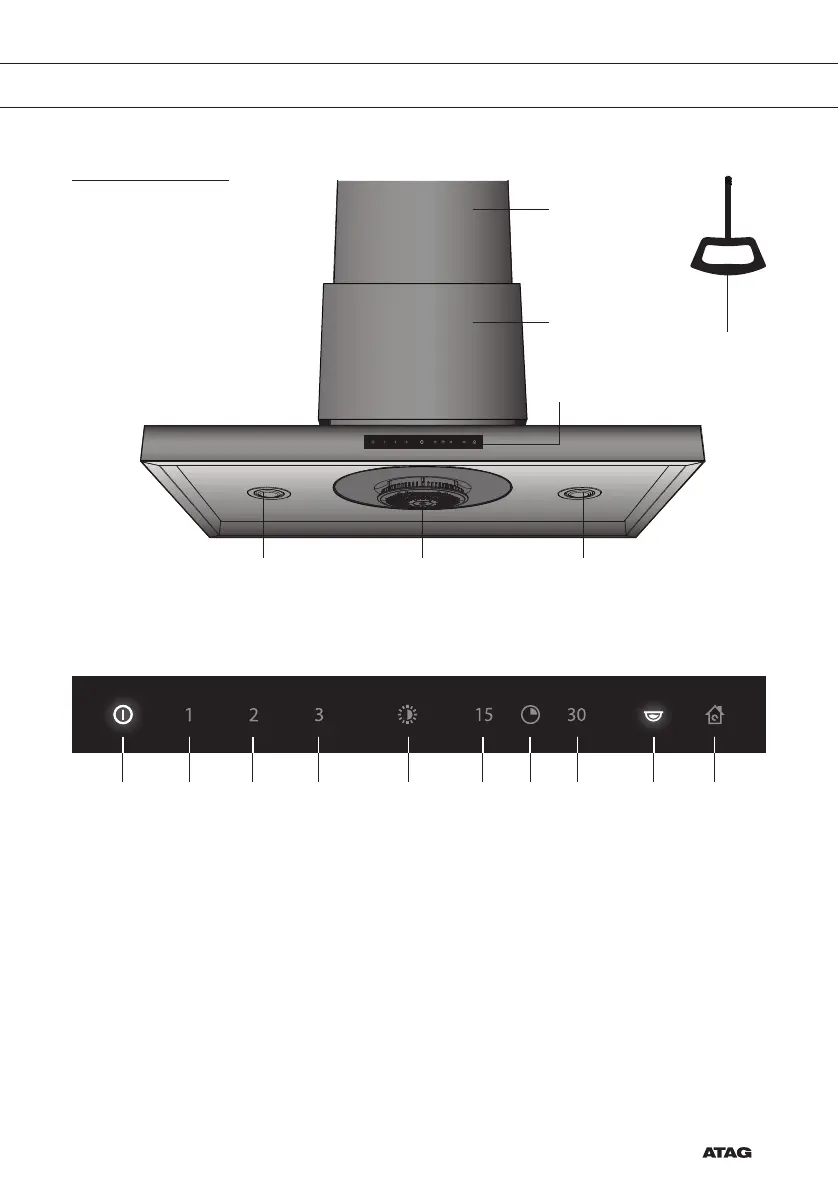

Description
1. Telescopic chimney
2. Ribbon
3. Control panel
4. LED spots
5. Grease collector + fan
6. Service tool
Control panel
7. On/off key; switching the hood to standby or switching it off completely.
▷ If the hood is in standby, the on/off key is illuminated 100%. All the other keys and
indicator signals, with the exception of indicator signal 15, are illuminated 50%.
8. Key ‘extractor setting 1’; to switch on/off the extraction.
9. Key ‘extractor setting 2’; to switch on/off the extraction.
10. Key ‘extractor setting 3’ (intensive setting); to switch on/off the extraction.
11. Lighting key; to switch on/off the lights and to dim the lights.
12. Timer key ‘15 minutes’; to switch on/off the timer.
13. Timer indicator signal.
14. Timer key ‘30 minutes’; to switch on/off the timer.
15. Grease collector indicator signal.
16. Air quality indicator signal.
7 8 9 10 11 12 13 14 15 16
6
1
2
3
54 4
