EN 17





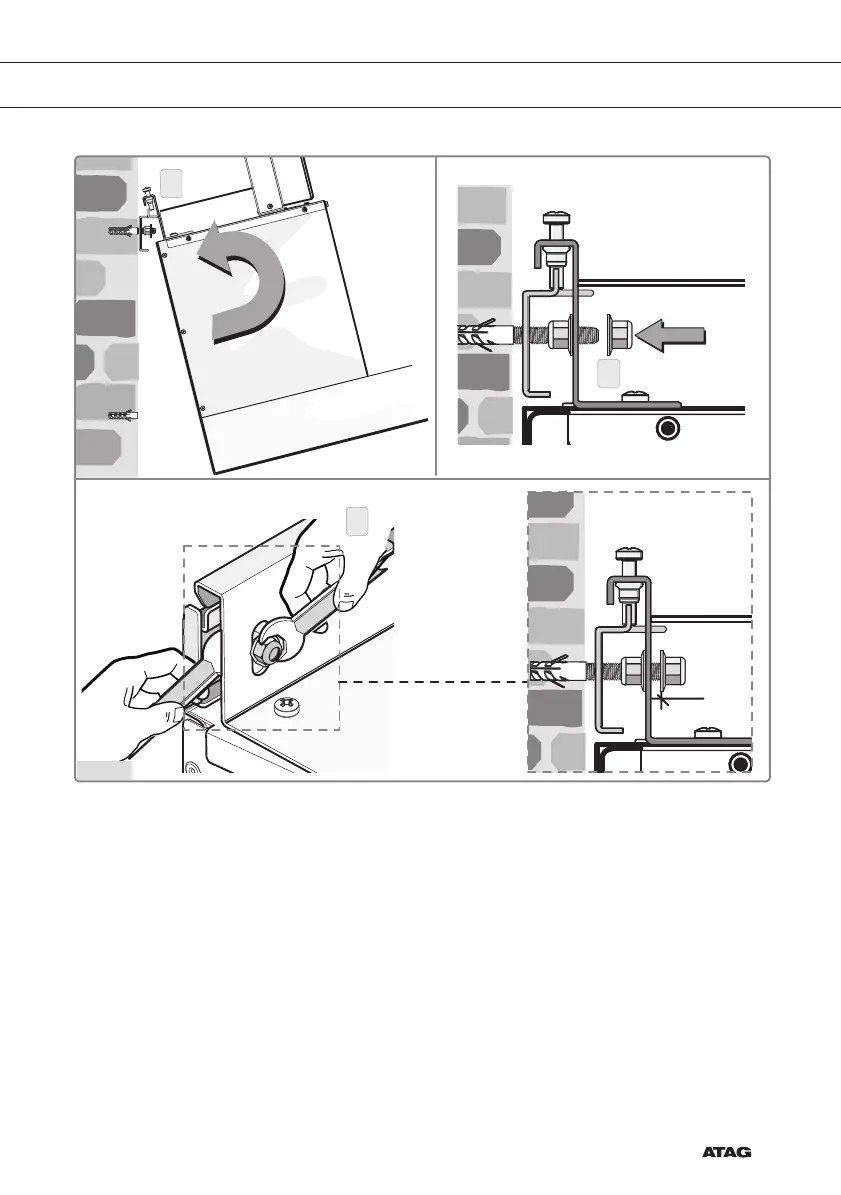

- Tilt the hood slightly and hook it securely to the bracket, as illustrated (Fig.6 step 1).
- Position the cooker hood and secure it to the bracket by applying the nut to the screw
(Fig.6 step 2).
- Hold an appropriate spanner in one hand and use a second spanner in the other hand to counter
the nut (Fig.6 step 3). The distance between the nut and the bracket should be at least 3 mm.
Fig.6
INSTALLATION
