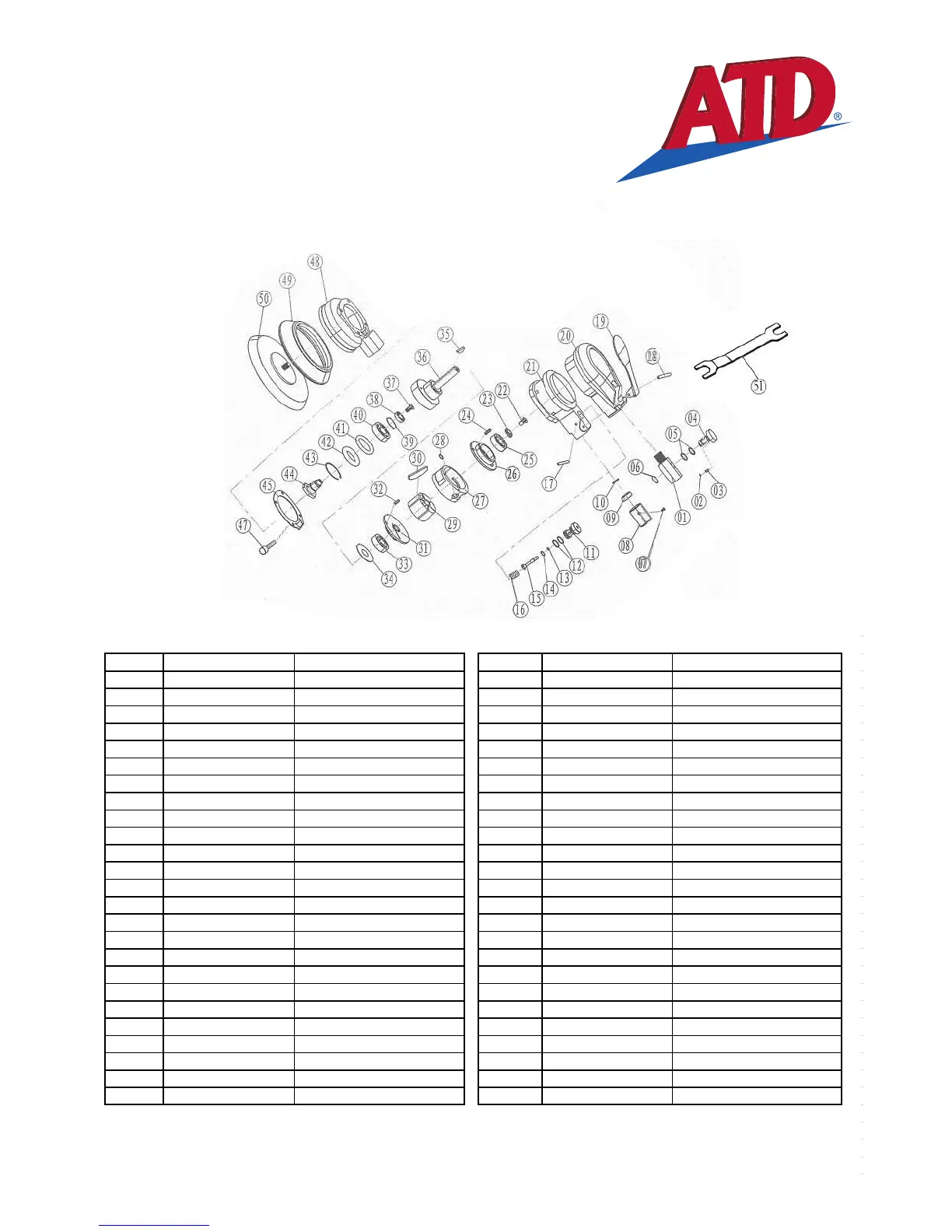

ATD Tools ATD-2088 - Parts List and Diagram; Exploded View and Part Numbers; Component Identification

ITEM# ORDERING PART# PART DESCRIPTION ITEM# ORDERING PART# PART DESCRIPTION
1 PRT2088-01 AIR STRAINER 26 PRT2088-26 REAR PLATE
2 PRT2088-02 DENTENT DW=3 27 PRT2088-27 CYLINDER
3 PRT2088-03 DENTENT SPRING 28 PRT2088-28 O-RING 6.7x1.8
4 PRT2088-04 REVERSE VALVE 29 PRT2088-29 ROTOR
5 PRT2088-05 O-RING 5.6x1.8 30 PRT2088-30 VANE
6 PRT2088-06 SNAP-RETAINER 31 PRT2088-31 FRONT PLATE
7 PRT2088-07 SCREW M4x8 32 PRT2088-32 PIN 3x7
8 PRT2088-08 MUFFLER 33
PRT2088-33 BEARING 6000Z
9 PRT2088-09 MUFFLER CONNECTOR 34 PRT2088-34 WASHER
10 PRT2088-10 O-RING 6.7x1.8 35 PRT2088-35 HALF ROUND SHAFT
11 PRT2088-11 VALVE CORE 36 PRT2088-36 ANVIL
12 PRT2088-12 O-RING 8.5x1.8 37 PRT2088-37 SCREW M5x8
13 PRT2088-13 O-RING 2x1.0 38 PRT2088-38 BEARING (1680/68ZZ)
14 PRT2088-14 O-RING 4x1.5 39 PRT2088-39 RETAINER
15 PRT2088-15 VALVE STEM 40 PRT2088-40 BEARING 6001Z
16 PRT2088-16 VALVE SPRING 41 PRT2088-41 DUSTPROO
F GASKET
17 PRT2088-17 PIN 3x22 42 PRT2088-42 BEARING TRAY
18 PRT2088-17 PIN 3x22 43 PRT2088-43 SPRING RETAINER
19 PRT2088-19 TRIGGER 44 PRT2088-44 TILTING AXLE
20 PRT2088-20 HOUSING 45 PRT2088-45 GASKET
21 PRT2088-21 GRIP 47 PRT2088-47 HEX SCREW
22 PRT2088-22 SCREW 48 PRT2088-48 COVER
23 PRT2088-23 WASHER 49 PRT2088-49 DUST COVER
24 PRT2088-24 PIN 3x14 50 PRT2088-50 BACKING PAD
25 PRT2088-25 BEARING 51 PRT2088-51 SPANNER WRENCH
ALSO AVAILABLE:
PRT20
88-SK - SERVICE KIT - INCLUDES ITEMS 02, 03, 05, 06, 10, 12, 13, 14, 23, 25, 30 (x5), 33 & 45
ATD-2088
