5. Wiring Examples

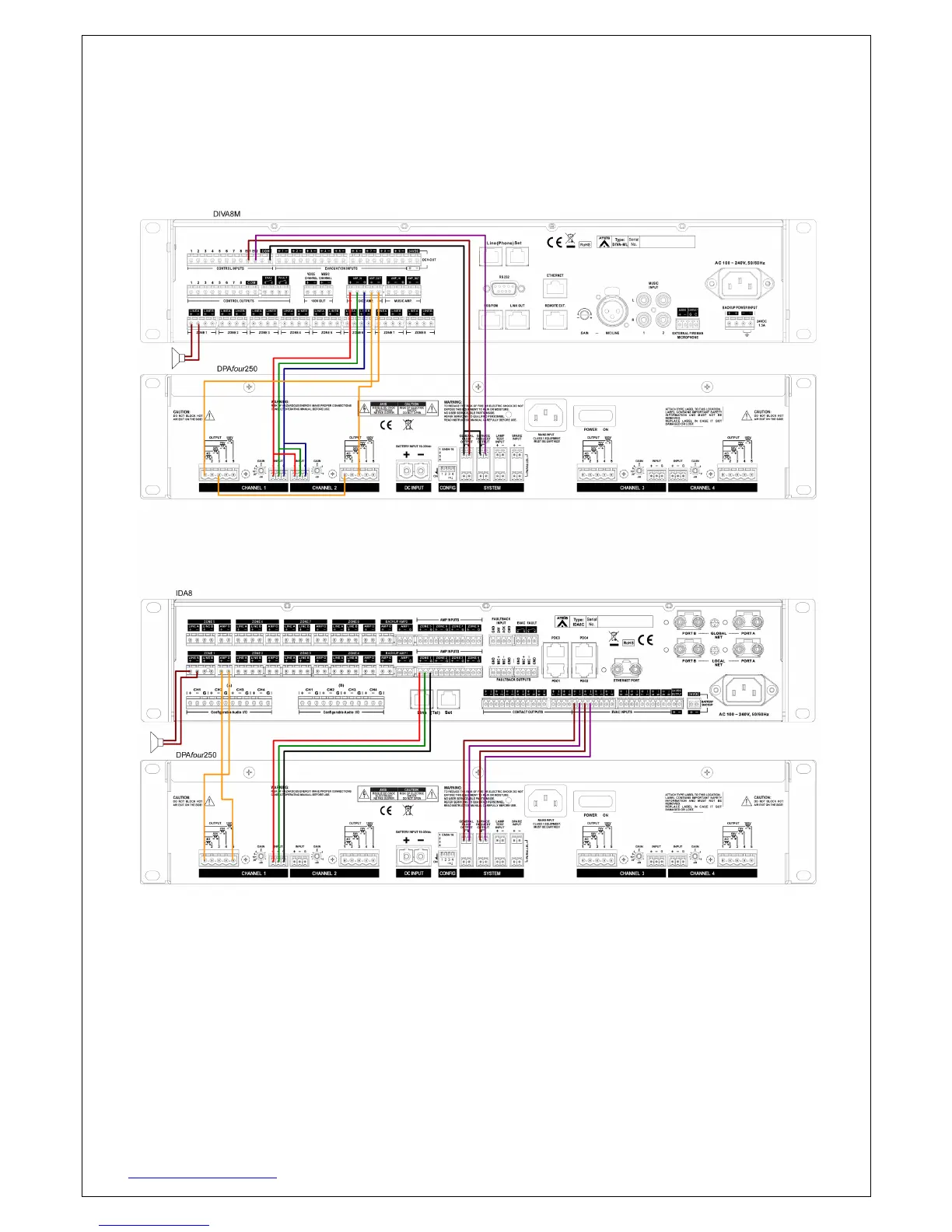

Diva-8 DPA wiring example with DPA ch 1&2 combined *
IDA8 & DPA wiring example
* In case of combined DPA channels, gain settings should be set at
equal level for both channel 1&2 and/or 3&4
