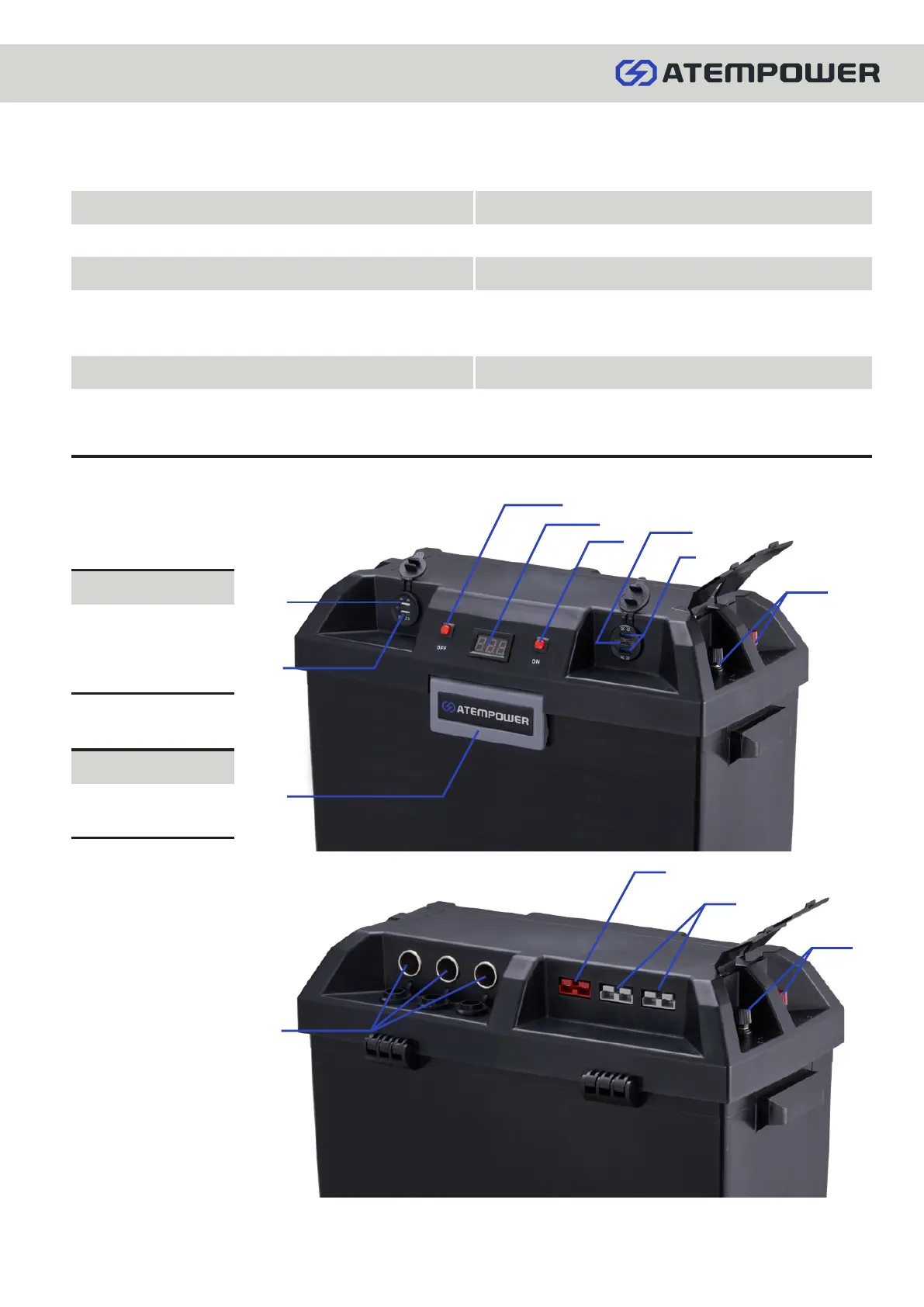

ATEMPOWER AP12BB-DC - Assembly Drawing

ASSEMBLY DRAWING:
4
1. Positive and Negative Terminals x2
7. USB Type-C Port x1
Max 18W
4. OFF Switch x13. ON Switch x1
5. Volt Meter x1
6. Cigarette Lighter Socket Outputs(12V,10A) x3
8. USB Type-A Ports x2
Max 18W (Shared Between Both Ports)
2. Buckle x1
10. USB Type-A Port(5V/2.1A) x1
11. Anderson Plug Input (Red)50A x1
(With Voltage Sensitive Relay)
9. USB Type-A Port(5V/1A) x1
1
2
3
4
5
6
7
8
10
11
12
1
USB Type-C
5V/3A; 9V/2A;12V/1.5A
PD3.0 (PPS): 3.6~12V/3A
(PPS: 20mV/step);
QC3.0: 3.6~12V, 2.6A MAX;
BC1.2: 5V/3.2A
USB Type-A
QC2.0: 5V/3A; 9V/2A;
12V/1.5A;
QC3.0: 3.6~12V, 2.6A MAX
SUPPORTED FAST
CHARGING PROTOCOLS
12. Anderson Plug Outputs/Inputs (Grey)50A x2
9
