Tire Pressure Sensor Components
Tire Pressure Sensor
Car Computer
ECU
Dash
Lights
LR
Left Rear Tire
Optional
Spare
OBDII
Port
Rubber or
Metal Air Valve
Software Protocol Chip -
PSI, Temp, Mhz, ID#,
and Battery Status
Non-replaceable
Lithium Battery
Start 1 Finish 4
2 3
4 WHEELS
5 WHEELS
RF
Right Front Tire
RR
Right Rear Tire
LF
Left Front Tire
Door Placard

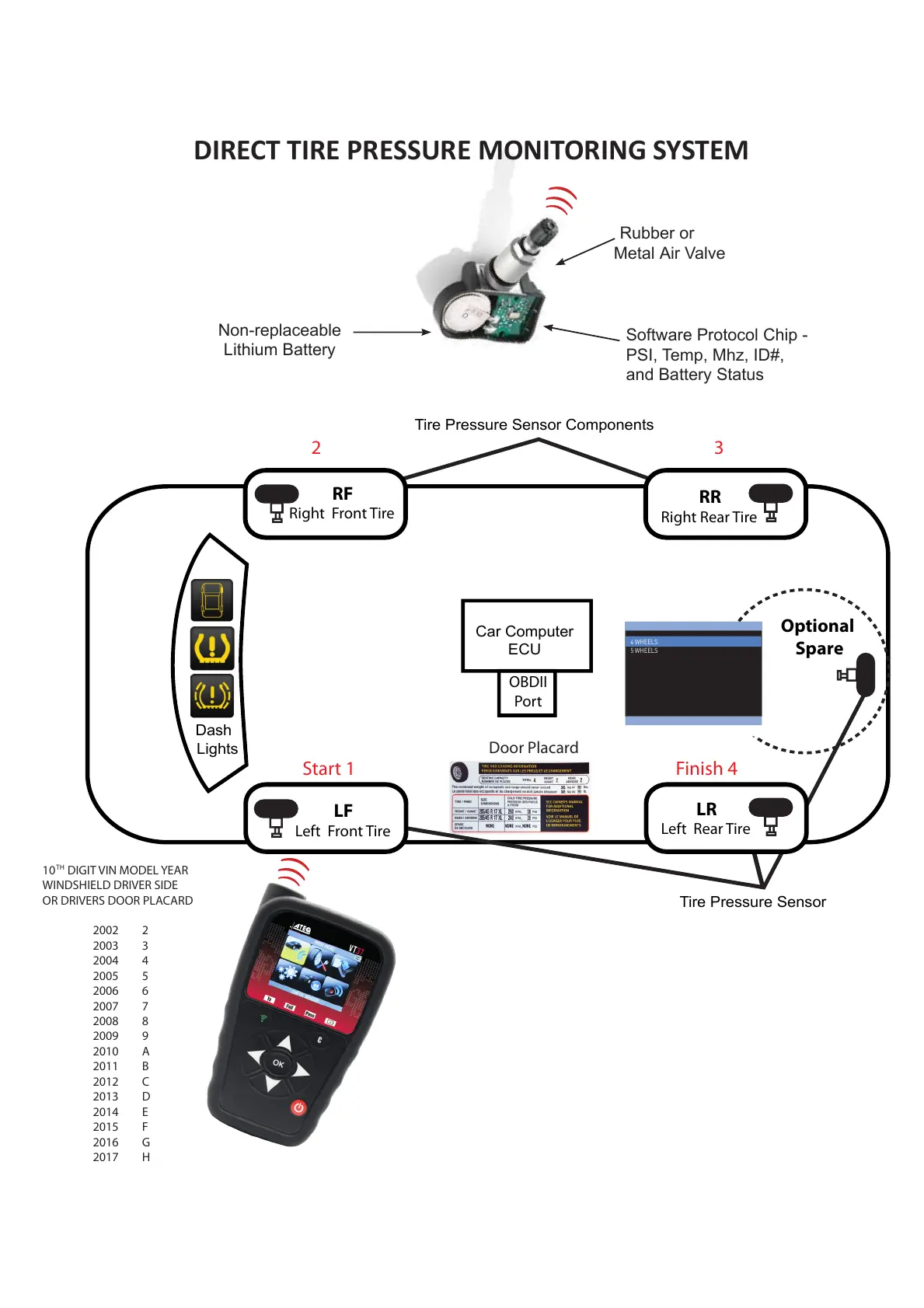

DIRECT TIRE PRESSURE MONITORING SYSTEM
10
TH
DIGIT VIN MODEL YEAR
WINDSHIELD DRIVER SIDE
OR DRIVERS DOOR PLACARD
2002 2
2003 3
2004 4
2005 5
2006 6
2007 7
2008 8
2009 9
2010 A
2011 B
2012 C
2013 D
2014 E
2015 F
2016 G
2017 H
10
