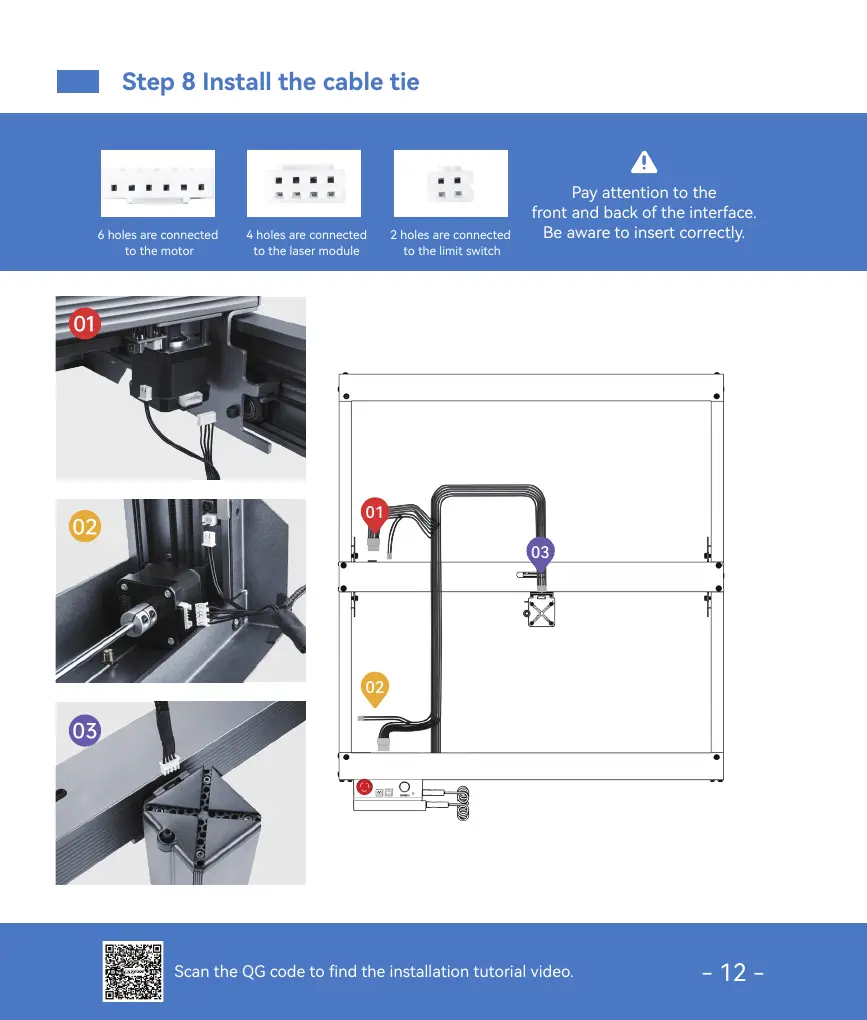

ATEZR V35 Plus - Cable Connections

02
03
01
Pay attention to the
front and back of the inteace.
Be aware to inse correctly.
6 holes are connected
to the motor
4 holes are connected
to the laser module
2 holes are connected
to the limit switch
01
02
03
Scan the QG code to nd the installation tutorial video.
