ANNEX 4 SL1 CONNECTION DIAGRAM
The following chapters show some connection examples:

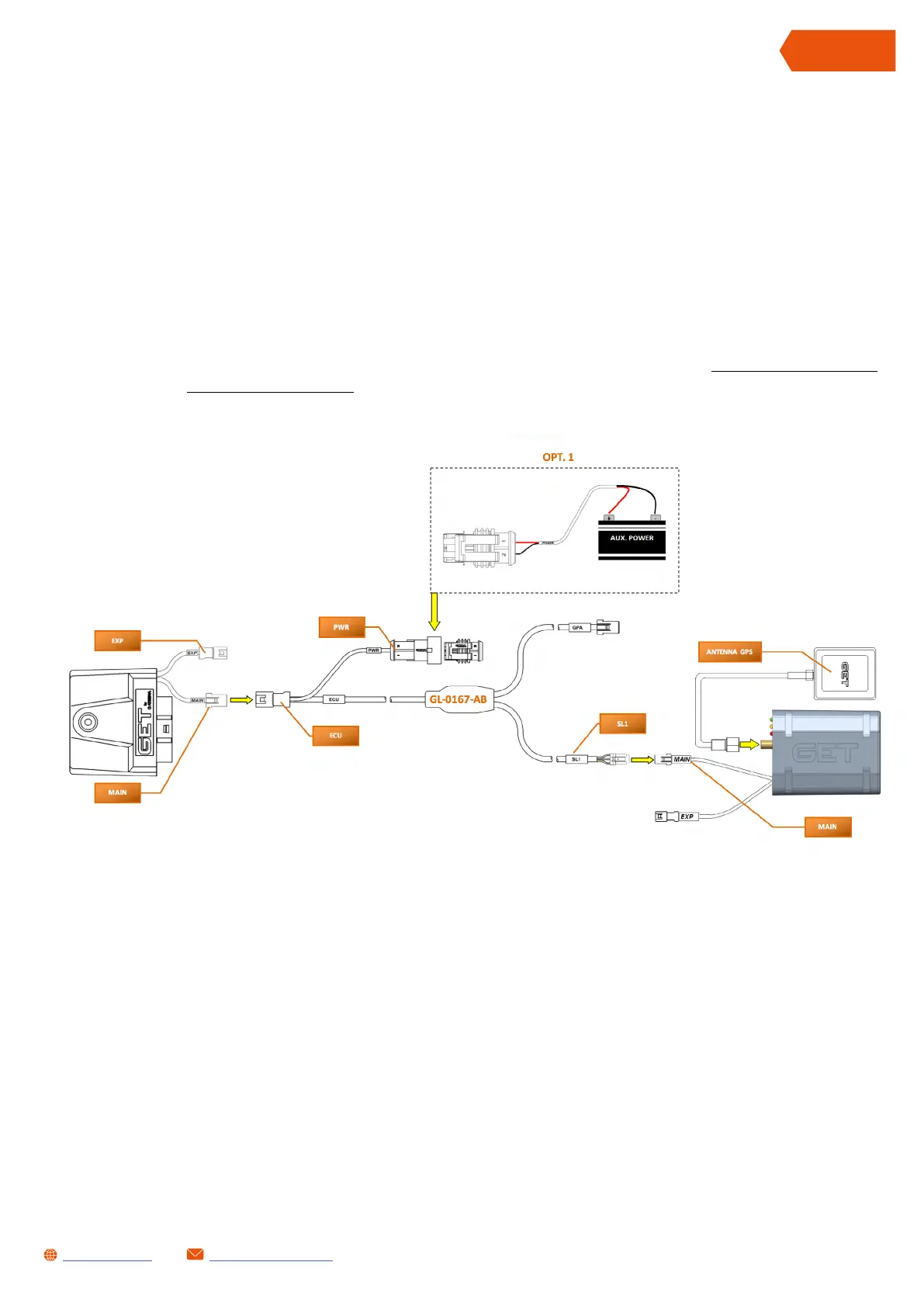

1 RX1/GP1 ECUS - SL1 BATTERY LESS CONFIGURATION
NOTE: USING OPT., ALL THE CONNECTED DEVICES WILL BE POWERED WITHOUT HAVING TO
TURN ON THE ENGINE
