SL1 DATA LOGGER User Manual Rev. AD
sales.get@athena.euwww.getdata.it
ENGLISH
3.1 FIX GPS
It is necessary to “fix” the satellites to obtain the trajectories and lap times in the acquisitions.
The minimum number of satellites for correct acquisition is 5.
In fixed applications (example Dyno sessions) GPS is not required.
NOTE: The SL1 Data Logger continues to search for satellites during acquisition, which permits
starting acquisition also without GPS data.
In this case, it is probable that the trajectories, which are then displayed by the software, are
compromised.
Evidence of this are quick changes in vehicle position (spikes), also in the order of Km!!!
4 NECESSARY REQUIREMENTS...
The following is required to acquire data:
Analogue signals or digital data (e.g CAN bus) coming from the vehicle
SL1 configured correctly to acquire the desired data
Personal computer
Software LynXLog (required to download data and configure SL1)
Software WinTAX4 (required to analyse the downloaded data)
The SL1 Data Logger can be connected to the vehicle (or the sensors) using the
specific cable (refer to
Annex 3).

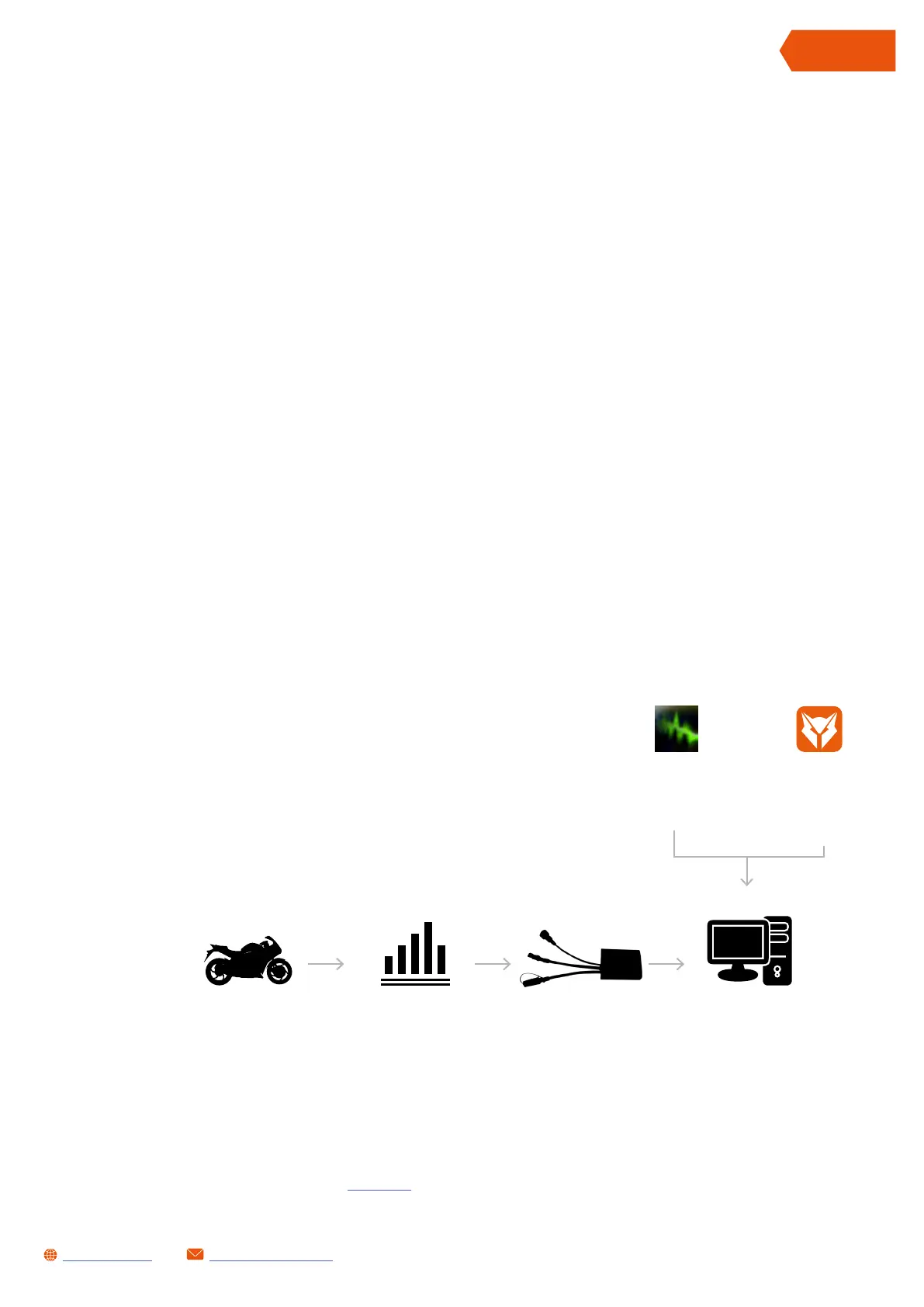

SL1 DATA LOGGERVehicle PC
WINTAX
DATA ANALYSIS
SOFTWARE
LYNXLOG
LOGGER
MANAGER
SOFTWARE
SENSOR
SIGNALS
& DATA FROM
CAN BUS
DATA ANALYSIS VIA WINTAX
