SL1 DATA LOGGER User Manual Rev. AD
sales.get@athena.euwww.getdata.it
ENGLISH
ANNEX 3 CONNECTING THE SL1 WIRING
The following chapter describes the SL1 wiring.
MAIN/POWER wiring code GL-0178-AA.
This wiring must be connected to the MAIN connector (SL1 Data Logger).

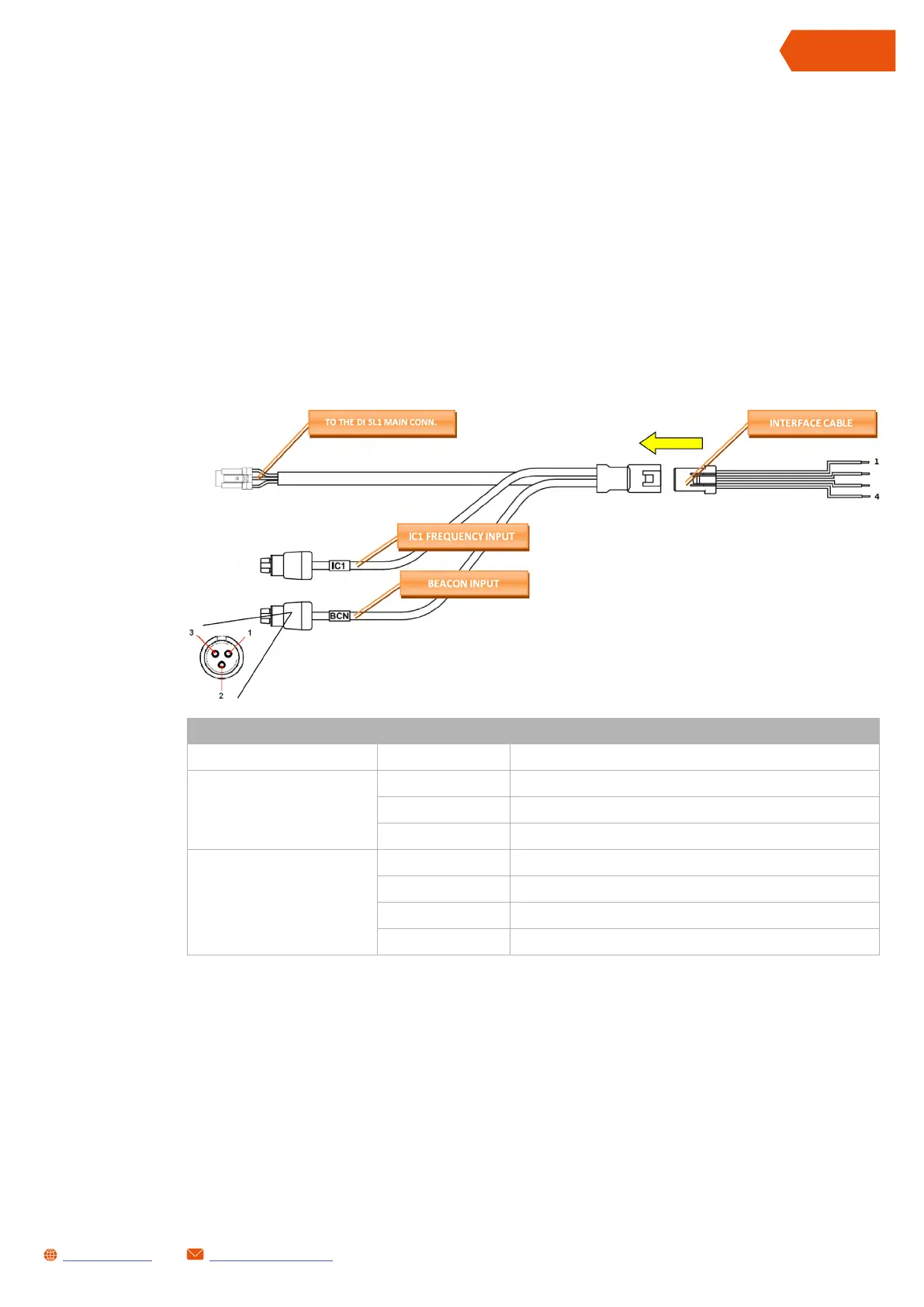

1 MAIN POWER/IC WIRING CODE GL-0178-AA
MAIN/POWER connector pinout
CONNECTOR/CABLE PIN DESCRIPTION
IC1
BCN
1 + Power supply positive
2 Input signal
3 Ground (GND SEN)
INTERFACE CABLE
1 +Power supply positive
2 Power supply negative (GNDPWR)
3 CAN Port GET - CANL signal
4 CAN Port GET - CANH signal
Note: this wiring can be used in combination with code GL-167-AB to easily connect a Get ECU
as well as a frequency input (e.g. RPM or speed sensor)
