SL1 DATA LOGGER User Manual Rev. AD

sales.get@athena.euwww.getdata.it

ENGLISH

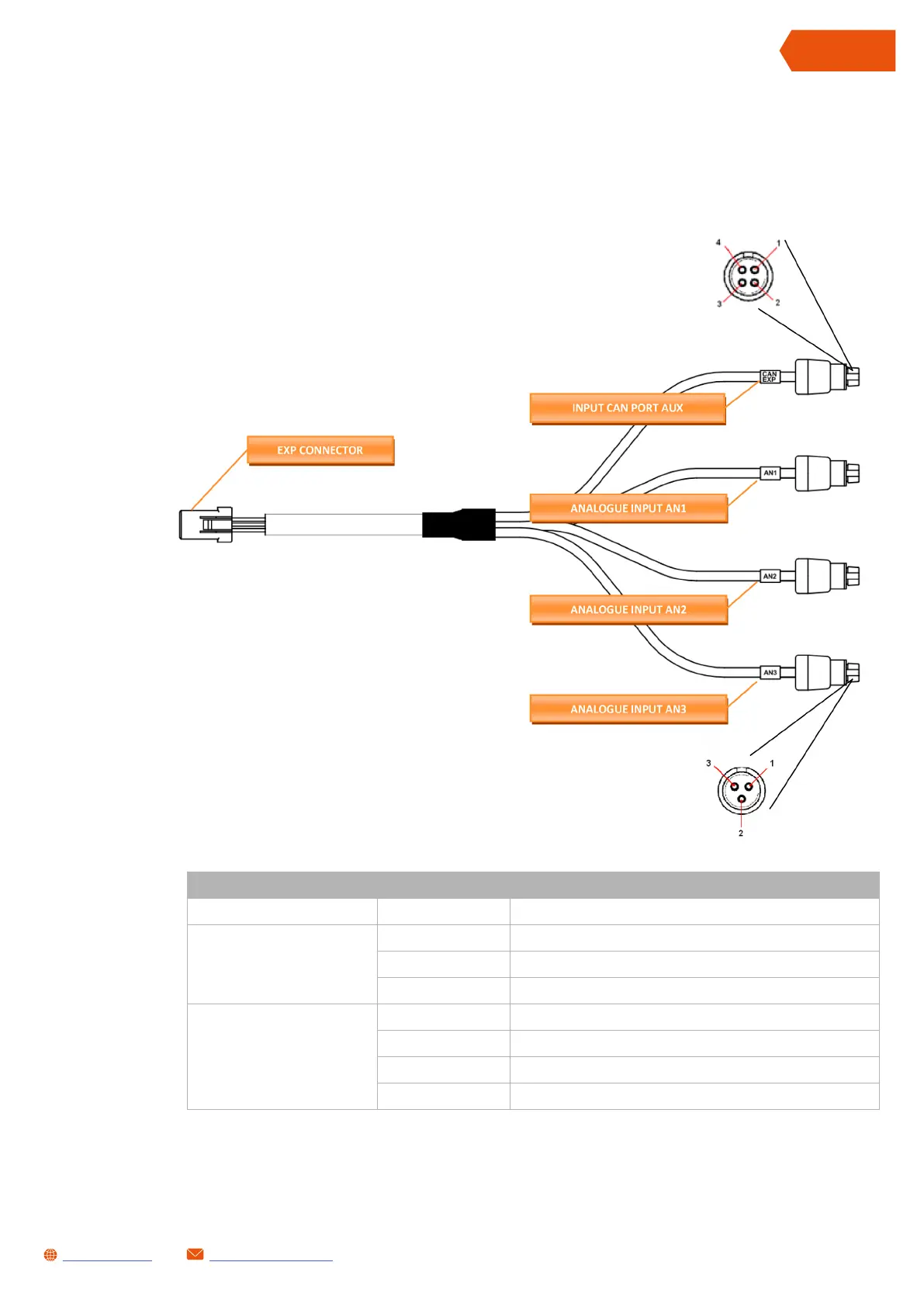

2 EXPANSION WIRING CODE GL-0179-AA

EXPANSION wiring code GL-0179-AA.

This wiring must be connected to the EXP connector (SL1 Data Logger).

EXP Connector Pinout

CONNECTOR PIN DESCRIPTION

AN1

AN2

AN3

1 + 5 VDC (VREF)

2 Input signal

3 Ground (GND SEN)

CAN EXP

1 CAN Port EXP -CANL signal

2 CAN Port EXP -CANH signal

3 NC – not connected

4 NC – not connected

• EXP CONNECTOR: must be connected to the EXP connector of the SL1 Data Logger

• CONNECTOR AN1…AN3: analogue inputs (example: potentiometer, thermocouple, etc.)

• CAN EXP CONNECTOR: second CAN port (CAN Port EXP)
