3 “USB” CONNECTOR
USB Connector Pinout
PIN SIGNAL NAME DESCRIPTION
1 USB + USB signal +5V
2 USB N USB signal Data N
3 USB P USB signal Data P
4 ID USB signal ID
5 USB - USB GND

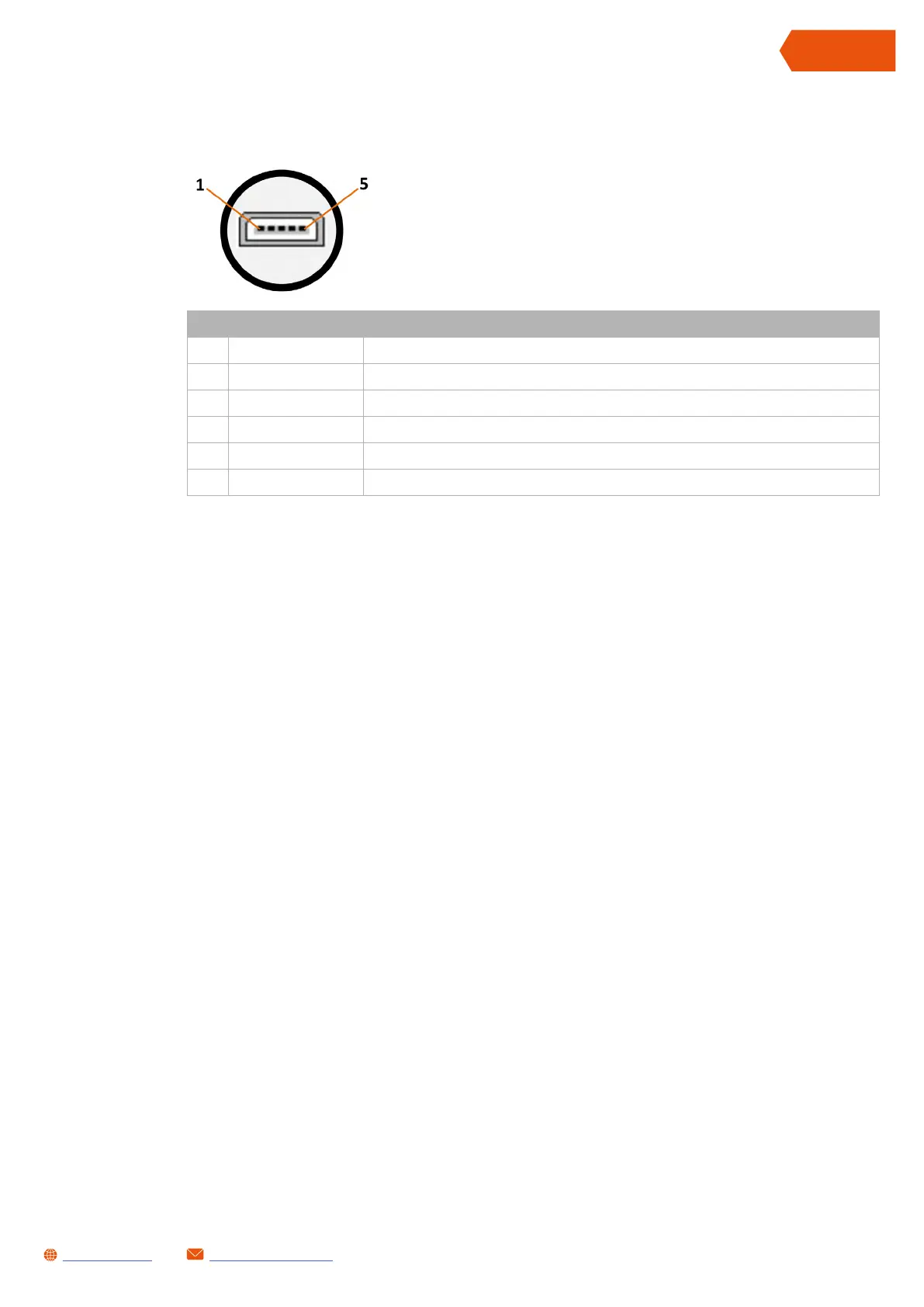

USB connector
Front view
(The wires exit from the rear)
