GasSens Gas Detection System Section 1 - Overview
O & M Manual
A14-RK, 8/06 1 - 12
Two point detectors include one power supply and two receivers. These systems are shipped
factory wired as shown in Figure 1-6 below.
Analytical Technology, Inc.

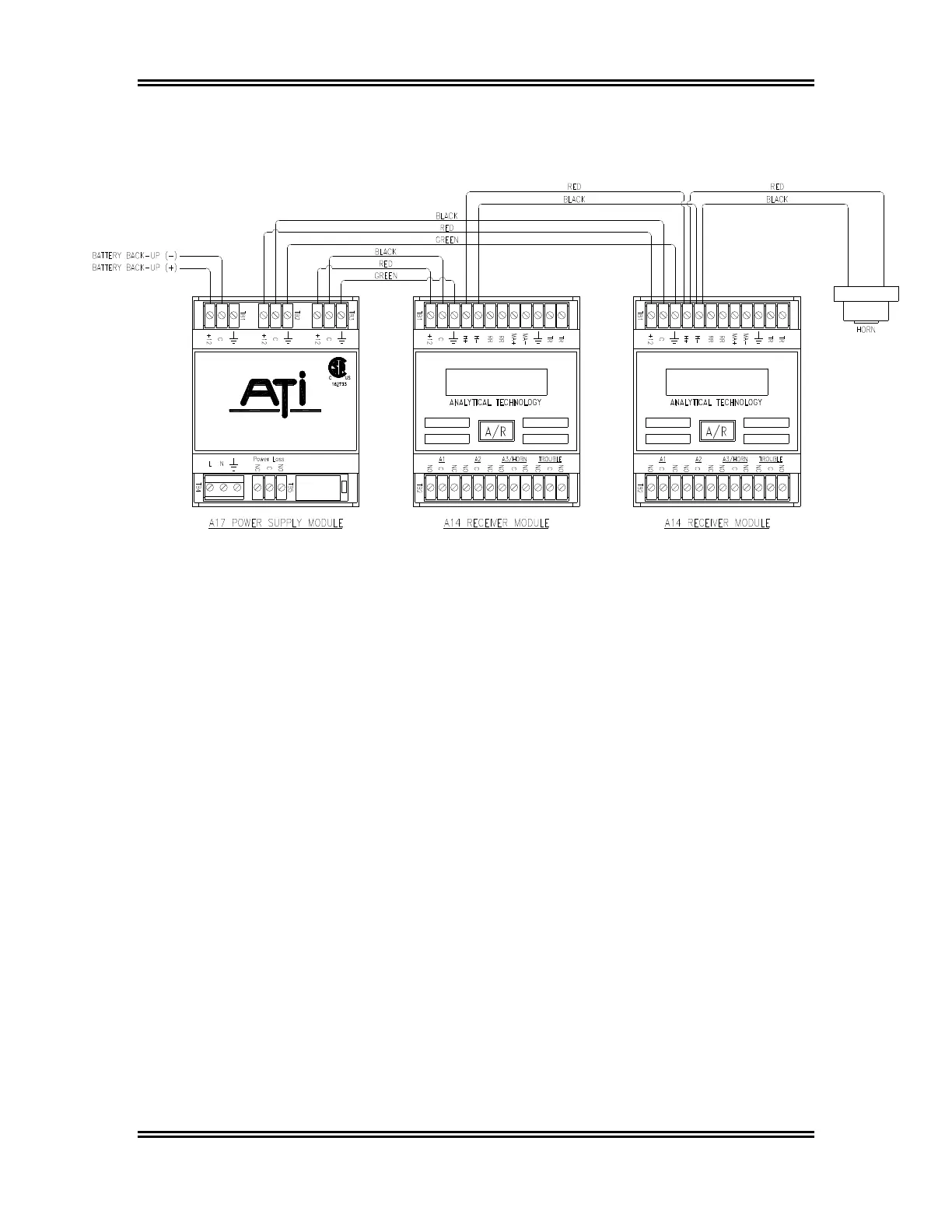

Figure 1-6: Dual Point Receiver Internal Wiring, (ATI-033)
