4
16”/406mm
or
24”/610mm
F
A
1
PLEASE CHOOSE BEST INSTALLATION OPTION BASED ON TV BACK PANEL HOLE SPACING:
OPTION 2: (7.87 to 23.6) in x 15.7 in / (200 to 600) mm x 400 mm
H
2

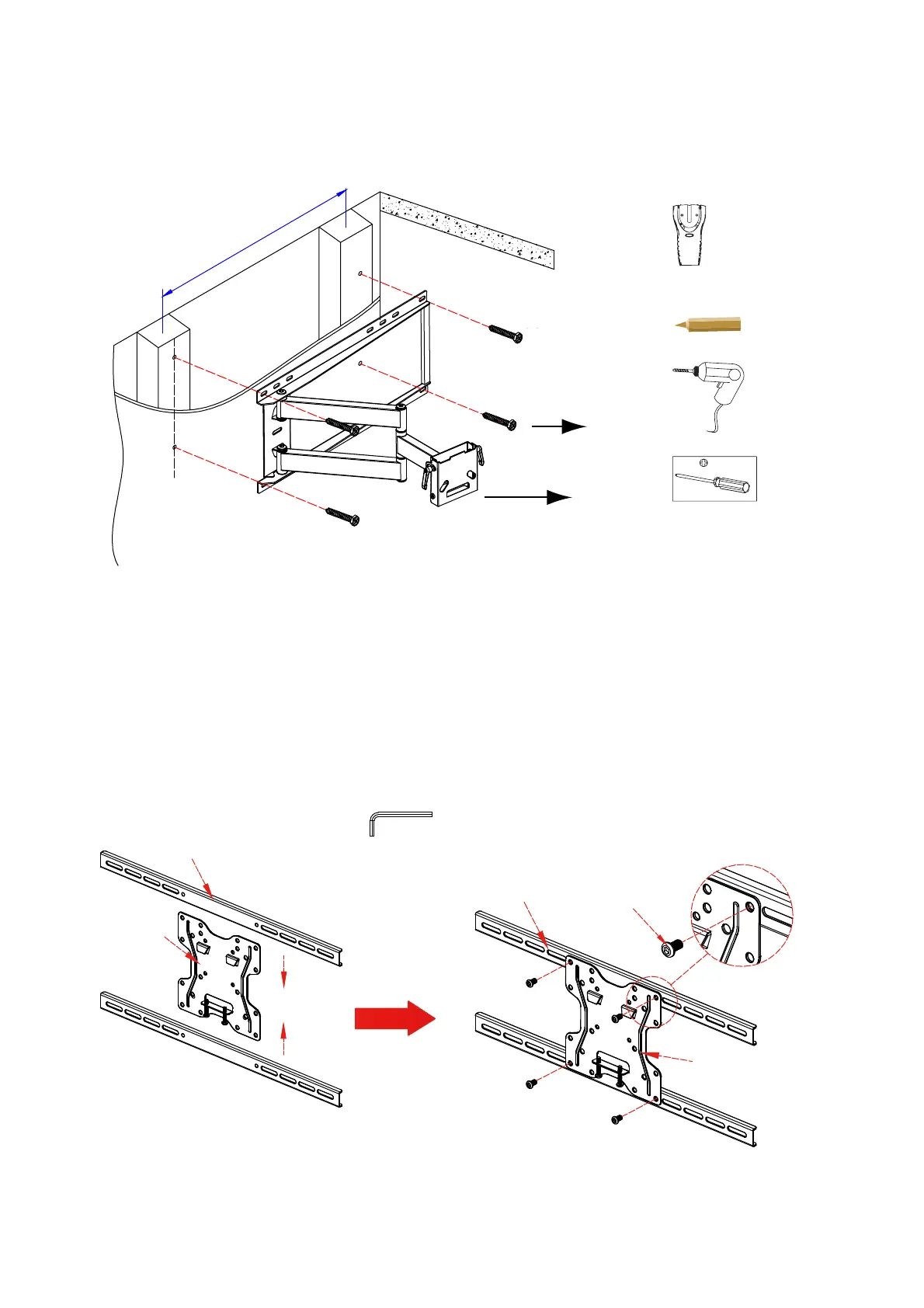

Attach horizontal bar (D) to TV mounting plate (B), then x it with screws (G) and allen wrench (H).
D
B
D
B
G
This mount is designed to be attached into wood studs. DO NOT use wall anchors. Using a stud nder,
nd the center of two adjacent studs. With a pecil, mark the hole locations at the desired height,
making sure you are level. Use wall bracket (A) as a template to mark the two remaining holes.
Drill pilot holes at 4 pencil marks 2.5 in. (64mm) deep, using a 5/16in. or 8 mm diameter drill bit.
Attach wall bracket (A) to the wall with 4 screws (F).
