9
- The device must be supplied with
230/240V 50Hz.
- It is connected to the electricity
supply by means of a 2 core cable
(Brown= Live, Blue= Neutral) via a
connection box. In damp areas such
as bathrooms and kitchens, the
connection box must be installed at least 25 cm above the floor.
- To prevent hazards due to unintentional resetting of the thermal circuit breaker, this device should
not be powered through an external switch, such as a time switch, or connected to a circuit which
is s
witched on and off on a r
egular basis by the electric power supplier.
- The installation must include a double-pole cutout with a contact opening distance of at least 3mm.
- The device must not be earthed.
- If the supply cable is damaged, it must be replaced by the manufacturer, his after-sales service or a
similar person of qualification in order to avoid a danger.

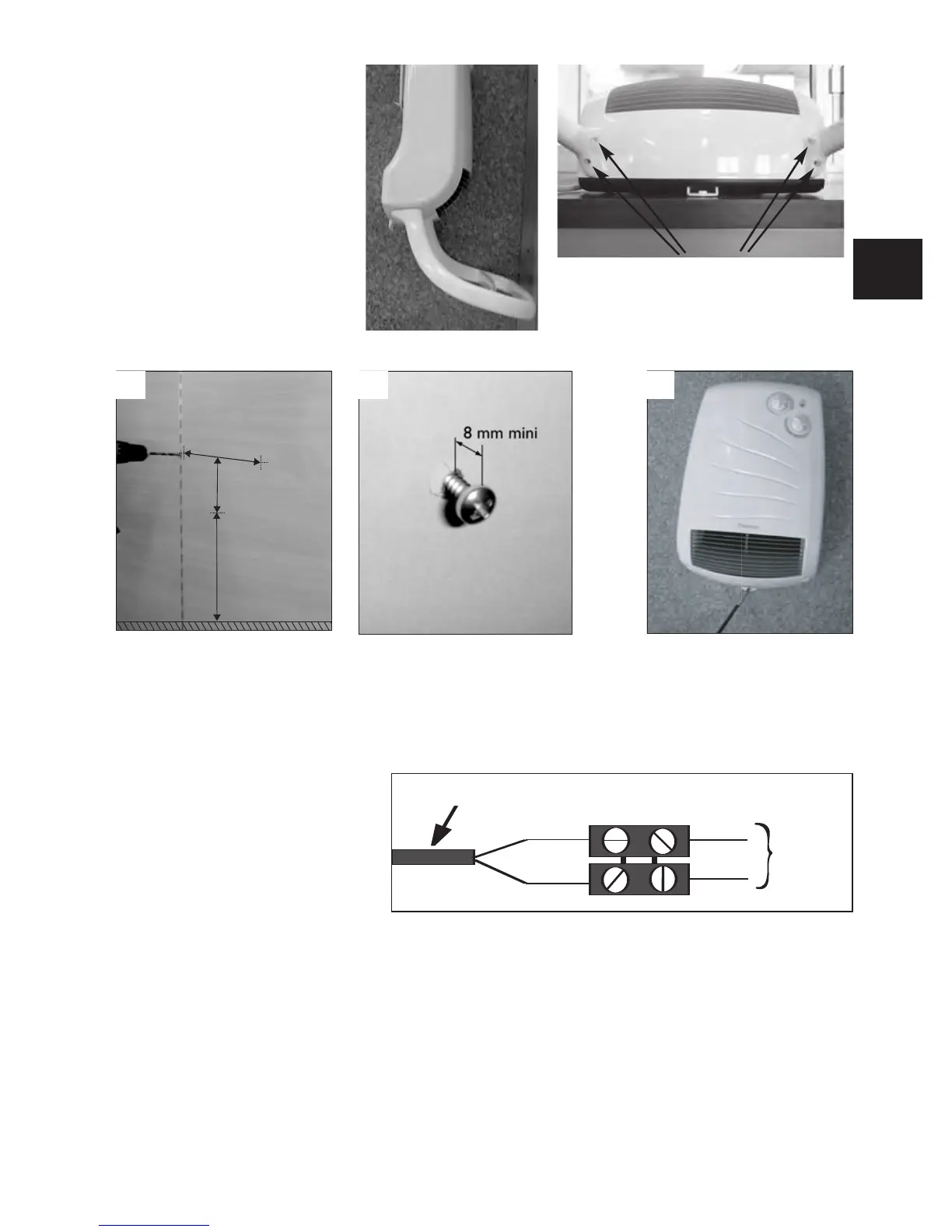

Mark out the 3 fixing holes
and insert the plugs.
Slide the device into the
niches created by the two
upper screws. Fasten the
device in place firmly with
the bottom screw.
Screw in the 2 upper
screws leaving a minimum
of 8 mm between the head
of the screw and the wall.
1 2 3
2-1) Fastening the bar
(
version with the bar).
- Proceed to install the front bar
before fastening the device to
the wall.
- Lay your device flat and screw in
the four fixing screws.
2-2) Fastening the device to the wall.
Bar fixing screws
2-3) Connecting the device.
GB
