Atlantic SOL Series - Connecting the Lights; Maintenance

3
• Extensioncords(part#SOLWEXT)areavailabletoaddanadditional20’of
 cordtoanySOLLight.Onlyonecordcanbeusedoneachlight.Neverconnect
 multipleextensioncordstogether.
Connecting the Lights

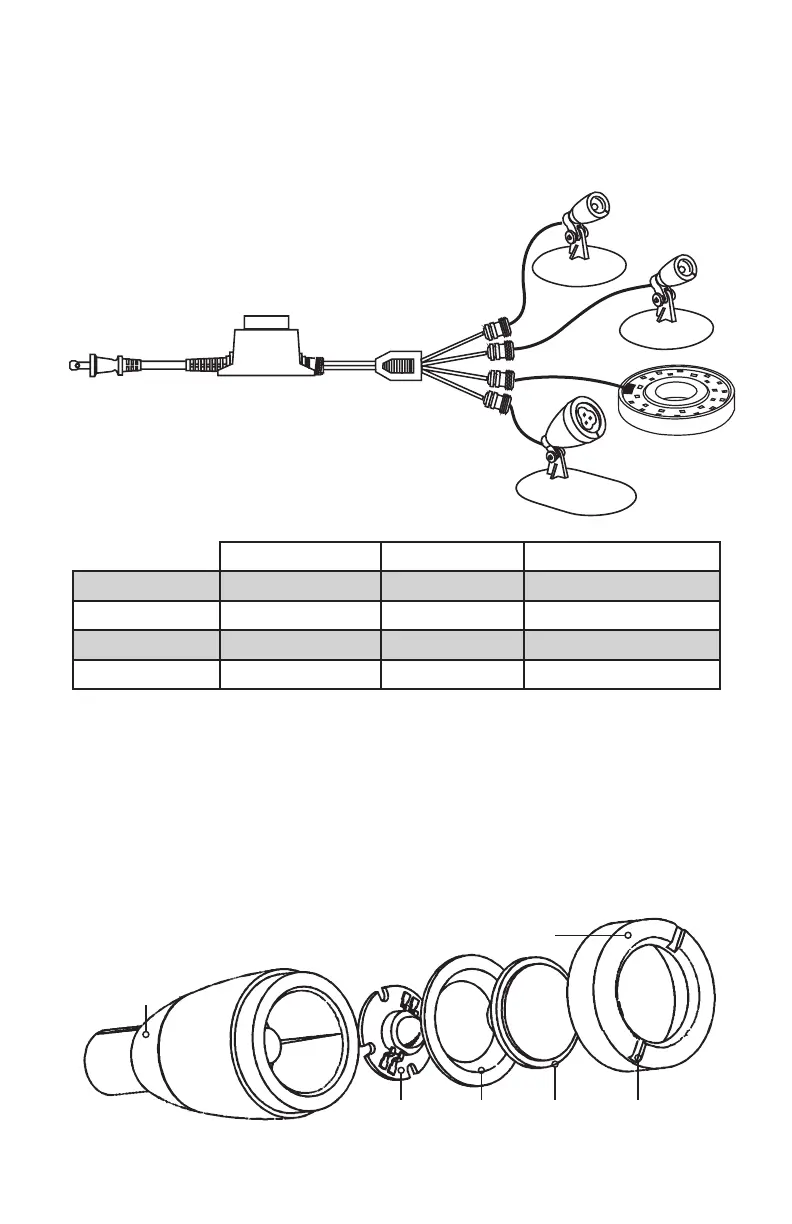

Follow the connecting chart below to connect all cables.
If more lights are required, multiple splitters can be
connected together to create more outlet connections.
A larger transformer is required if additional lights
are installed.
Maintenance
ReplacementLEDBulbsareavailableforSOLSpotlightsandCompactSpotlights.To
loosen and tighten the brass lens ring on SOL Spotlights and Compact Spotlights,
use the included key. Simply place the key in the slots on the brass lens ring to loosen
or tighten. Ensure that all components are installed correctly after servicing. Inspect
the silicone gaskets for defects and proper placement before re-assembling. Ensure
thatthelensringistightlysecuredbeforesubmersingthexture.
SOLW2 SOLW6 SOLWLR
InputVoltage 12voltAC 12voltAC 12voltAC
Watts 2 6 7
BeamAngle 45˚ 45˚ 150˚
Dimensions 2½”Lx1
1
/8”W 3½”Lx2”W 3½”Lx3½”Wx½”H
Brass
Body
Disc Lamp Gasket Lens Slot
Brass Lens Ring
SOLW2:
SOLWLR
Transformer
SOL20X4
SOLW2
SOLW6
