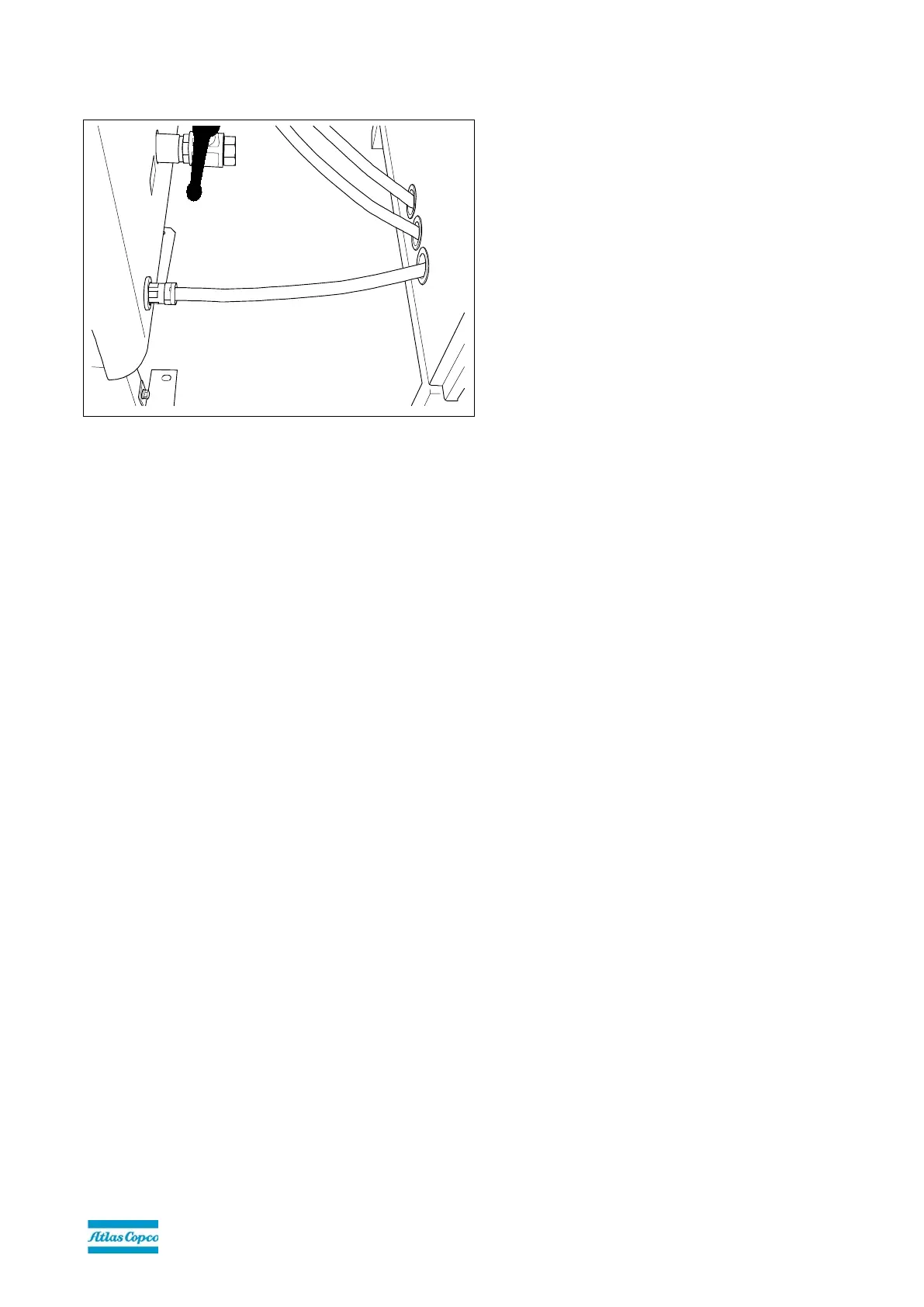

Figure 9: View on rubber grommets in side panel
Install 3 split grommets in the drilled holes to prevent the flexible hoses (2x) and the conduit gland (1x) from getting
damaged by burrs in the holes (see Figure 9).
