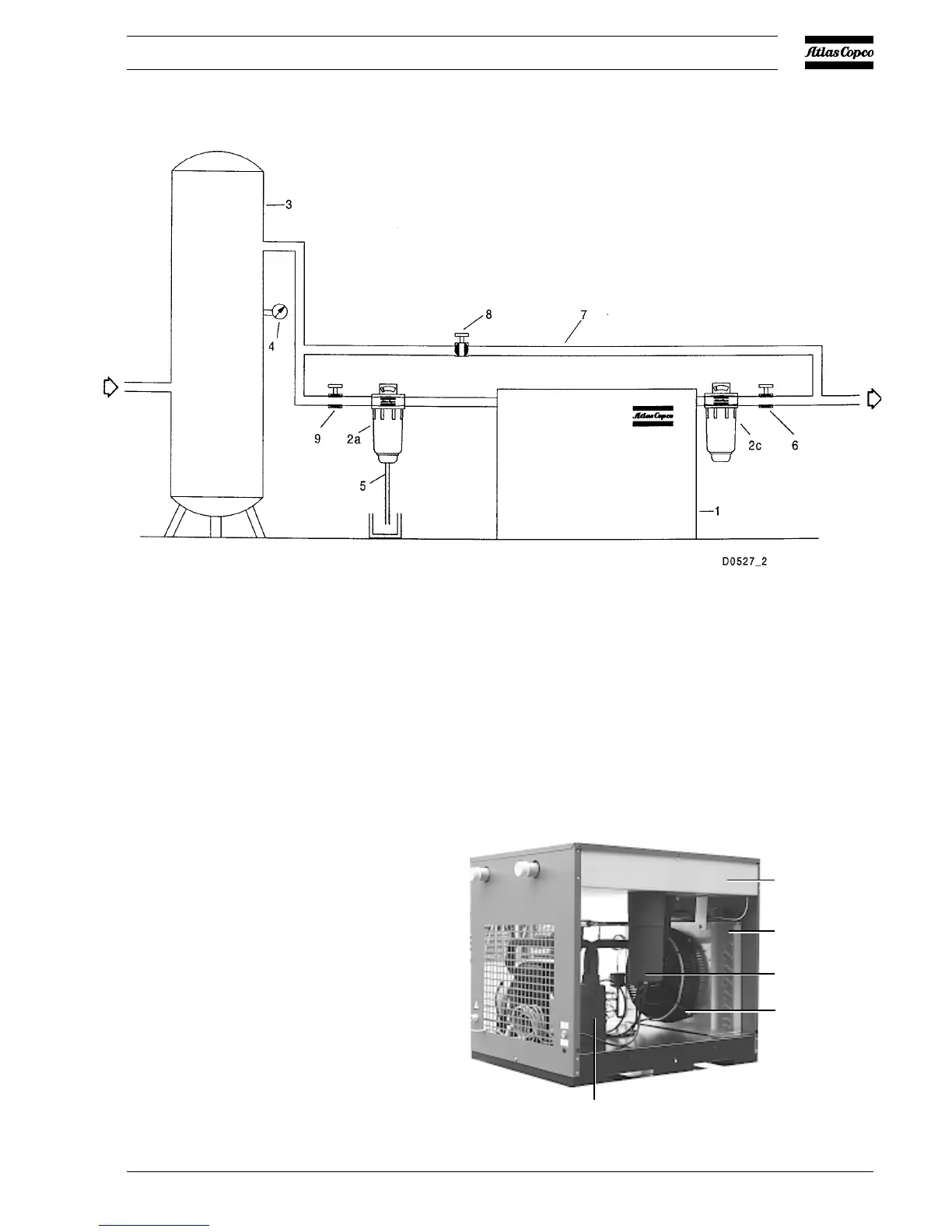

2.2 Installation proposal (Fig. 2.3)
1. FD dryer
2a. DD-type general-purpose prefilter
2c. PD-type afterfilter
3. Air receiver with condensate drain
4. Pressure gauge
5. Drain pipe
6. Dryer outlet valve
7. By-pass system
8. By-pass valve
9. Dryer inlet valve
Fig. 2.3 Installation proposal
1. Insulating block with heat exchangers
2. Condenser
3. Condensate separator
4. Condenser cooling fan
5. Accumulator
Fig. 2.4 Side view
1
3
2
4
5
