Atlas Copco FD300 User Manual

2920 1351 01
7
Instruction book

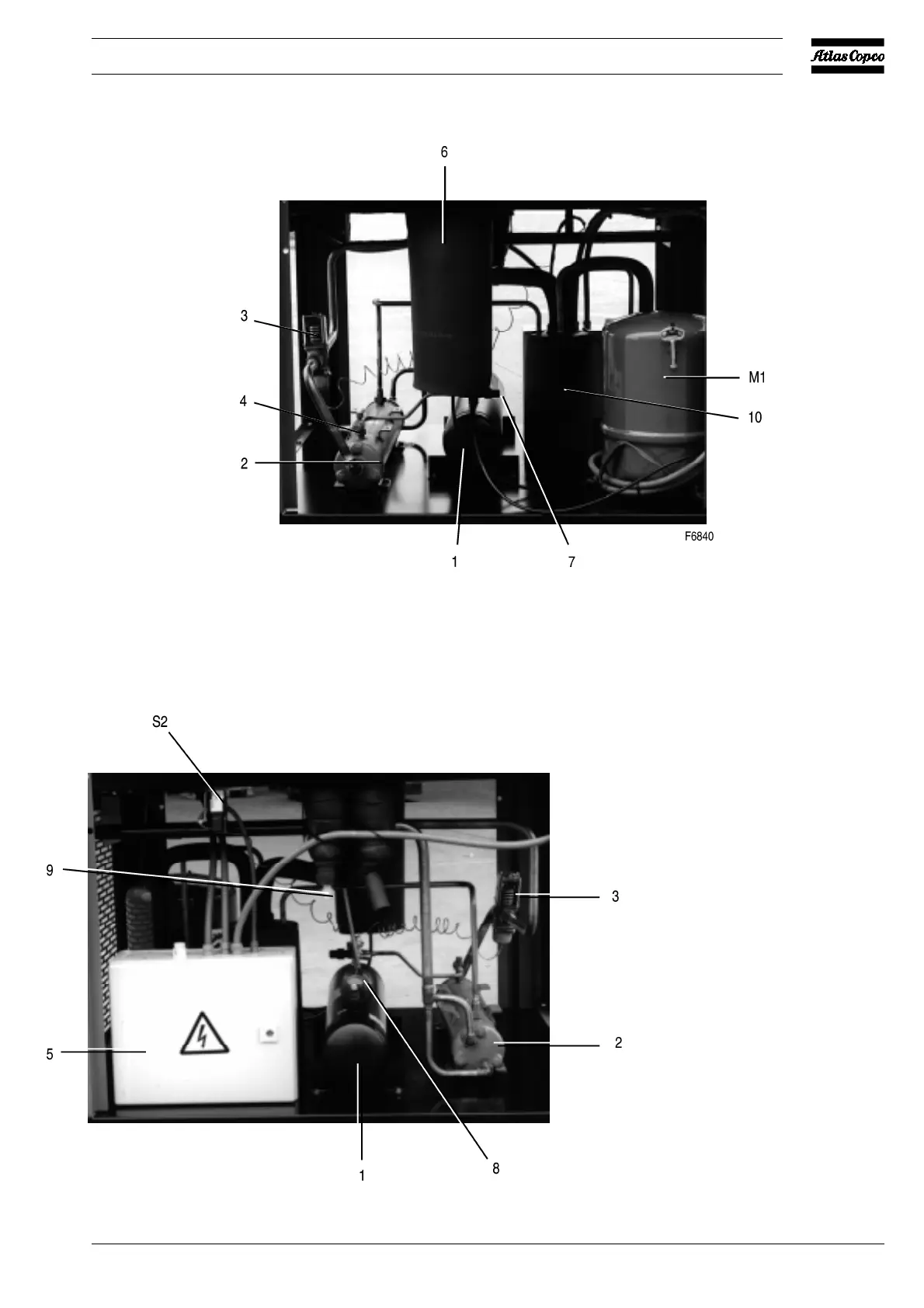

Fig. 5a
Fig. 5b
M1. Refrigerant compressor/motor
S2. High pressure shut-down switch
1. Liquid refrigerant receiver
2. Condenser
3. Flow regulating valve
4. Refrigerant shut-off valve
5. Electric cubicle
6. Condensate trap with automatic
discharge
7. Refrigerant shut-off valve
8. Refrigerant dryer/filter
9. Refrigerant expansion valve
10. Liquid separator
Figs. 5. Side views of FD380 W
F6841
