2920 1351 01
14
Instruction book

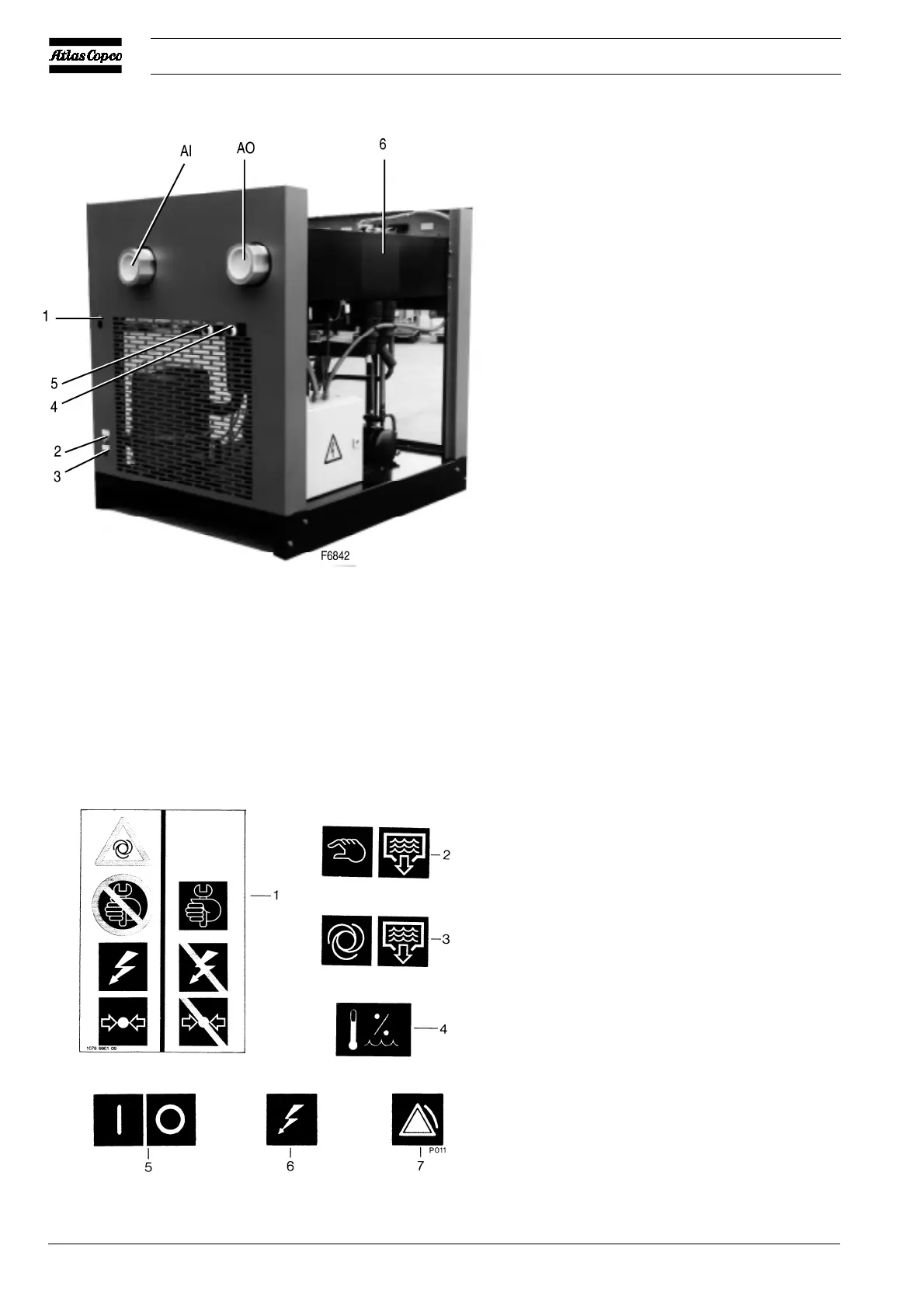

2.4 Pictographs (Fig. 9)
AI. Air inlet connection
AO. Air outlet connection
1. Cable gland
2. Manual condensate drain
3. Automatic condensate drain
4. Water inlet, condenser
5. Water outlet, condenser
6. Insulating block with heat exchangers
Fig. 8. FD380 W
1. Switch off and depressurize the dryer before
starting maintenance or repairs
2. Manual condensate drain
3. Automatic condensate drain
4. Pressure dewpoint
5. Dryer on-off
6. Voltage on
7. Dewpoint alarm
Fig. 9. Pictographs
