2
General description
2.1
Introduction

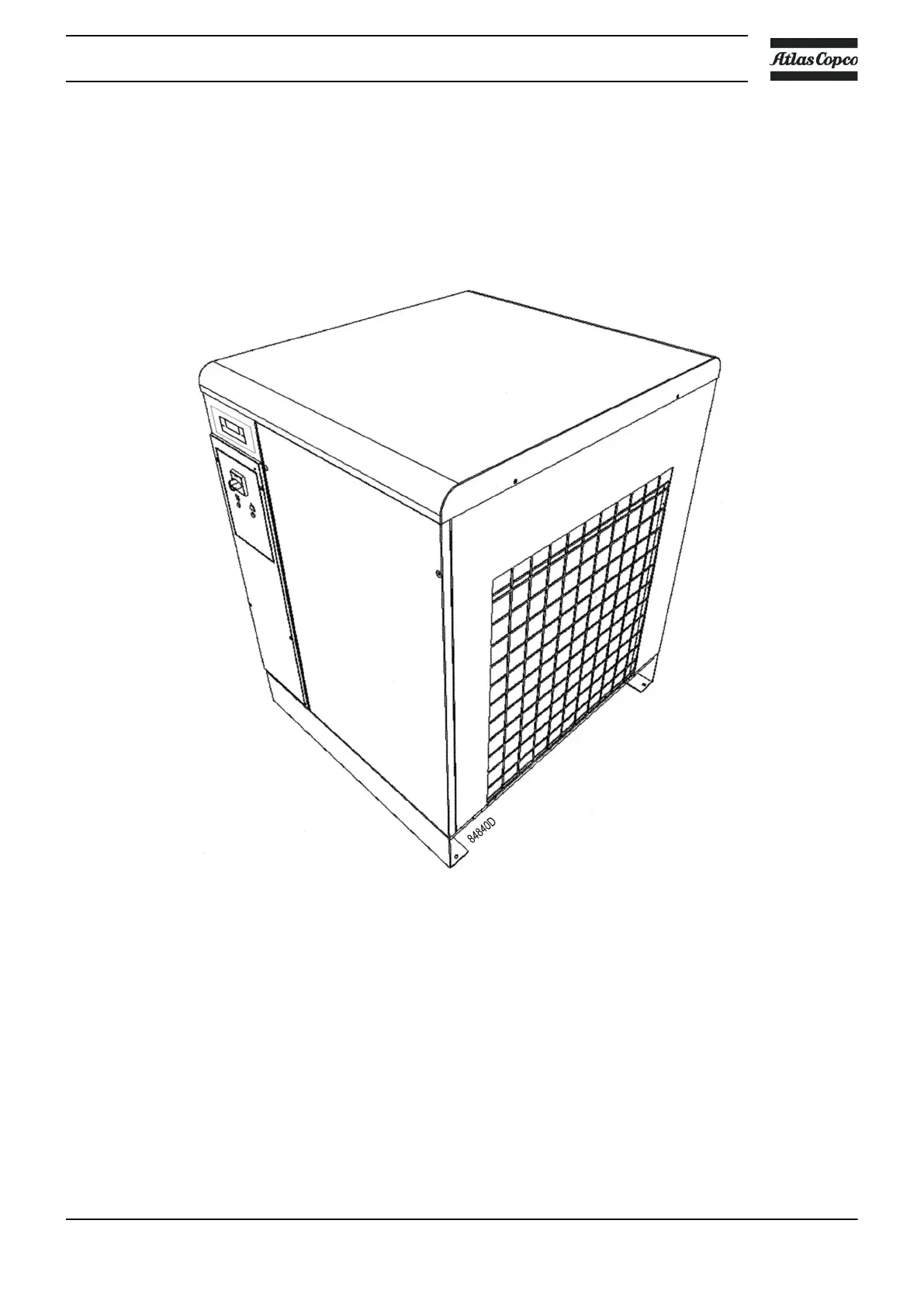

General views
FX 13 up to FX 16
Introduction
The FX air dryers remove moisture from compressed air by cooling the air to near freezing point. This
causes water to condense. The condensate is automatically drained. The air is warmed up before leaving
the dryer.
Instruction book
2920 7112 50
9
10
12
Table of Contents
Table of Contents
4
Safety Precautions
6
Safety Icons
6
Safety Precautions, General
6
Safety Precautions During Installation
7
Safety Precautions During Operation
8
Safety Precautions During Maintenance or Repair
9
General Description
11
Introduction
11
Air System
12
Refrigeration System
13
Automatic Regulation System
14
Electrical System
14
Installation
15
Dimension Drawings
15
Installation Proposal
15
Pictographs
17
Operating Instructions
18
Warnings
18
Control Panel
18
Digital Controller
19
Starting
25
During Operation
26
Stopping
26
Maintenance Instructions
28
Device Settings
29
Problem Solving
30
Technical Data
32
Reference Conditions and Limitations
32
Air Dryer Data
32
Pressure Equipment Directives
34
Declaration of Conformity
35
4
Based on 1 rating
