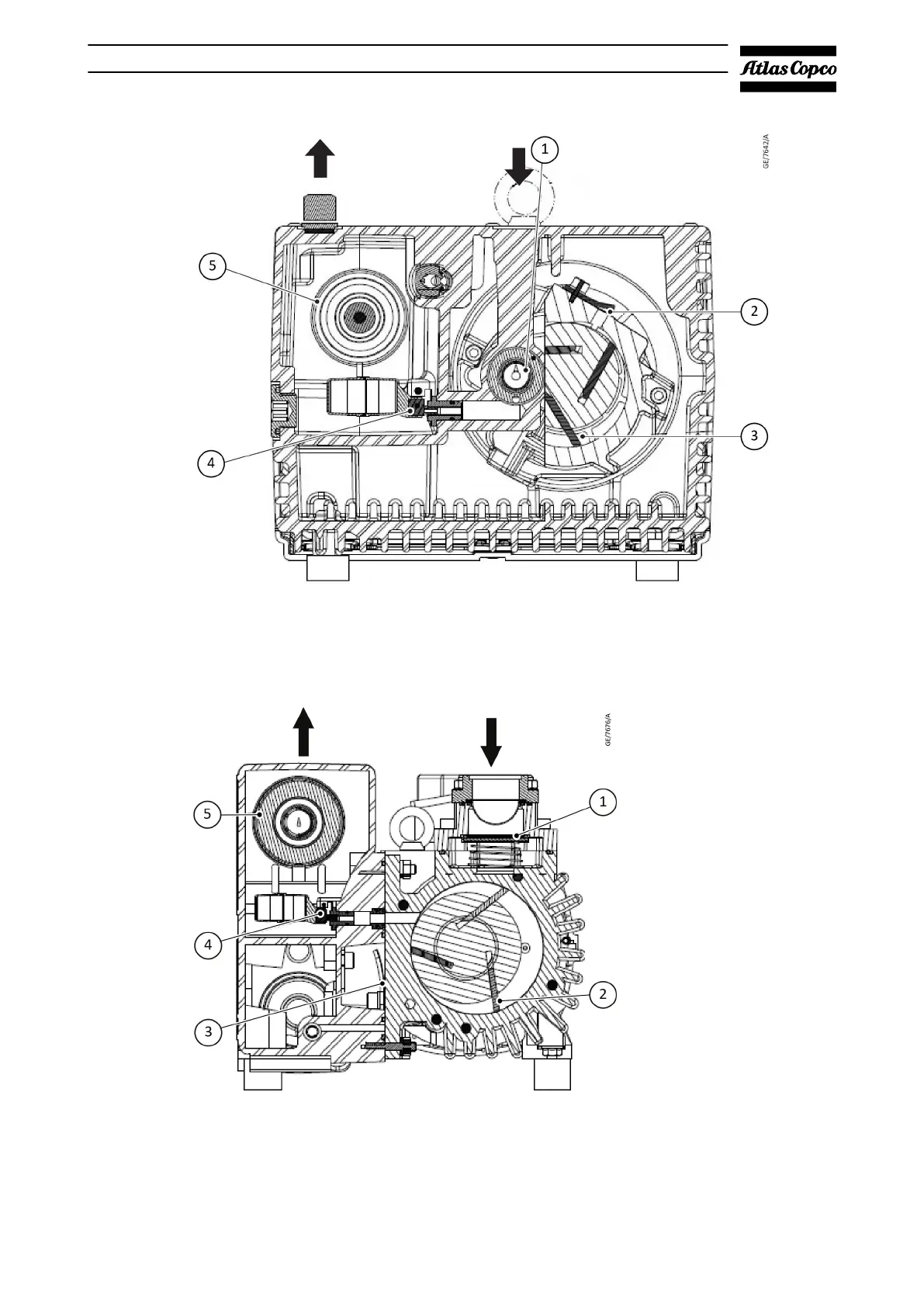

Figure 3 Air flow components - GVS 16A - 25A
1. Inlet non-return valve 2. Exhaust valve
3. Vane (vacuum pump element) 4. Oil recovery valve
5. Exhaust filter element
1. Inlet non-return valve 2. Exhaust valve
3. Vane (vacuum pump element) 4. Oil recovery valve
5. Exhaust filter element
Figure 4 Air flow components - GVS 40A - 300A
1. Inlet non-return valve 2. Vane (vacuum pump element)
3. Exhaust valve 4. Oil recovery valve
5. Exhaust filter element
1. Inlet non-return valve 2. Vane (vacuum pump element)
3. Exhaust valve 4. Oil recovery valve
5. Exhaust filter element
Description
12/2021 - ©Atlas CopcoPage 186996022430_C
