Atlas Copco GX 11 User Manual

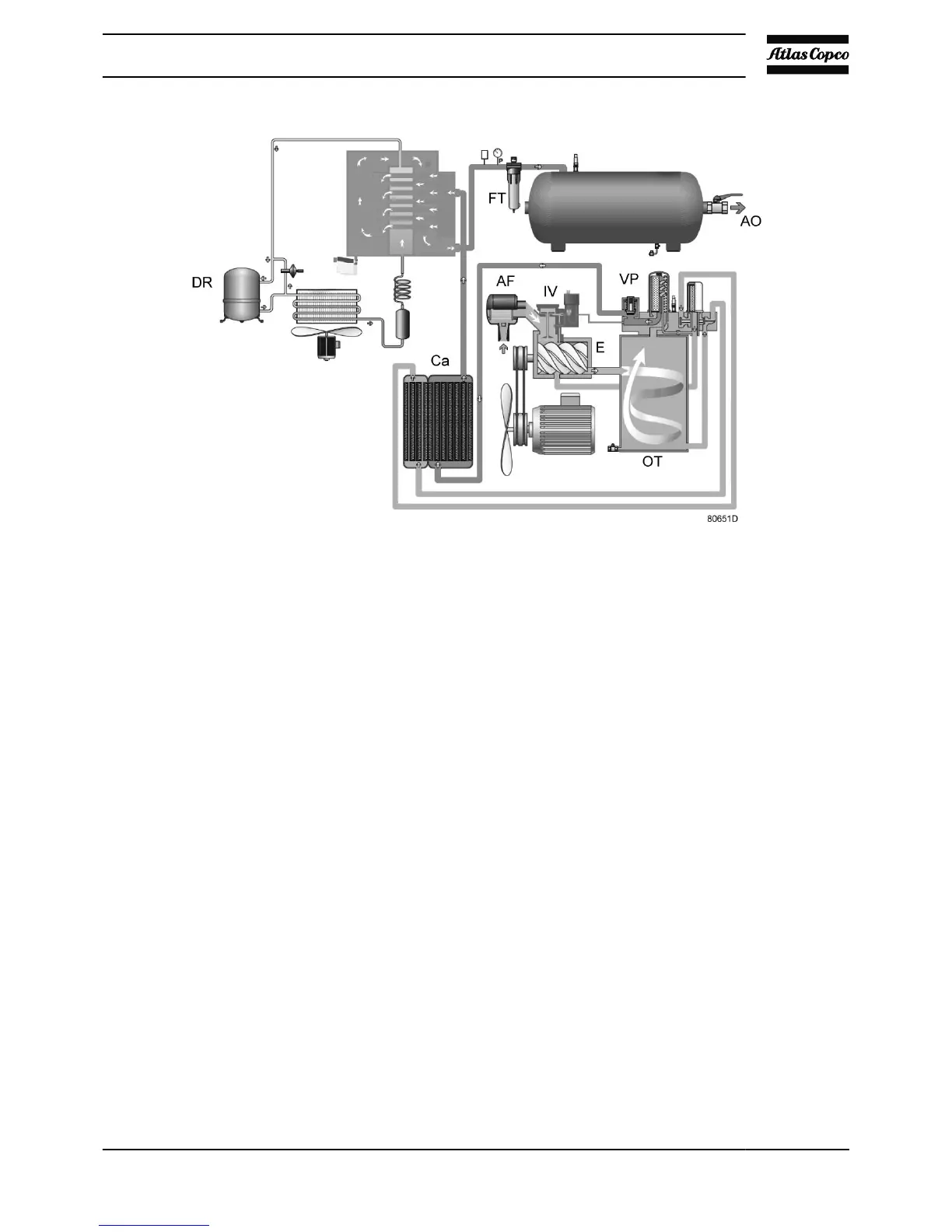

Air flow, GX 7 and GX 11 Full-Feature (tank-mounted)
Air drawn through filter (AF) and open inlet valve (IV) into compressor element (E) is compressed.
Compressed air and oil flow into oil separator/tank (OT). The air is discharged via minimum pressure valve
(Vp), air cooler (Ca) and air dryer (DR) towards the air outlet (AO).
Instruction book
2920 7054 00 13

Atlas Copco GX 11 Specifications

General

Brand	Atlas Copco
Model	GX 11
Category	Air Compressor
Language	English
