IRTT-B User Guide
9836 4436 01 Revision 2010-01 5 (8)

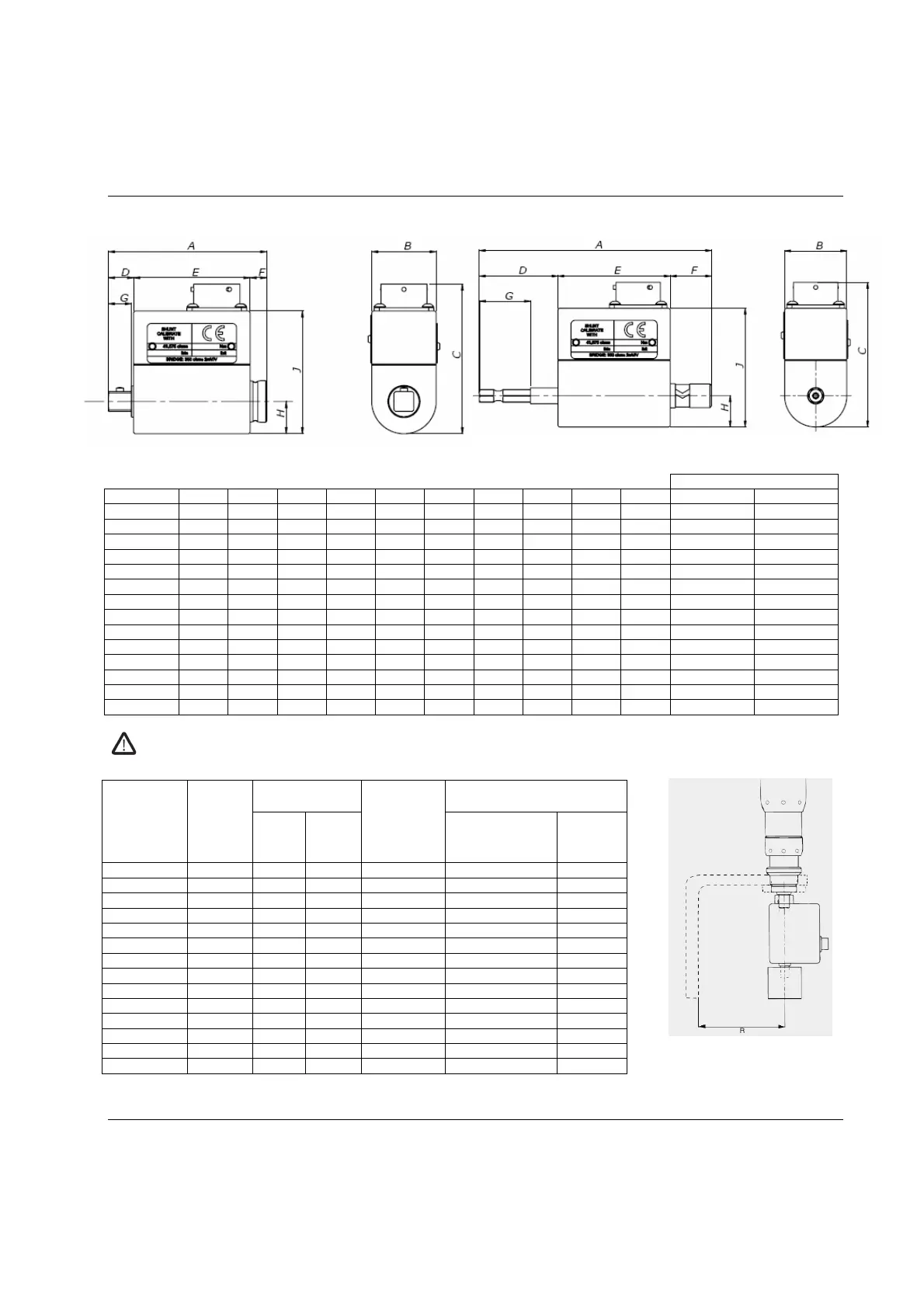

Dimensions:
Weight (grams)
Model Drive A B C D E F G H J with angle without angle
1A-I06
hex
115,8 31 71,9 39,2 56 20,6 25,5 15,5 59 230 -
2A-I06
hex
115,8 31 71,9 39,2 56 20,6 25,5 15,5 59 230 -
5A-I06
hex
115,8 31 71,9 39,2 56 20,6 25,5 15,5 59 235 215
5A-06
square
71,5 31 71,9 9,5 56 6 7,3 15,5 59 220 -
20A-I06
hex
115,8 31 71,9 39,2 56 20,6 25,5 15,5 59 240 220
20A-06
square
71,5 31 71,9 9,5 56 6 7,3 15,5 59 240 225
25A-10
square
76,1 31 71,9 12,1 56 8 11 15,5 59 260 245
75A-10
square
76,1 31 71,9 12,1 56 8 11 15,5 59 260 245
180A-13
square
87 42 82,9 17 58 12 15,2 21 70 460 410
500A-20
square
106 52 92,9 25 66 15 23 26 80 950 890
750A-25
square
125 65 104,9 30 73 22 28 32,5 92 1370 1320
1400A-25
square
125 65 104,9 30 73 22 28 32,5 92 1420 1380
3000A-38
square
165 106 148,5 41,8 88 35,2 39,2 53 136 4550 4500
5000A-38
square
165 106 148,5 41,8 88 35,2 39,2 53 136 4420 4370
WARNING
When using the IRTT-B with a 90° bent reaction bar there is a risk of large side forces, which may damage the transducer, the min. radial
position is measurement R according to the following figure. The ideal solution is to use a straight reaction bar in 90° angle to the IRTT-B.
Maximum RPM Angle Reading Models
Hex. and
square
drive size
Torque
rating
Nm
Continu
ous
Intermi_
ttent
Min. radial
position 1
R
mm
Pulses per Rev. /
Resolution
Degrees
Max. RPM
Angle
1/4" hex. 1 5000 5000 50 180 / 0.5 2500
1/4" hex. 2 5000 11000 50 180 / 0.5 2500
1/4" hex. 5 5000 11000 50 180 / 0.5 2500
1/4" sq. 5 5000 11000 100 180 / 0.5 2500
1/4" hex. 20 5000 11000 100 180 / 0.5 2500
1/4" sq. 20 5000 11000 100 180 / 0.5 2500
3/8" sq. 25 2500 10000 50 180 / 0.5 2500
3/8" sq. 75 2500 10000 150 180 / 0.5 2500
1/2" sq. 180 2500 7600 180 180 / 0.5 2500
3/4" sq. 500 2000 5000 240 180 / 0.5 2000
1" sq. 750 1000 4400 190 180 / 0.5 1000
1" sq. 1400 1000 4400 350 180 / 0.5 1000
1 ½" sq. 3000 1000 4400 600 360/0.25 4400
1 ½" sq 5000 1000 4400 600 360/0.25 4400
Square Drive
Hexagon Drive
