2920 1257 04
5
Instruction book

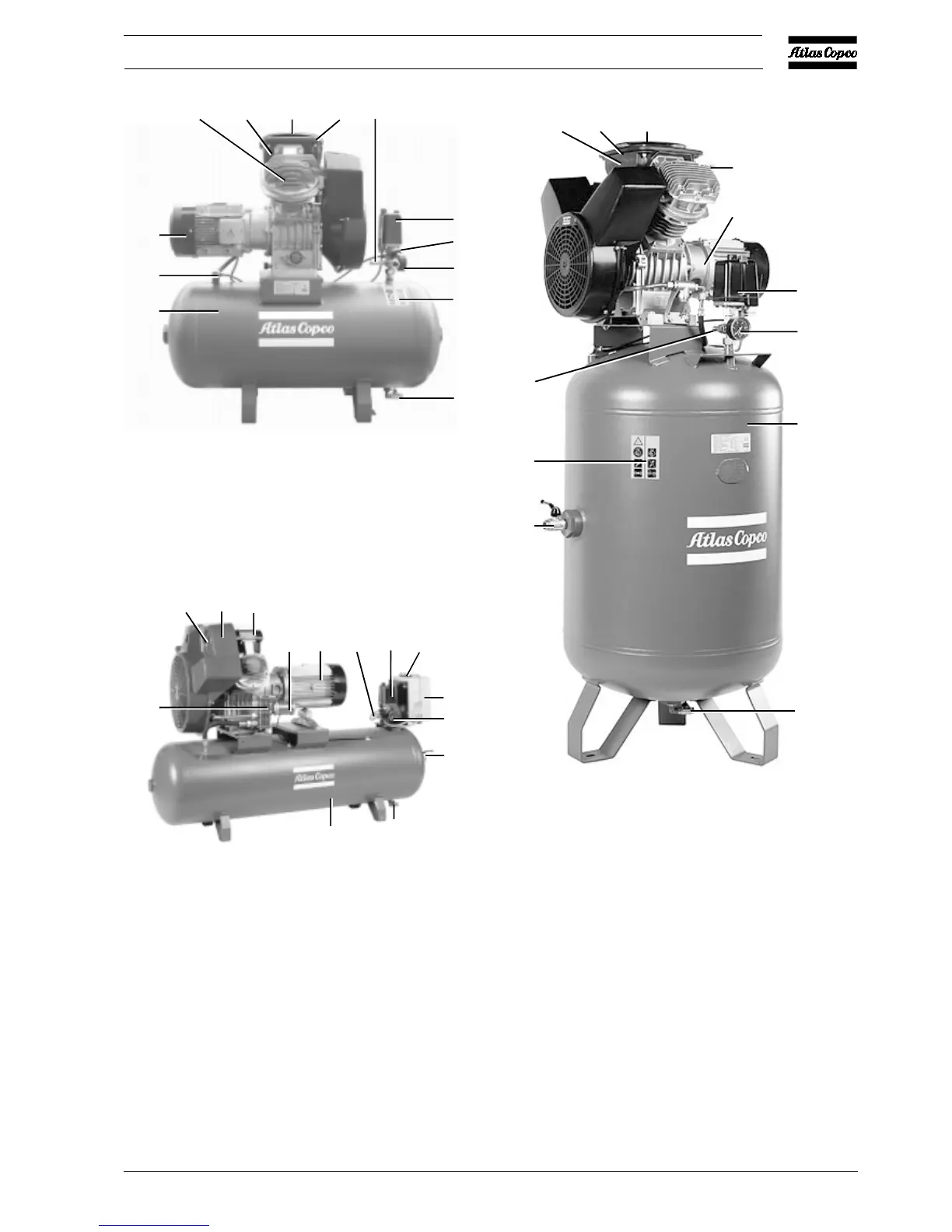

Fig. 1.4 Complete Unit, LT15/22, horizontal receiver
(standard receiver is 120l)
Fig. 1.5 Complete Unit, LE/LT15/22/40, vertical receiver
(standard receiver is 250l)
Fig. 1.6 Complete Unit, LE/LT75 60 Hz, LF75 and
LE/LT110-150 (standard receiver is 250l)
AC Air cooler
AF Air filter
AR Air receiver
AV Air outlet valve
CV Check valve
Dm Condensate drain valve
FC Filler cap
FN Fan
Gp Air pressure gauge
M Motor
P1 Hourmeter, running time
SV Safety valve
Y1 Loading solenoid valve
1 Cover
2 Blow-off silencer
3 Air inlet silencer
4 Dewpoint indicator
5 Cooling pipe
6 Electric cabinet
7 Unloader
8 Relief valve
9 Pictograph, switch off voltage and
depressurize before maintenance or repair
10 LP cylinder
11 HP cylinder
12 DD filter
13 Air pressure switch with on/off switches
14 PD filter
15 CD dryer
Figs. 1.4 up to 1.9 General views
10
3
1AF
SV
13
AV
Gp
9
Dm
M
CV
AR
50950F
7
1AF
3
2
M
Y1
13
P1
6
Gp
AV
AR
Dm
50952F
Dm
9
AV
SV
AR
Gp
13
M
8
1
AF
3
50951F
